Russound ACA-E5 Installation Manual
SPEAKER OUTPUTS

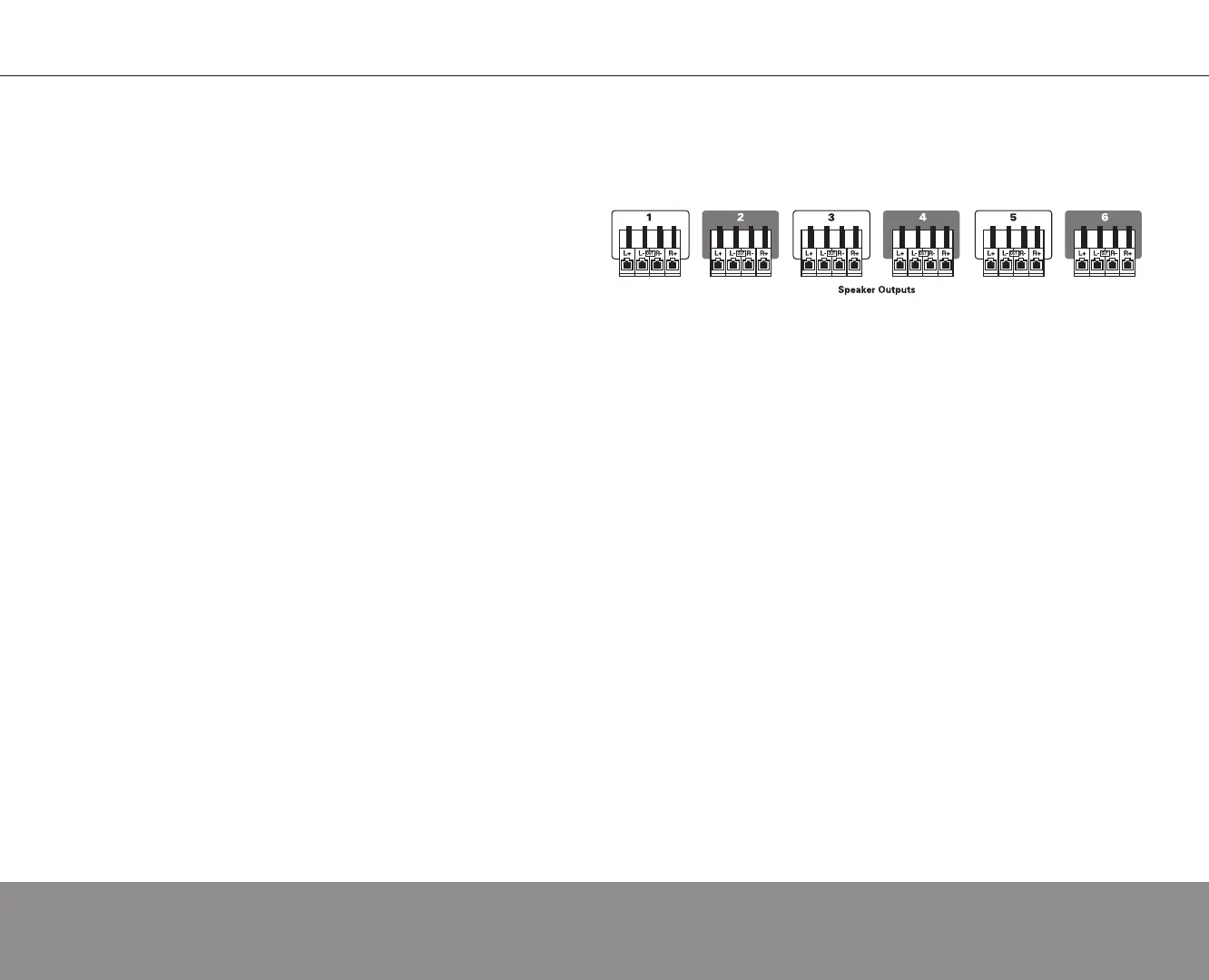

SPEAKER OUTPUT CONNECTIONS
CAUTION: Do not connect L- and R- together. Use four-conductor cable
and wire each ground individually. Do not use a common ground. Shorting
between terminals will cause damage to the digital amplifier.
The ACA-E5 supports speaker outputs for zones 1 through 6. These stereo
speaker level outputs have high-current two-channel digital amplifiers for 40
watts per channel. Each speaker connection requires a 4 to 8-ohm load.
The speakers are connected to the ACA-E5 using modular snap speaker
connectors. Each of these color coded connectors is designated for the
speaker set of a particular amplified zone. To avoid confusion, connect one
zone speaker set at a time starting with Zone 1, taking care to keep zone and
speaker wire identities straight.
Lift the black lever for each connection until it locks open and insert the
proper speaker wire, matching channel and polarity for all four wires. Snap
the lever down. Insert the modular connector into its designated output on the
back of the ACA-E5.
For audio output to zones 7 and 8, RCA line outs or RNET A/V RJ45
outputs can be used. These are set as fixed or variable output through SCS-
E5 software. (See pages 38-39 for connection details)
