Russound ACA-E5 Installation Manual
43
AM4-E5 A-BUS MODULE
Room
speakers
Speaker cable
Speaker cable
Room
speakers
CAT-5 cable
CAT-5 cable
ACA-E5 controller
A-K5L keypad
A-K5L keypad
A-K3 keypad
A-PS4 power supply

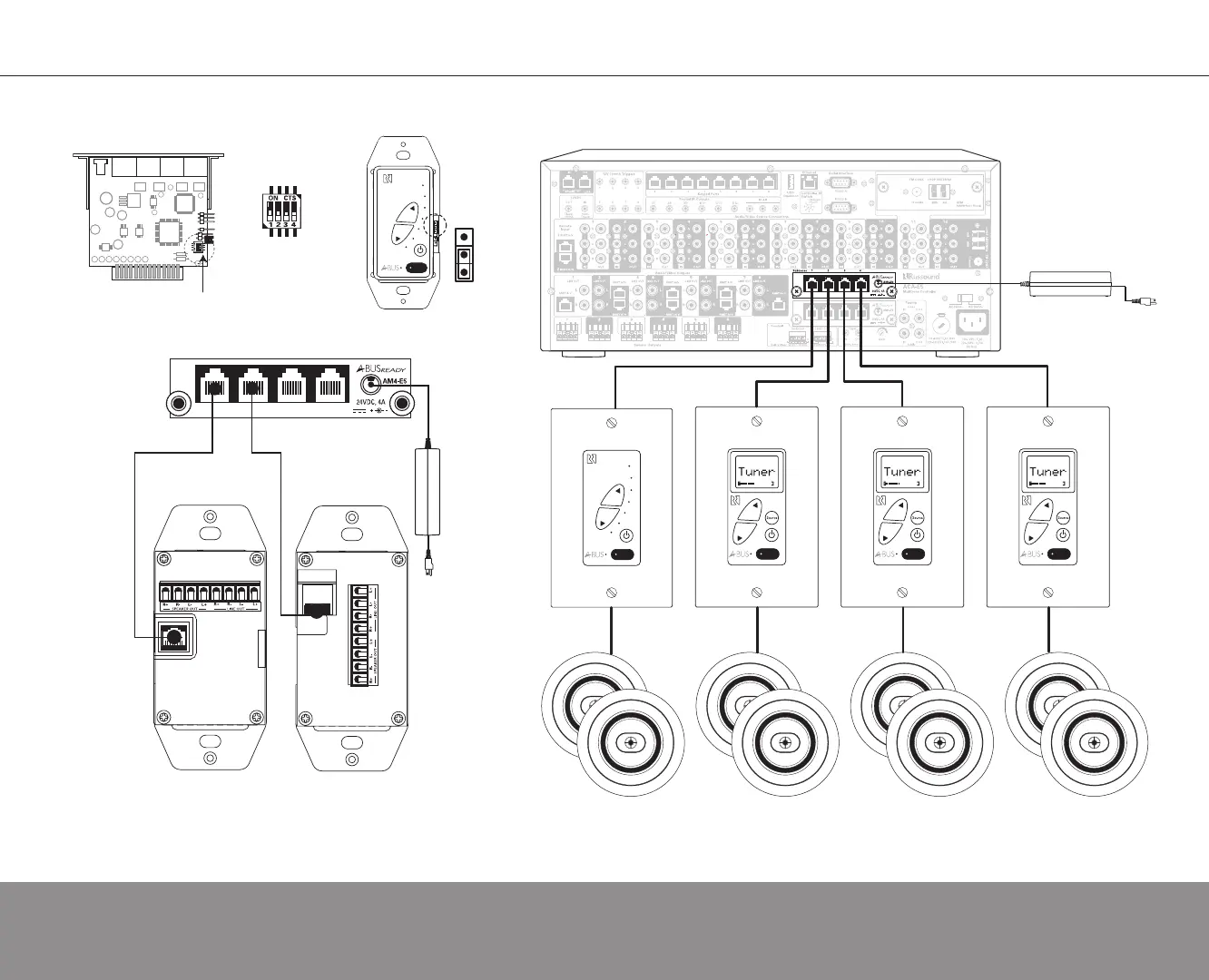

AM4-E5 A-BUS keypad connections
and dip switch settings
AM4-E5 shown installed in ACA-E5 controller
with A-BUS keypads connected
A-K5L (back)
Keypad dip switches
CAT-5
cable
Keypad #1 - OFF for A-K5L
Keypad #2 - OFF for A-K3
Location of
dip switches
AM4-E5 module
A-PS4 24VDC 4A
power supply
CAT-5
cable
ON
OFF
HUB
UPGRADE
L GAIN R
A-K3 (back)
Hub
A-K3
source
jumper
set for 6
sources
A-K3 keypad
AM4-E5 module
(installed in ACA-E5)
