8
Russound ACA-E5 Installation Manual

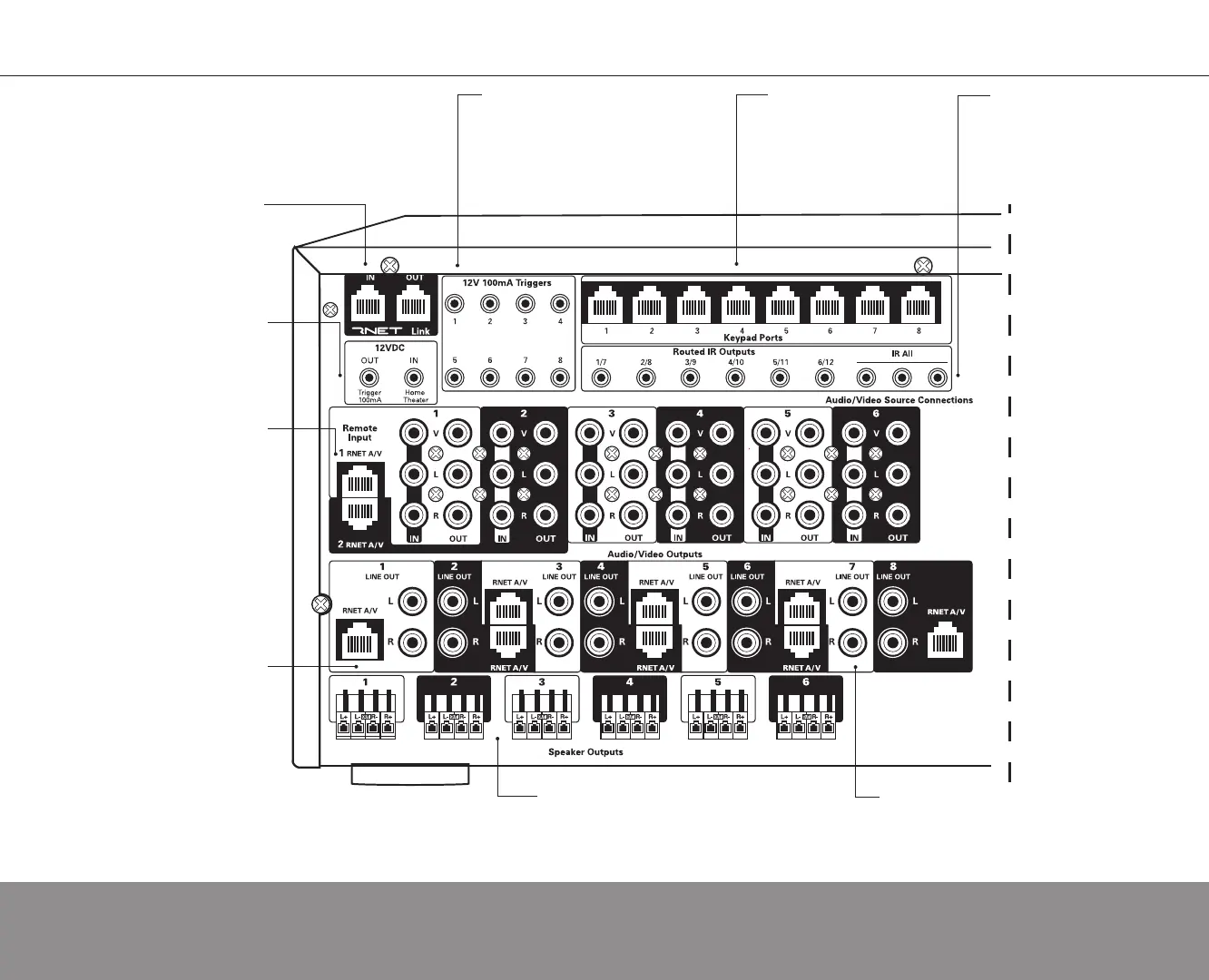

ACA-E5 REAR PANEL
RNET Link
Links multiple controllers
and RNET sources
Page 12
Speaker Outputs
Connect 4-8 Ohm speakers for
each of the first six zones
Page 26
Keypad Ports
RJ45 connection for
room keypad
Page 16
IR Outputs
6 routed, 3 common
IR output jacks
Page 22
Room 12V Triggers
12VDC 100ma ready when
corresponding room is active
Page 20
A/V Remote Input
RNET A/V input from remote
source over CAT-5/5e cable
Page 30
12V Triggers
Home Theater Trigger In and
system on Trigger Out
Page 40
A/V Remote Output
RNET A/V output to remote
output over CAT-5/5e cable
Page 38
Audio Outputs
Eight line-level audio outputs
(fixed or variable) for each zone
Page 38
To Next Page
