Figure 6-10

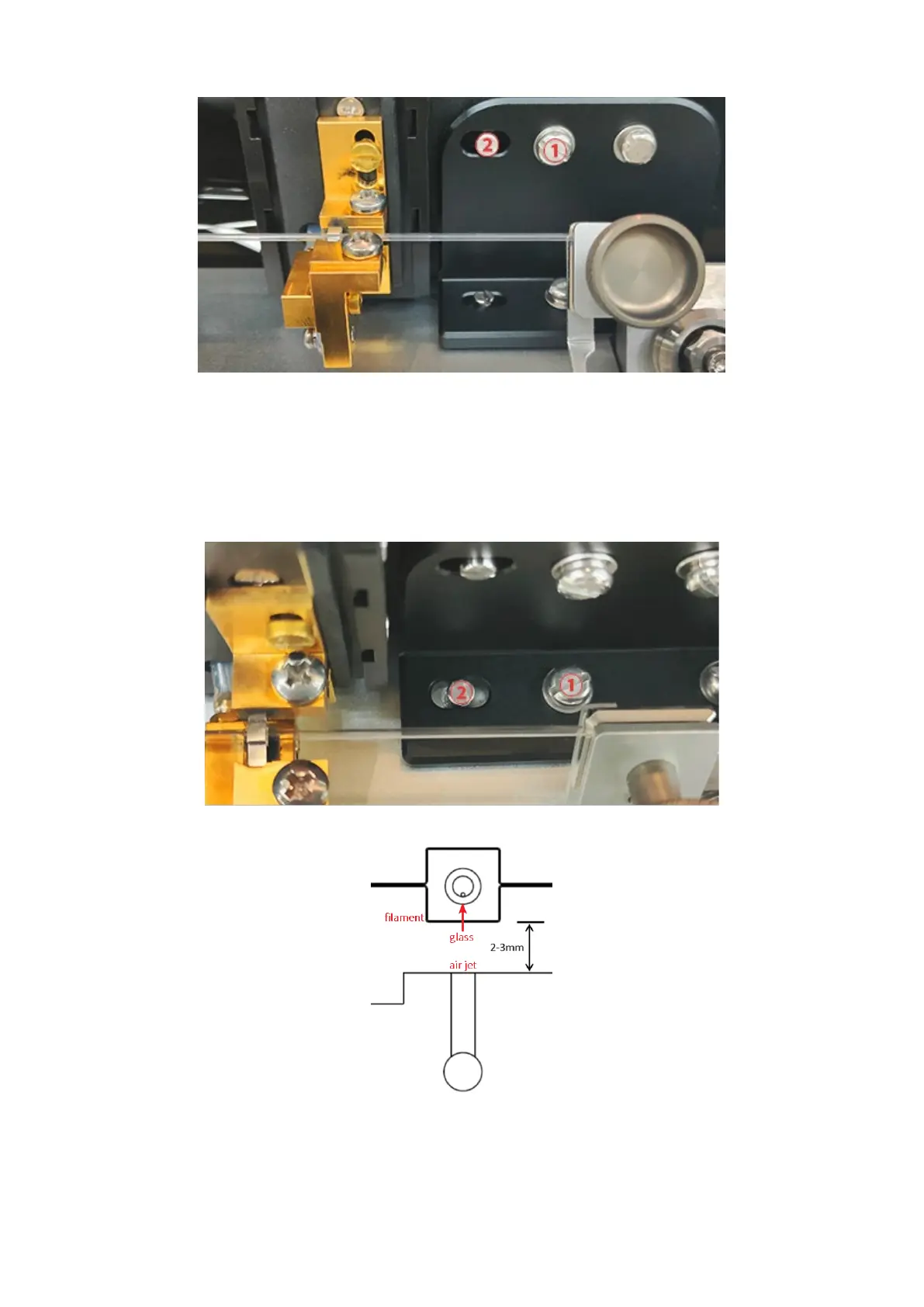

12) If the glass is not horizontally centered, loosen the screw ① and turn the screw ② to
finely adjust horizontally until the glass is centered in the filament, as shown in Figure 6-11.
Finally, the relative positions of the heating filament, the glass, and the air jet opening are shown
in Figure 6-12.
Figure 6-11
Figure 6-12
