1) Pressure diagnosis
Pressure diagnosis is to check whether the air pump runs, whether the air valve is normally
opened and closed, and whether there is air leakage.

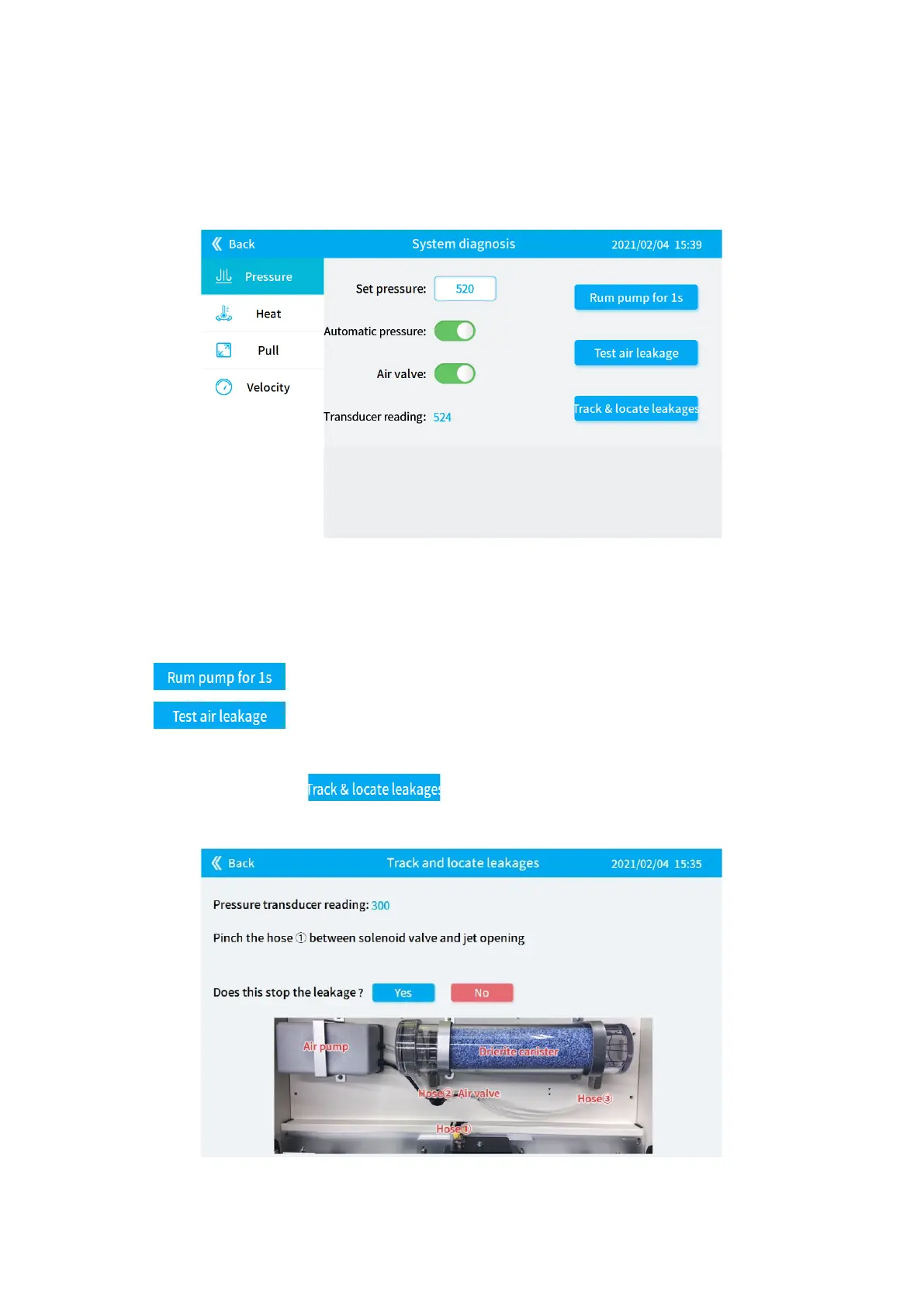

Figure 4-18
Set pressure, the value range is 1-999, turn on [Automatic pressure], the air circuit will
automatically run to the set pressure; Turn on [Air valve] to turn on the switch of the jet air valve.
Click to check if the air pump runs;
Click , the system will run an automatic diagnostic program to check whether
there is air leakage;
If there is air leakage, click to enter the interface as shown in Figure 4-19, and
follow the prompts on the interface to locate leakages.
Figure 4-19
