Ryobi RM480e - Installing the Seat; Connecting the Battery

WARNING
Strictly adhere to all torque wrench
tightening specications. Failure to do so
could cause serious personal injury.
WARNING
Do not attempt to modify the product or
create accessories not recommended for
use with the product. Any such alteration or
modication is a misuse and could result in
a hazardous condition leading to possible
serious personal injury.
WARNING
To prevent accidental starting that could
cause serious personal injury, always
remove the start key from the product when
assembling the parts.

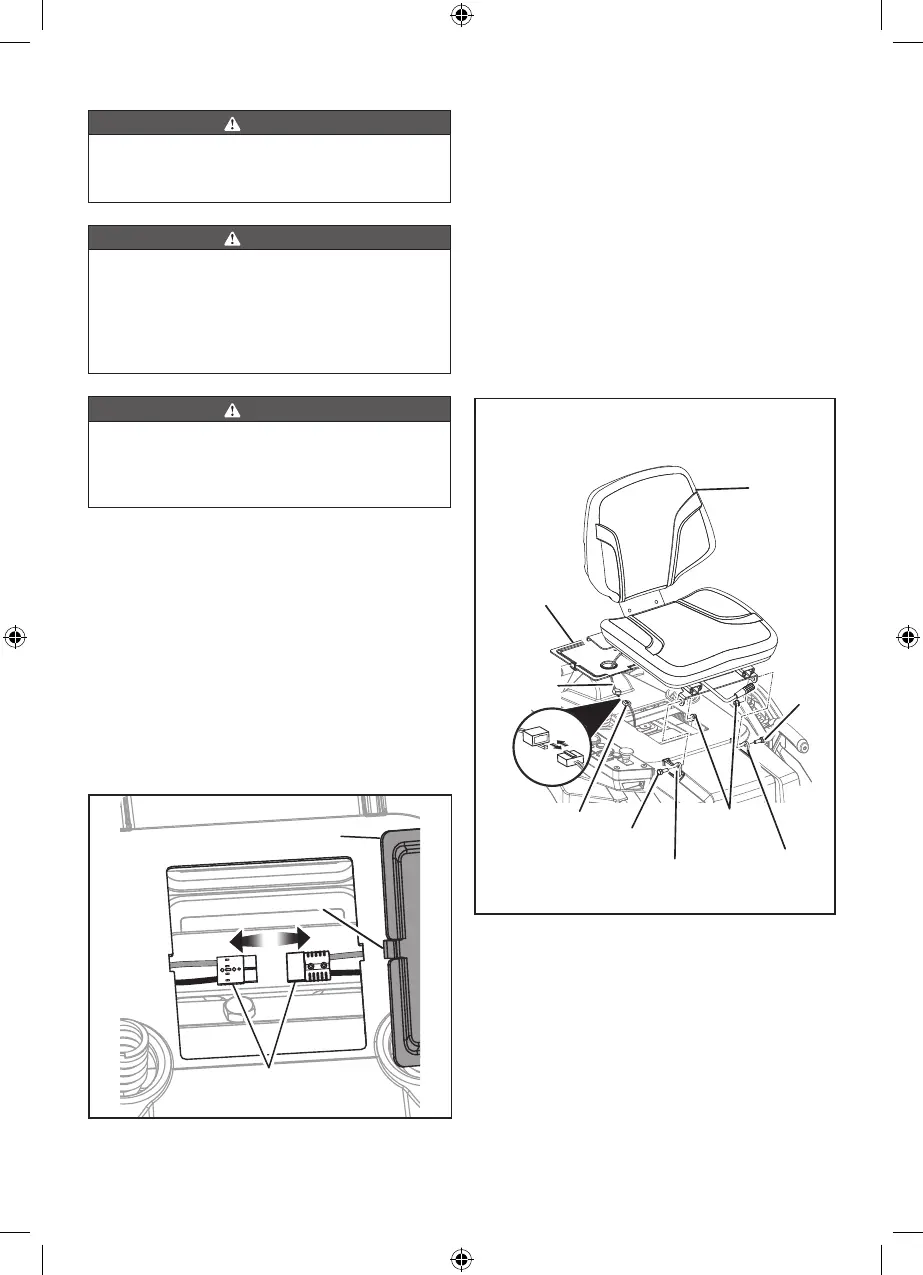

CONNECTING THE BATTERY
See fig. 1
When shipped from the factory, the mower’s
batteries are disconnected.
To connect:
1. Press the tabs on the wiring cover, and lift
the cover to remove it.
2. Connect the two ends of the battery
quick-connect plug together.
NOTE: Before reinstalling the wiring cover,
install the seat as described in the next section.
BATTERY QUICK-
CONNECT PLUG
TAB
WIRING
COVER
INSTALLING THE SEAT
See fig. 2
1. Remove the bolts and flange nuts from
the seat mounting brackets.
2. Place the seat assembly over the
mounting brackets and align the holes as
shown.
3. Reinstall and securely tighten the bolts
and flange nuts.
4. Route the seat safety interlock cable
through hole in wiring cover, then connect
it to the plug on the product.
5. Reinstall the wiring cover and
ensure that it is securely seated.
SEAT
ASSEMBLY
BOLT
PLUG
BOLT
FLANGE
NUT
MOUNTING
BRACKET
MOUNTING
BRACKET
WIRING
COVER
SAFETY
INTERLOCK
CABLE
Fig 2
Fig 1
15
