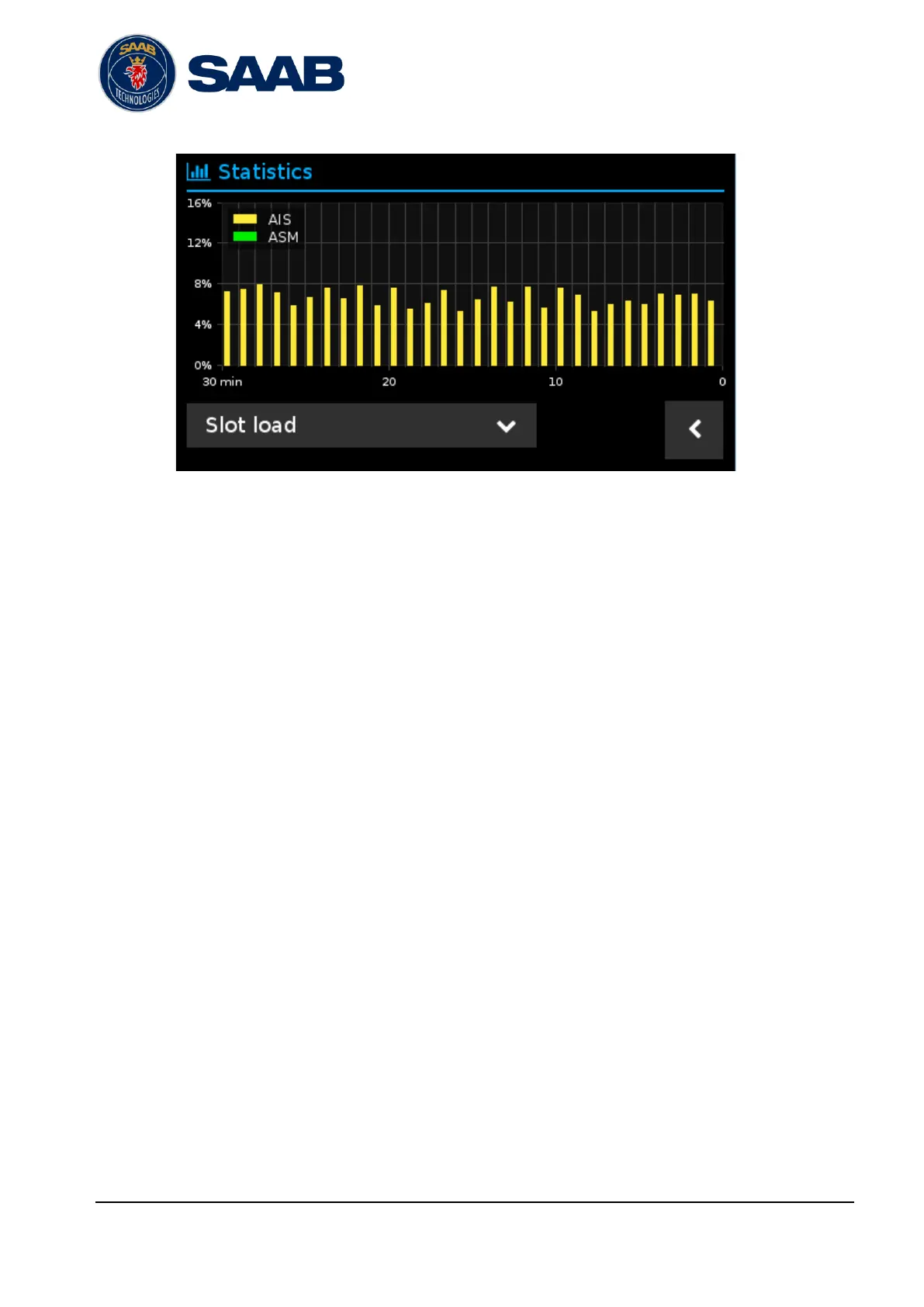

Figure 2-2: Statistics view
2.2.4.1 Slot load
This chart shows current slot load in percent over the last 30 minutes for AIS and ASM
respectively.
2.2.4.2 Own slots
This chart shows own transmissions in percent over the last 30 minutes for AIS and
ASM respectively.
2.2.5 Alarms
This page displays current alarm status of the base station. See section 5.2 for a
detailed description of the available alarms.
