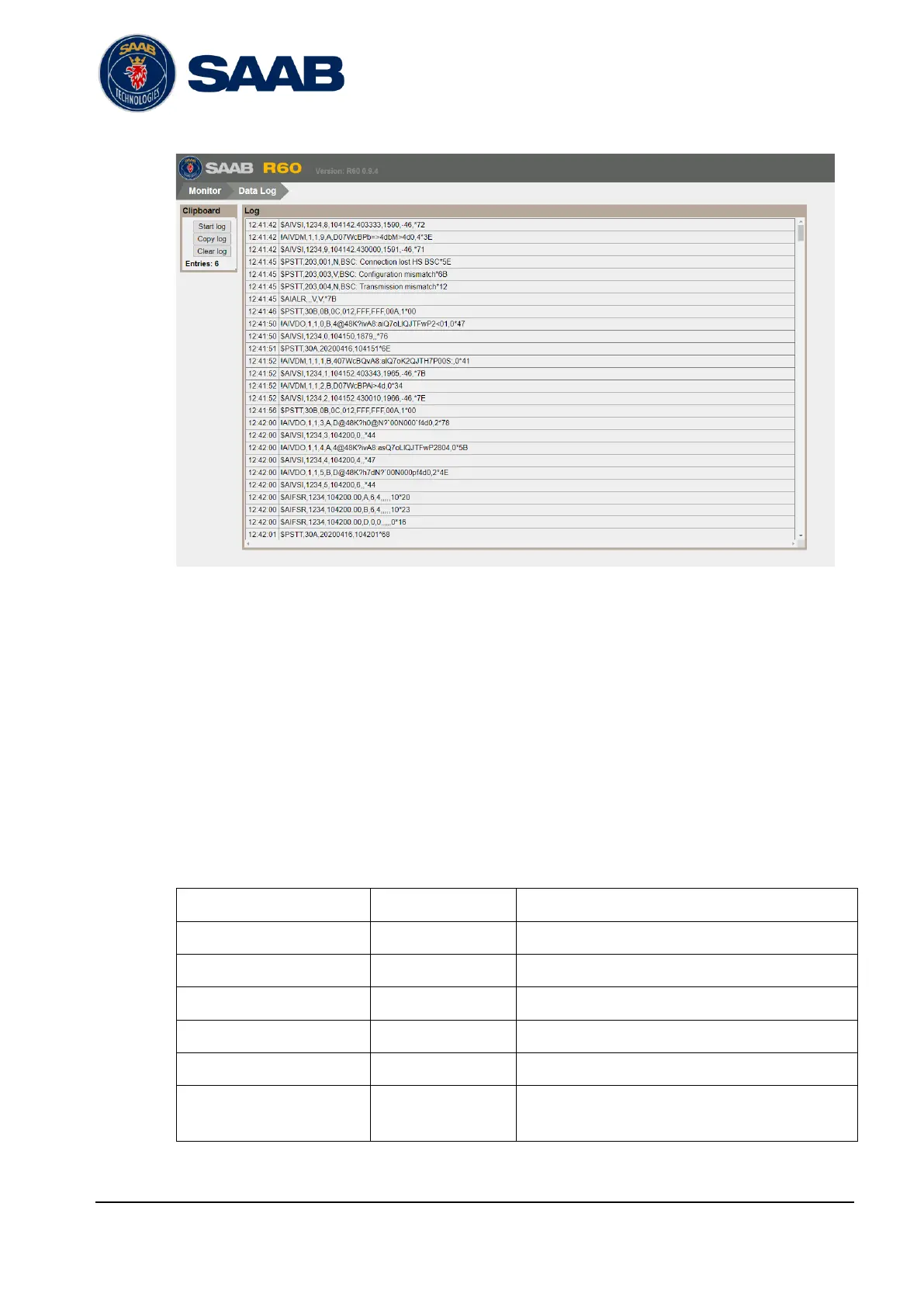

Figure 5-2: Monitoring Data Log page.
5.6 Monitor > VDL Link Map
In the Monitor category main page, select the VDL Link Map sub-category to monitor
transmissions and reservations from all the current VDL users (including the R60 unit
itself), presented in a grid representing the slots. See page example in Figure 5-3.
5.6.1 Information Panel
Displays the information of the currently selected slot. E.g. in Figure 5-3 slot number
1370 has been selected on channel AIS B.
Table 6: VDL Link Map information panel fields
Field
Shown for
Description
Slot Nr
Both
Slot number for currently selected slot.
Channel
Both
Channel for currently selected slot.
Message MMSI
Transmissions
MMSI of message in selected slot.
Telegram Id
Transmissions
Telegram id of message in selected slot.
Reservation Owner
Reservations
Owner of reservation.
Reservation Timeout
Reservations
Time until reservation times out in
minutes and seconds.
