Saab TankRadar PRO - Free Space Requirements

Saab TankRadar
®
ProMechanical Installation
2-2
Edition 2. Ref. No: 306010E
Service space (mm): • Cone antenna: 650 • Rod antenna: 700 • Process Seal antenna: 800 • Parabolic antenna: 700
Maximum angle:
• Cone antenna: 1°
• Rod antenna: 3°
• Process Seal antenna: 3°
• Parabolic antenna: 0.5°
Minimum distance (m):
• Cone antenna: 0.6
• Rod antenna: 0.3
• Process Seal antenna: 0.6
• Parabolic antenna: 0.6
Service space 550 mm

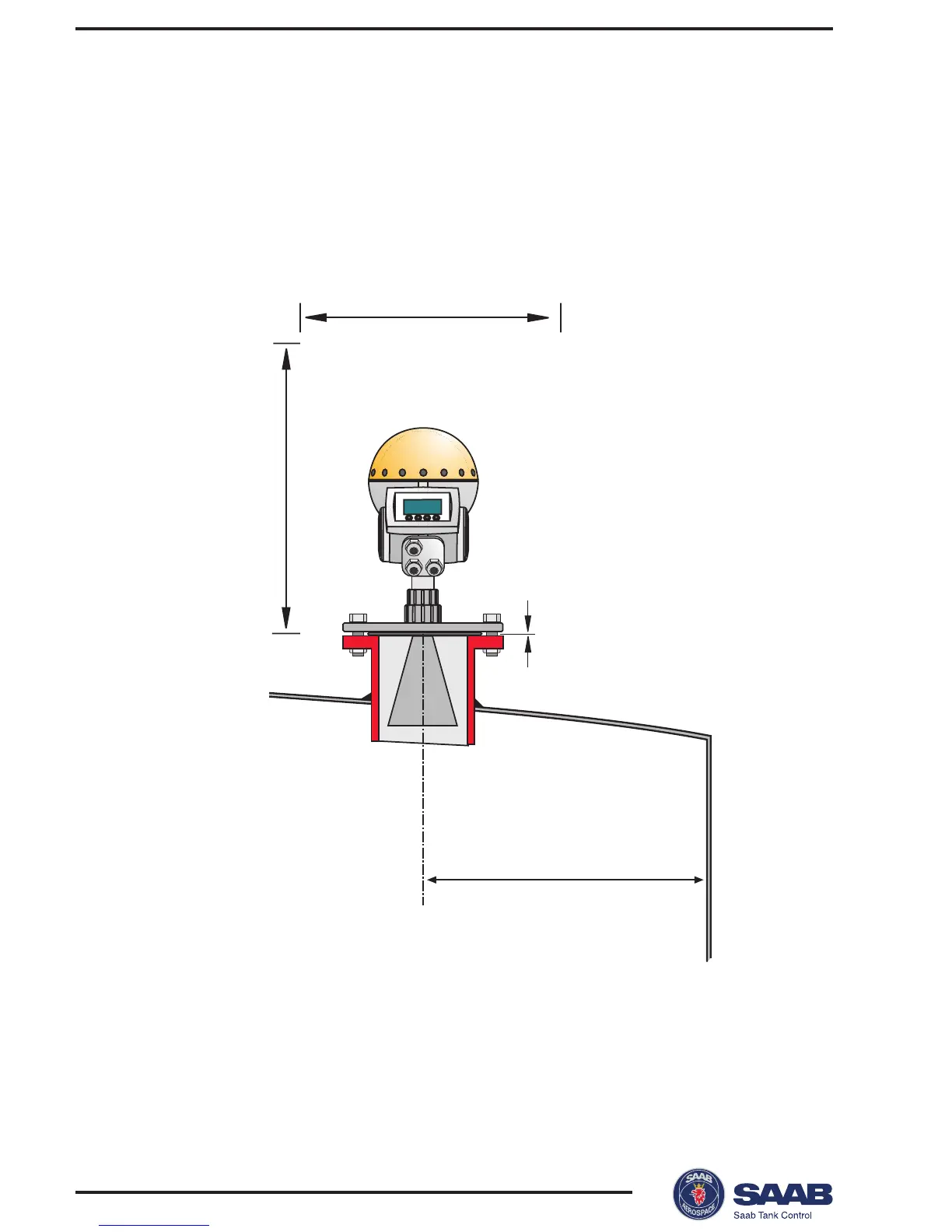

Free Space Requirements
Position the gauge in a way that allows the microwaves to propa-
gate without disturbance from the tank wall, according to the
illustration below.
