Saab TankRadar
®
ProMechanical Installation
2-4
Edition 2. Ref. No: 306010E
Gasket
Loose flange
Wave guide tube
O-ring
Nut

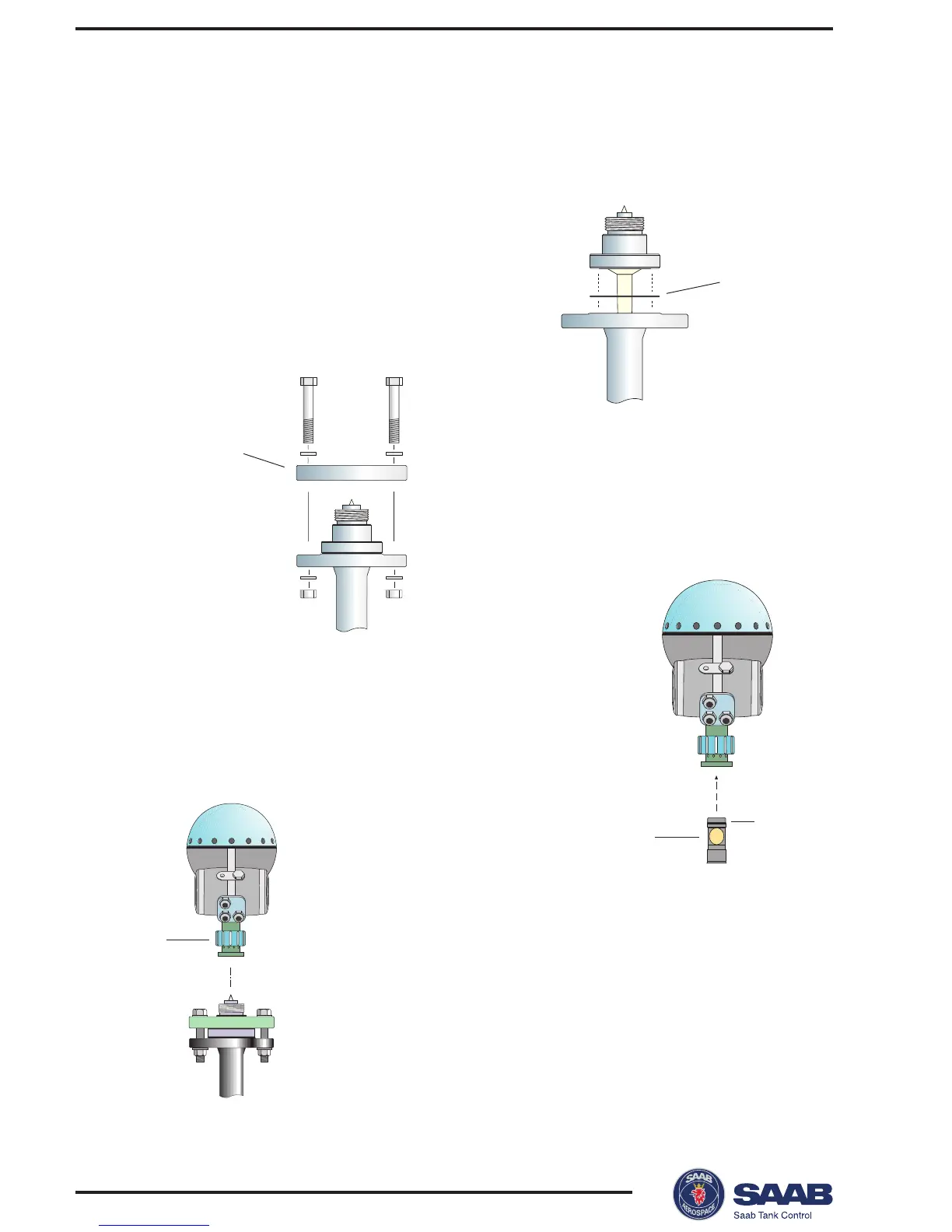

Mounting the Rod Antenna
Make sure that all parts are clean and dry when mounted.
Tank flange diameter = 50 mm (2)
1. Put a gasket on the socket
and insert the antenna.
2. Mount the loose flange
and tighten the screws.
3. Insert the wave guide tube into the
upper wave guide.
Make sure that all parts are clean
and dry.
4. Place the transmitter on top of the
antenna and tighten the nut.
