Saab TankRadar
®
Pro Mechanical Installation
2-11
Edition 2. Ref. No: 306010E

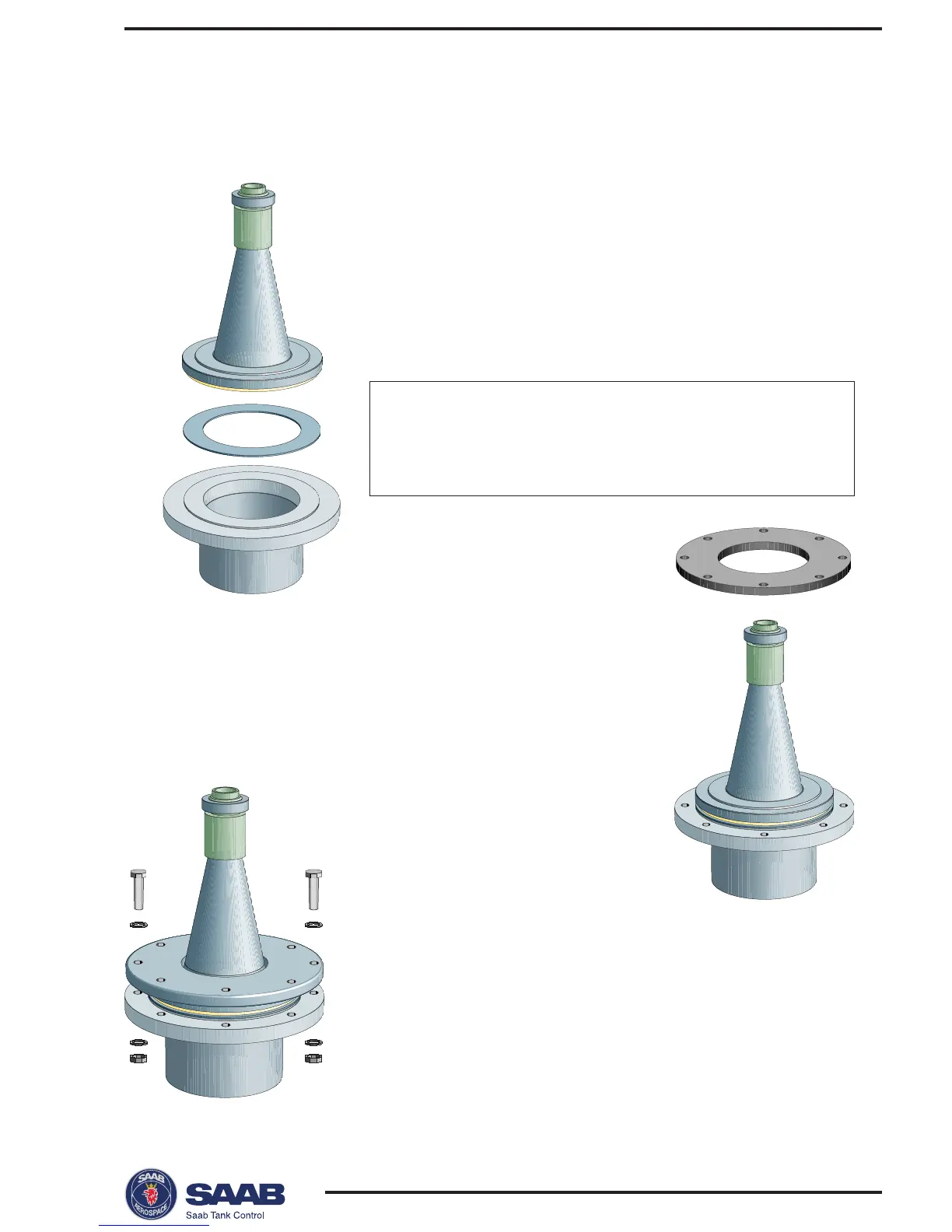

To mount the antenna do the following:
2. Put the loose flange
on top of the antenna
3. Tighten the flange to
the antenna by using
screws and nuts. Use
lubricating grease to
minimize friction
when the screws are
tightened.
Note! Tighten the screws carefully to a torque
according to the recommended values in
table 1.
Tighten opposite screws in pair.
Note! Use gaskets delivered by Saab. These gaskets are
optimized for use with microwave emitting equip-
ment. No other gaskets than Saab original may be
used for Process Seal antennas!
1. Place a gasket on top of the socket and mount
the antenna.
Use one of the two gaskets delivered by Saab:
• Teflon
or
• Graphite for temperatures above 250 º C.
