Saab TankRadar PRO - Junction Box

3-2
Edition 2. Ref. No: 306010E
Saab TankRadar
®
ProElectrical Installation
Primary analog output
or
serial communication
(FM: conduit fitting)
Intrinsically safe
analog outputs (or
conduit for non-IS
outputs)
Connection for
Display Panel
CENELEC: EExi
(Optional: EExe)
FM: Intrinsically safe
(Explosion proof)
CENELEC: EExe
FM: Explosion proof
Power supply
(FM: conduit fitting)
Flameproof enclosure
Junction Box

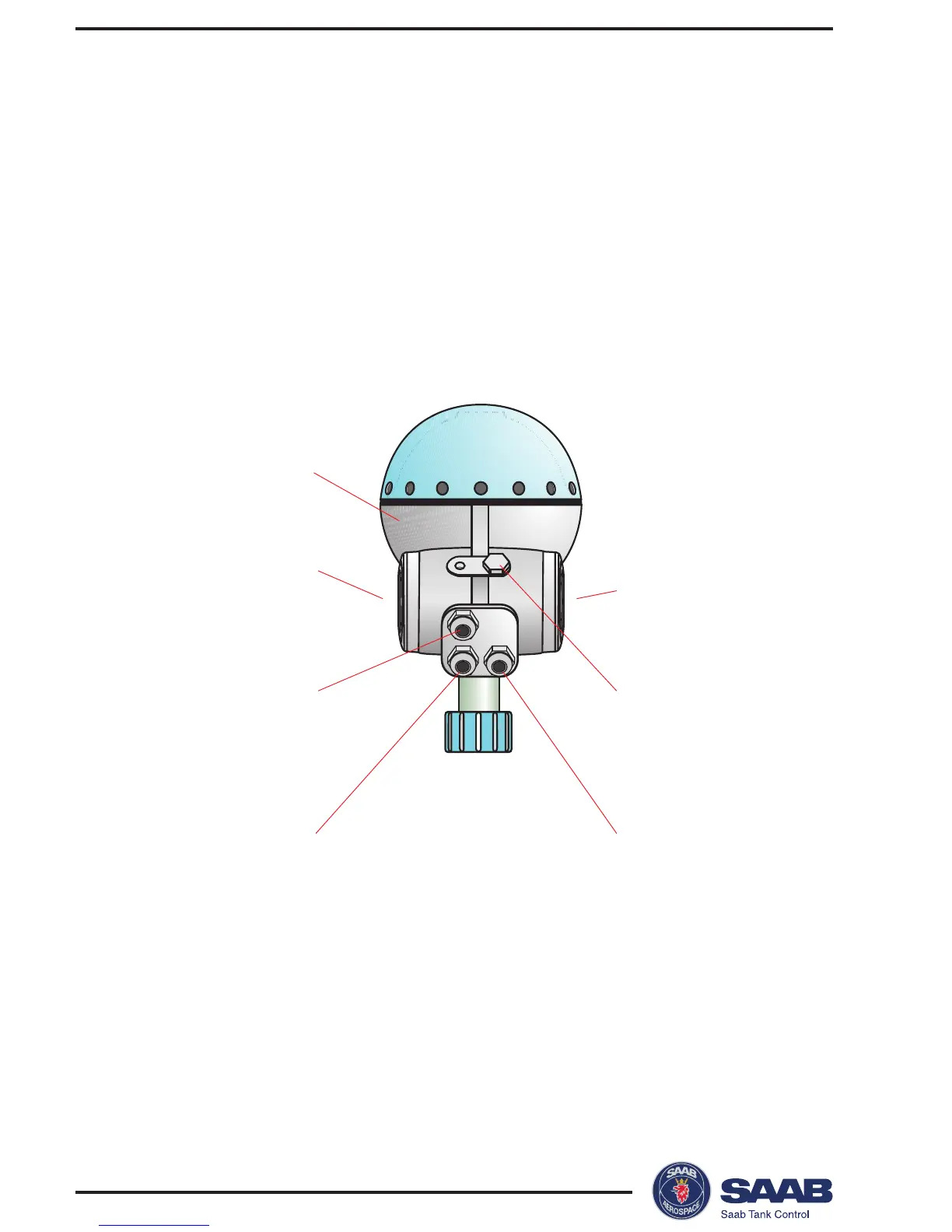

The standard version is equipped with a junction box that con-
sists of a non-intrinsically safe and an intrinsically safe part.
There is also an optional version with two non-intrinsically safe
compartments.
