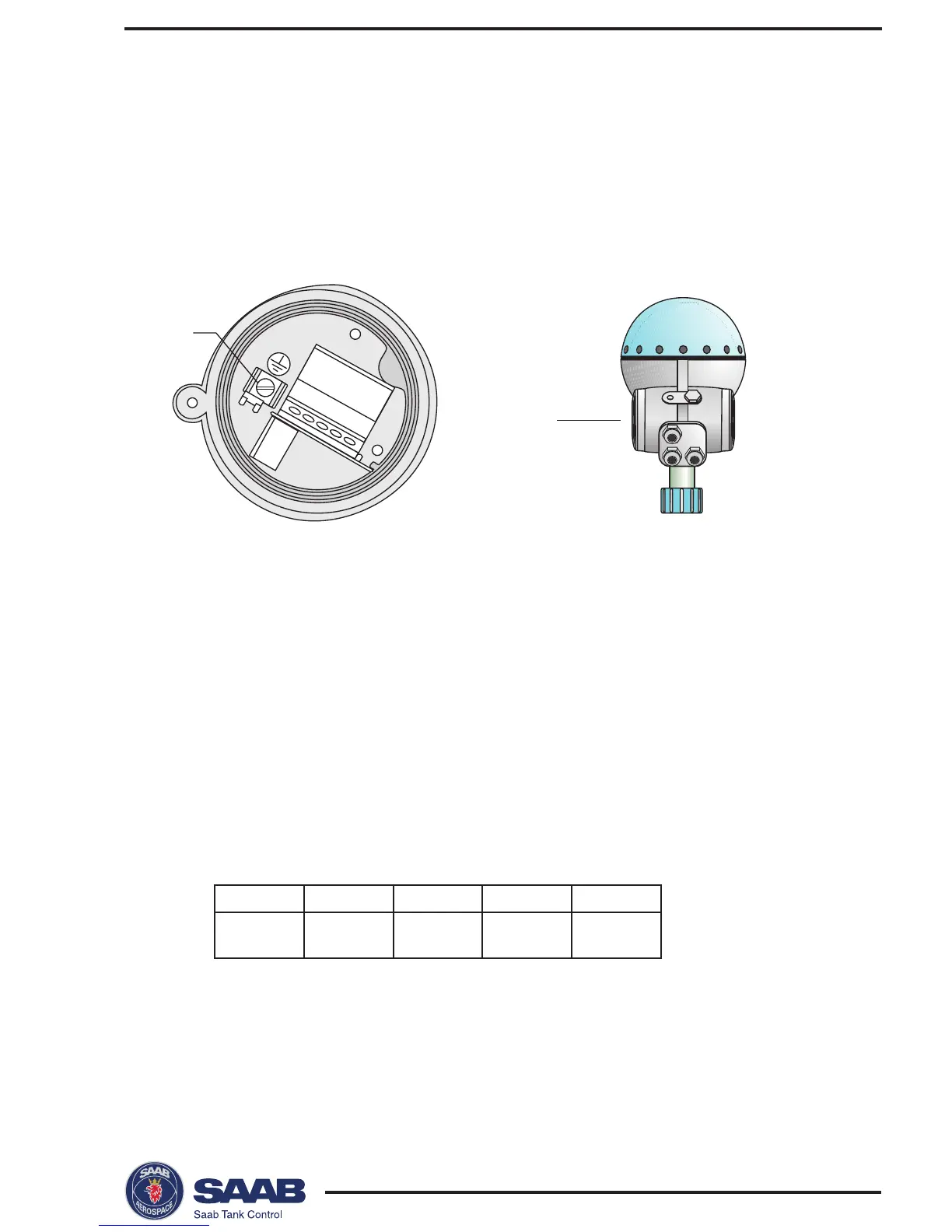

External Connections
Non-Intrinsically SafeJunction Box -EEx e
This Junction Box is for non-intrinsically safe connections and
power supply.
1-2 Non-intrinsically safe HART/4-20 mA primary analog output,
or
TRL/2 Bus
3-4 Power supply input
5 Not connected
A Electrical safety ground terminal
Note: redundant when the transmitter is grounded according to
CENELEC.
Cable shield
Connect the shield to the cable glands.
