Saab TankRadar PRO - Connecting to a TRL2 Bus Interface

3-6
Edition 2. Ref. No: 306010E
Saab TankRadar
®
ProElectrical Installation
Field Bus Modem
X1
1
2
3
4
5
Junction Box EEx e
100-240 VAC
or
24-48 DC

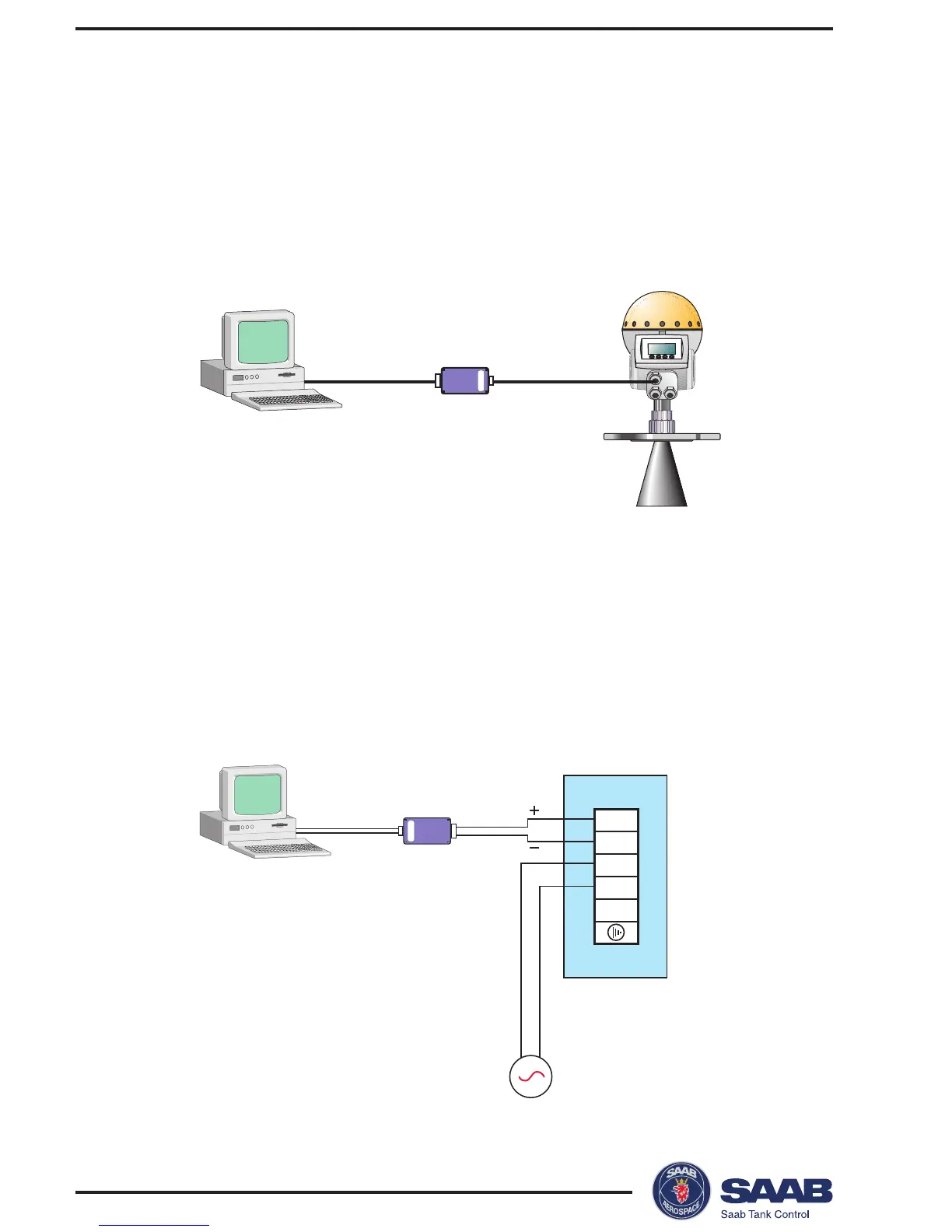

Connecting to a TRL2 Bus Interface
Use a Field Bus Modem (FBM) for a Pro transmitter equipped
with a TRL2 interface.
Connect to the non-intrinsically safe junction box (EEx e).
