Saab TankRadar PRO - Mounting the Cone Antenna - PTFE sealing

Saab TankRadar
®
ProMechanical Installation
2-6
Edition 2. Ref. No: 306010E
Locking ring
Wave guide unit
Adapter
Sleeve
Locking ring
Locking nut
O-ring
Flange
Diameter=33 mm
Note!
No gasket
on top of
this plate

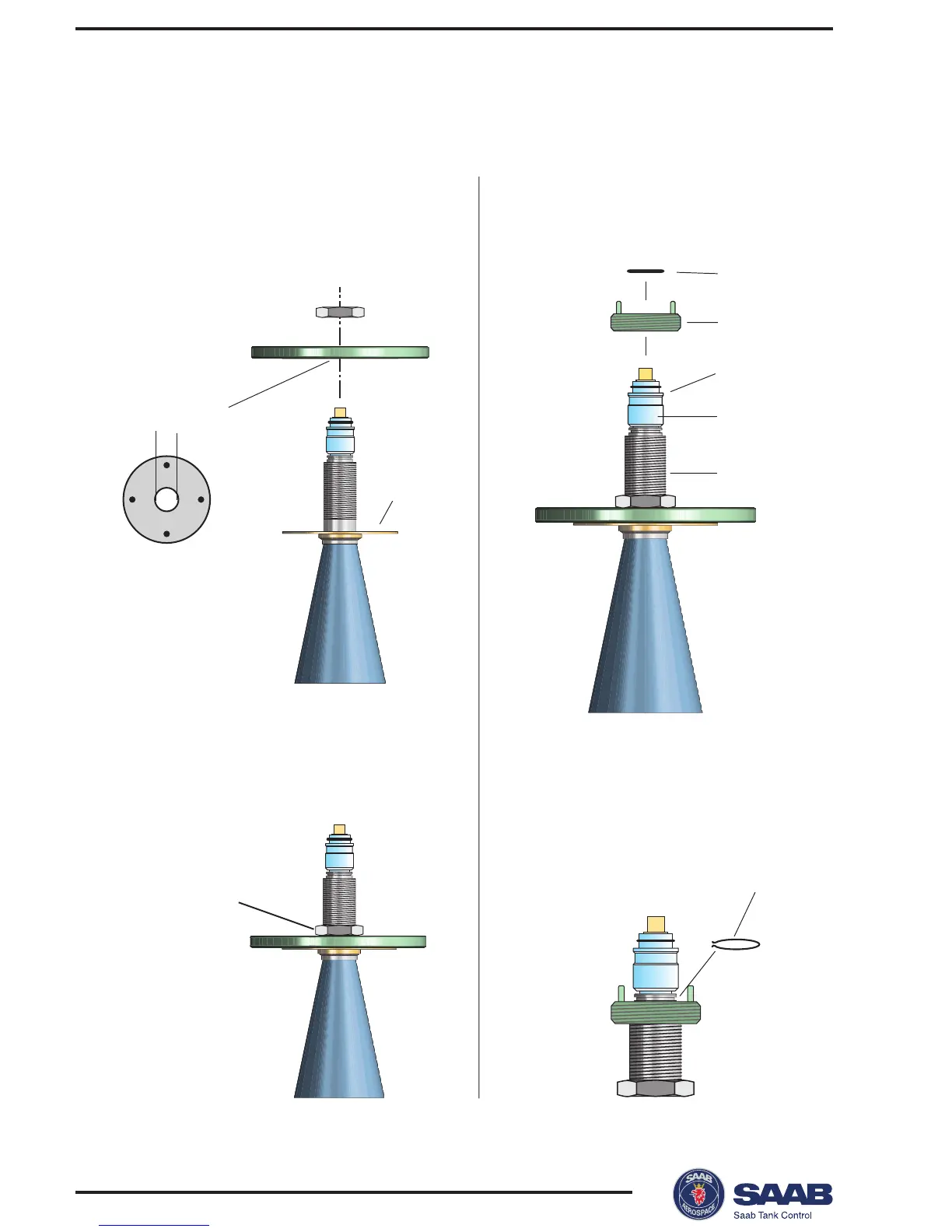

Mounting the Cone Antenna - PTFE sealing
1. Mount the flange on top of the cone
plate.
Make sure that the bottom side of
the flange is flat and all parts are
clean and dry.
2. Secure the flange with the locking
nut.
Make sure that the nut fits tightly to
the flange.
3. Mount the adapter on top of the
sleeve.
4. Secure the adapter with the locking
ring.
