Saab TankRadar PRO - Connecting the Display Panel

Saab TankRadar
®
Pro Electrical Installation
3-9
Edition 2. Ref. No: 306010E
Gnd
Gnd
D
Vcc
Level
24500
MENU ITEM GRPH
mm
Junction Box
EEx i
6
5
4
3
2
1
X2
IS Ground
DPS
DP +
+
Gnd
Signal

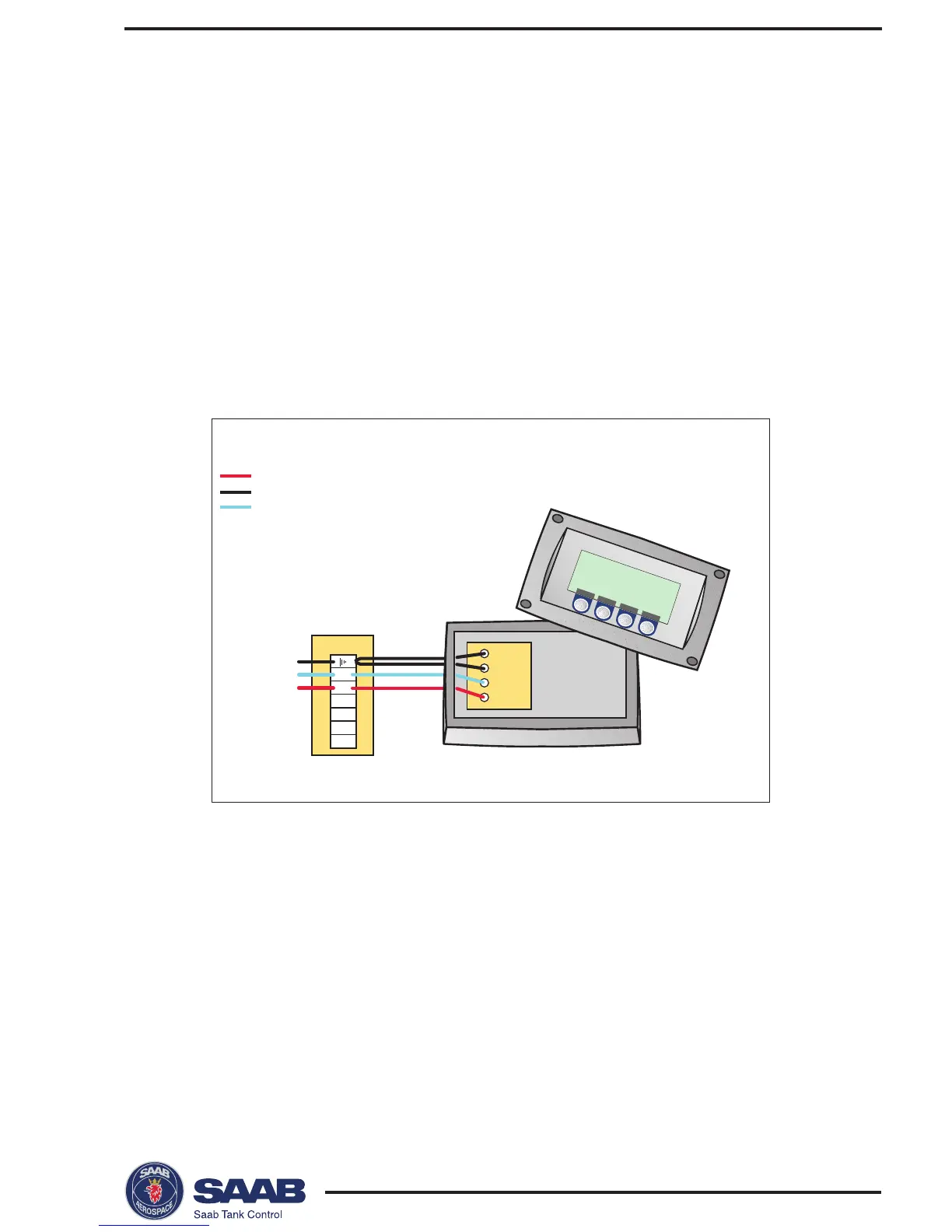

Connecting the Display Panel
The Display Panel is intrinsically safe and may only be used
when permanently mounted directly on the enclosure with two
separate grounding wires.
There are four wires to be connected to the X2 terminal:
• two grounding wires X2 ground terminal
• signal wire terminal 6
• Display Panel supply voltage terminal 5
