Saab TankRadar PRO - Mounting the Cone Antenna - Process Seal

Saab TankRadar
®
ProMechanical Installation
2-10
Edition 2. Ref. No: 306010E
d
d

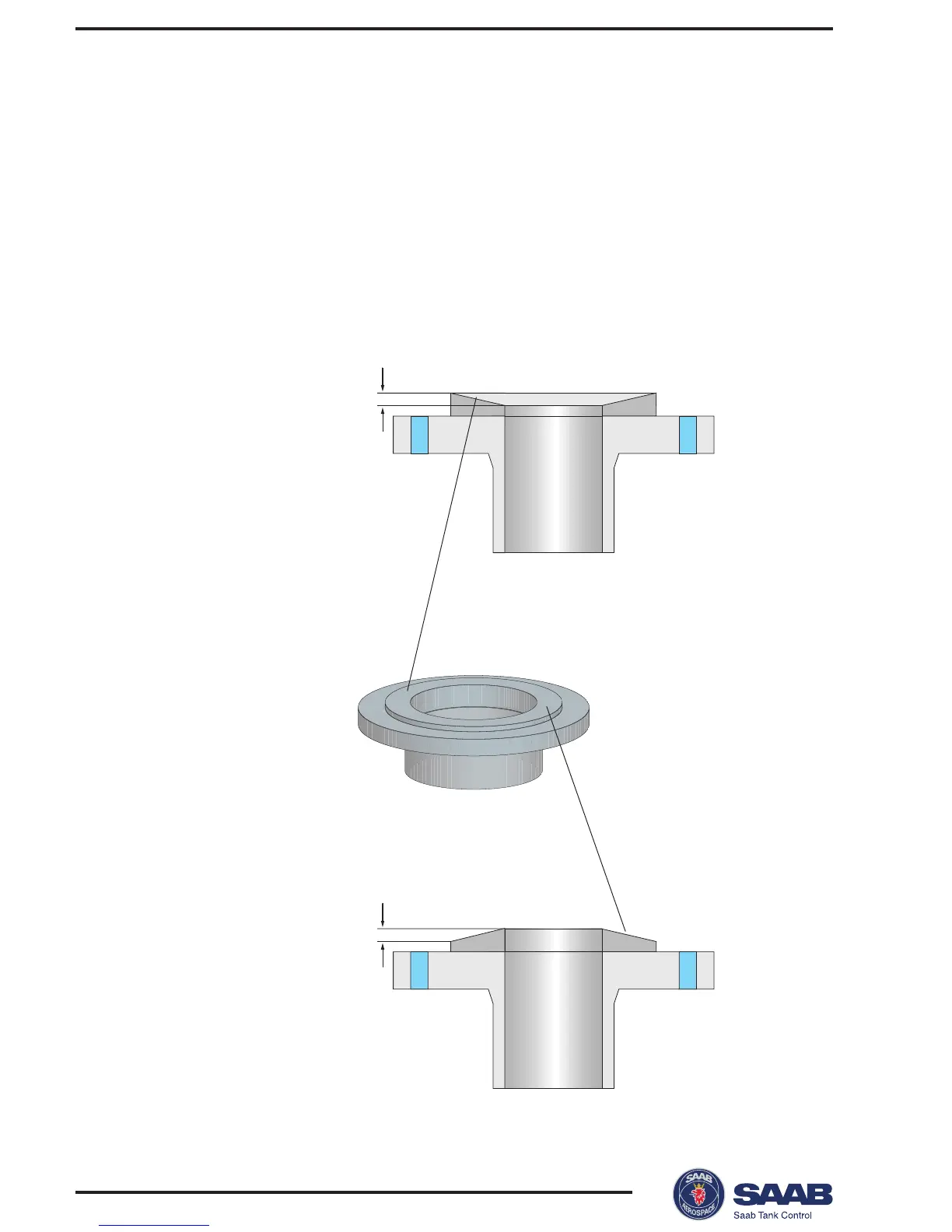

Convex:
Ceramic window: d<0.1 mm
PTFE window: d<0.5 mm
Concave:
Ceramic window: d<0.1 mm
PTFE window: d<0.5 mm
Mounting the Cone Antenna - Process Seal
Preparations
It is very important that the nozzle surface is flat. The maximum
deviation must be within the following specifications as illustrated
below (see Installation Instruction Process Seal Doc. no. 9240007-985):
