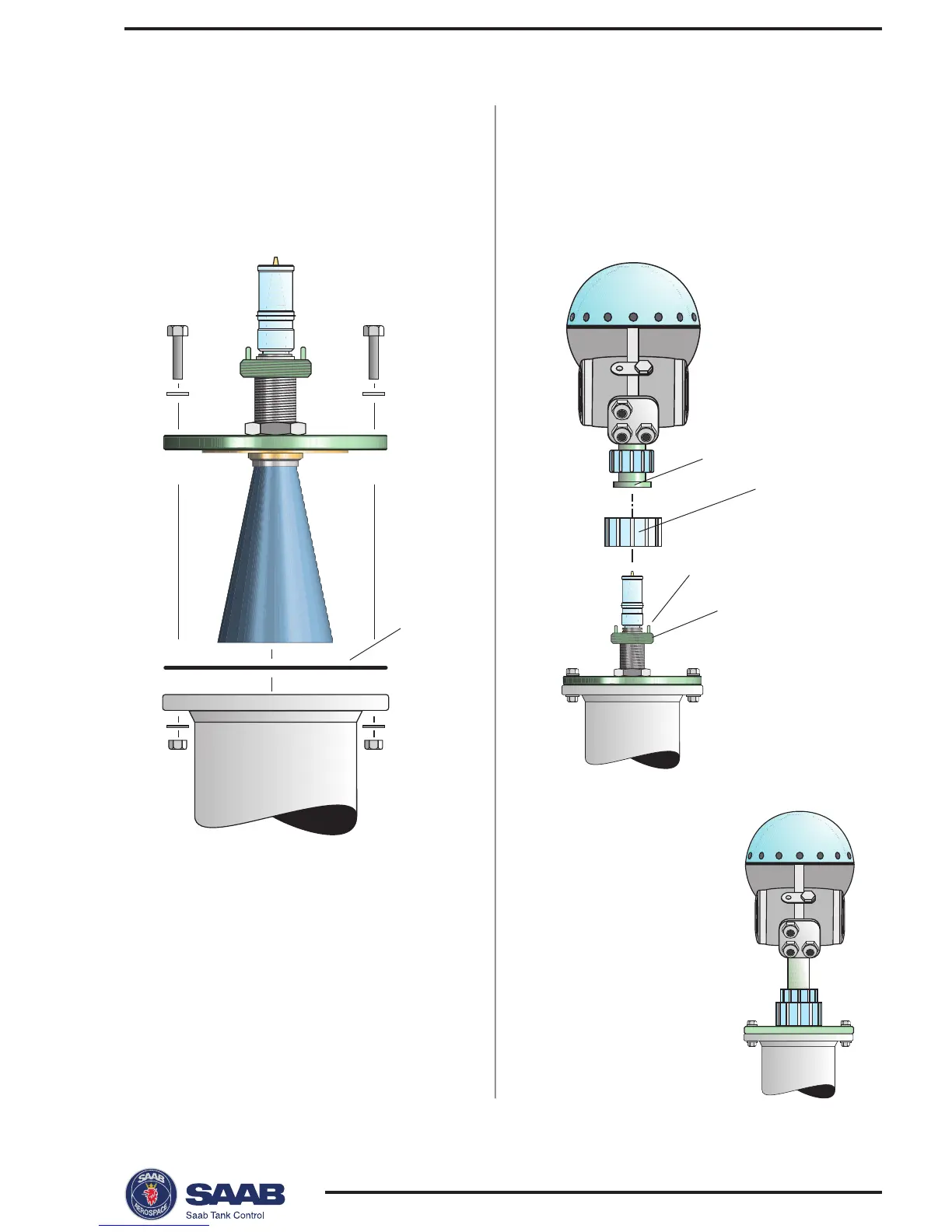

Gasket
Protection
sleeve
Upper wave guide
Guide pins
Adapter
5. Carefully fit the flange and the
cone antenna on the tank flange.
Tighten with screws and nuts.
6. Place the protection sleeve on the
flange.
Mount the transmitter head. Check
that the guide pins on the adapter
enter the corresponding grooves
on the upper wave guide.
7. Proceed with
the electrical
installation.
