Saab TankRadar
®
Pro Electrical Installation
3-5
Edition 2. Ref. No: 306010E
3
2
4
5
1
< X2
A
EExi/e
12345
desutoNdesutoN
+tuO
)yradnoceS(
-tuO
)yradnoceS(
toN
detcennoc

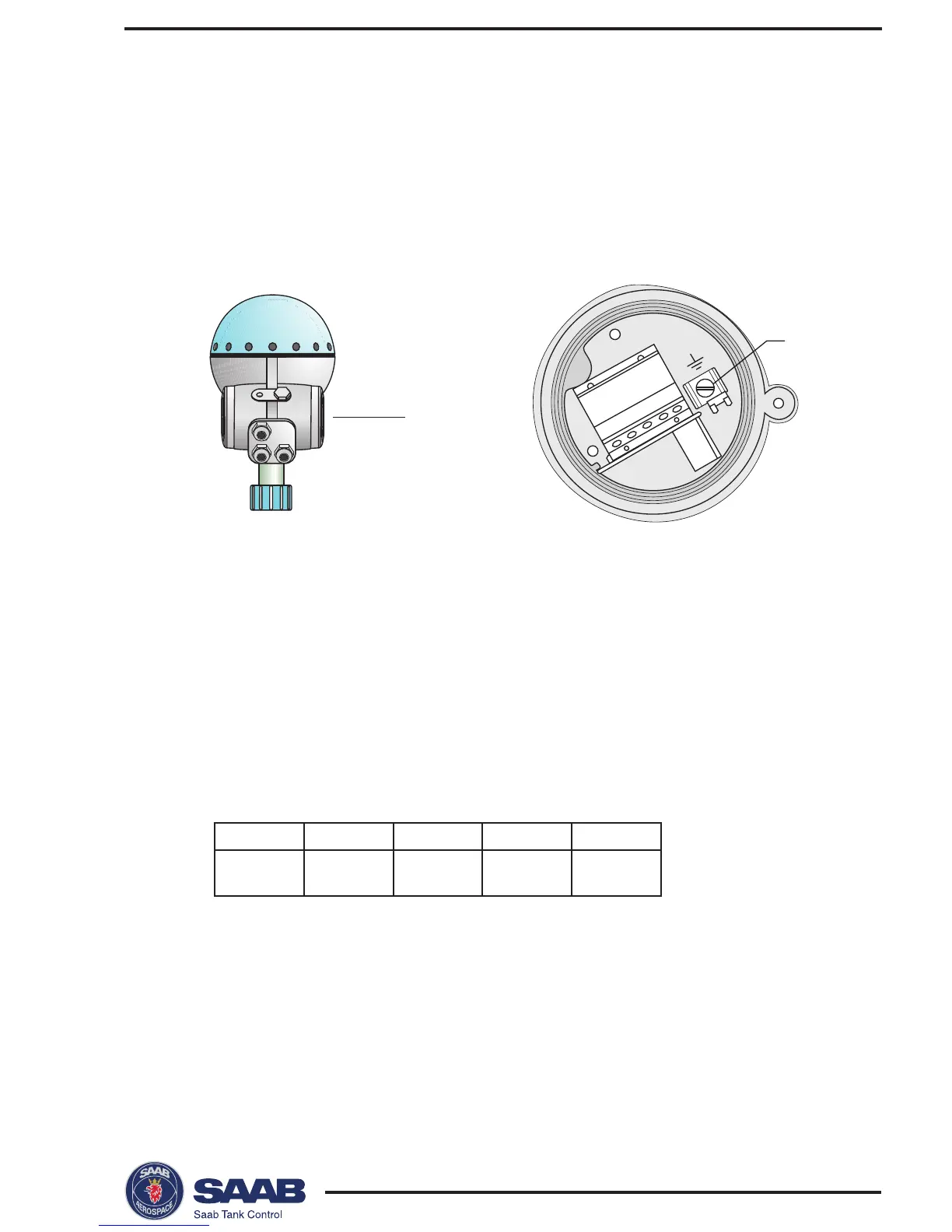

Alternative Non-intrinsically Safe Junction Box
This is the standard intrinsically safe Junction Box (EExi) fitted
with an alternative connector for connection of non-IS output if
required.
1-2 Not used
3-4 Non-intrinsically safe Secondary Analog Output
5 Not connected
A Ground terminal (not used)
Cable shield
Connect the shield to the cable glands.
