Saab TankRadar PRO - Page 33

3-4
Edition 2. Ref. No: 306010E
Saab TankRadar
®
ProElectrical Installation
4
5
3
2
1
6
< X2
A
EExi
123456
+tuO
)yramirP(
-tuO
)yramirP(
+tuO
)yradnoceS(
-tuO
)yradnoceS(
+PD
SPD

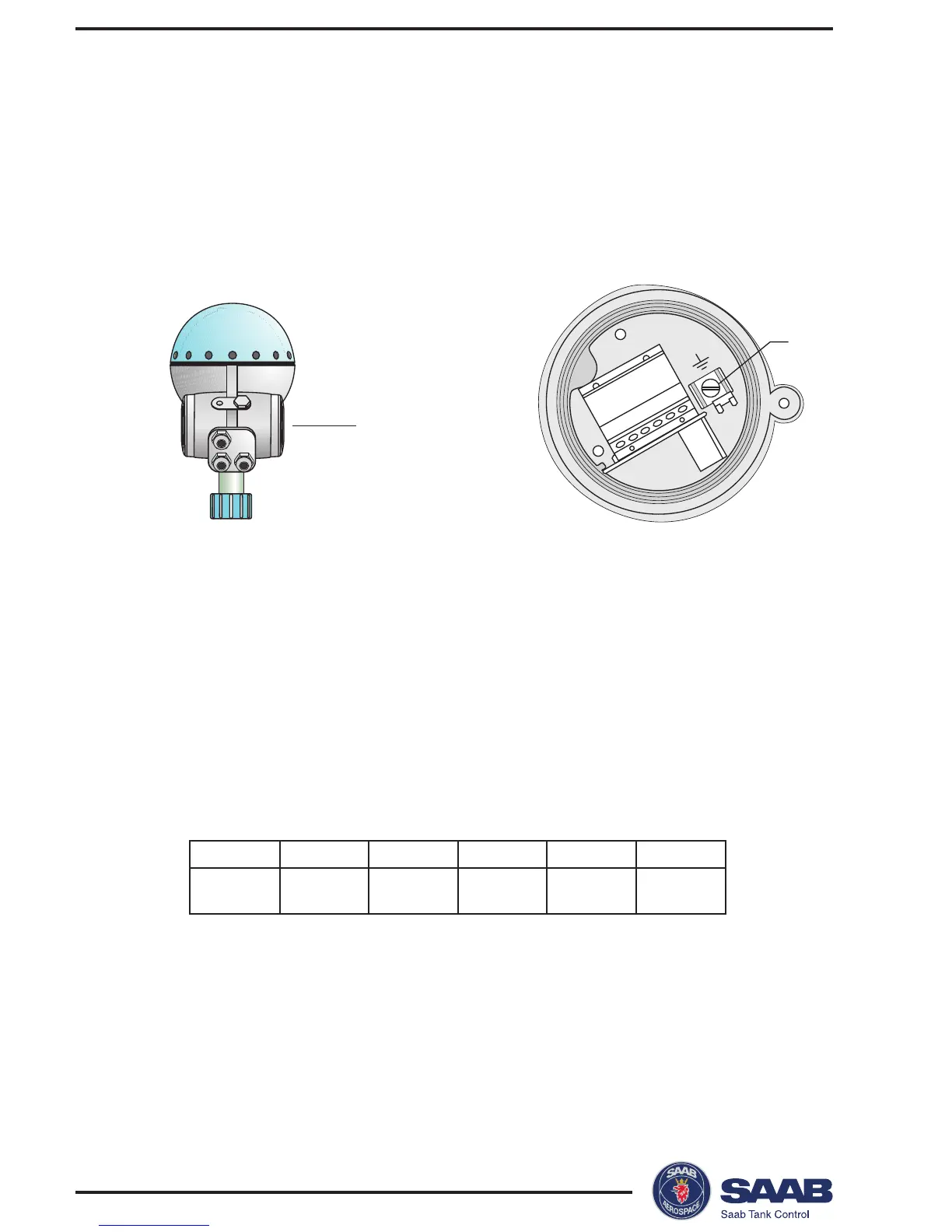

Intrinsically Safe Junction Box - EEx i
This Junction Box is for intrinsically safe connections and for
connection of the Display Panel.
1-2 Intrinsically safe HART/4-20 mA primary analog output.
3-4 Secondary analog output.
5-6 Display panel.
A Ground terminal for Display Panel.
Cable shield
Connect the shield to the cable glands.
