User Manual Laser Diode Controller PilotPC 8
Laser Diode Configurations
The laser diode is connected over the “LASER CONNECTOR” on the
rear panel of the driver. To get the full performance and safety please
only connect a special laser head from Sacher Lasertechnik.
These laser heads incorporate several features.
- Short circuit relay for the laser diode
- Input filter network for current transient protection
- Interlock loop
- bias-T option for high frequency modulation
- separate calibrated photodiode for const power mode (only for high
power TIGER systems)
For maximum flexibility and laser safety the driver supports 4 different
laser diode configurations which are shown in the following schematics.

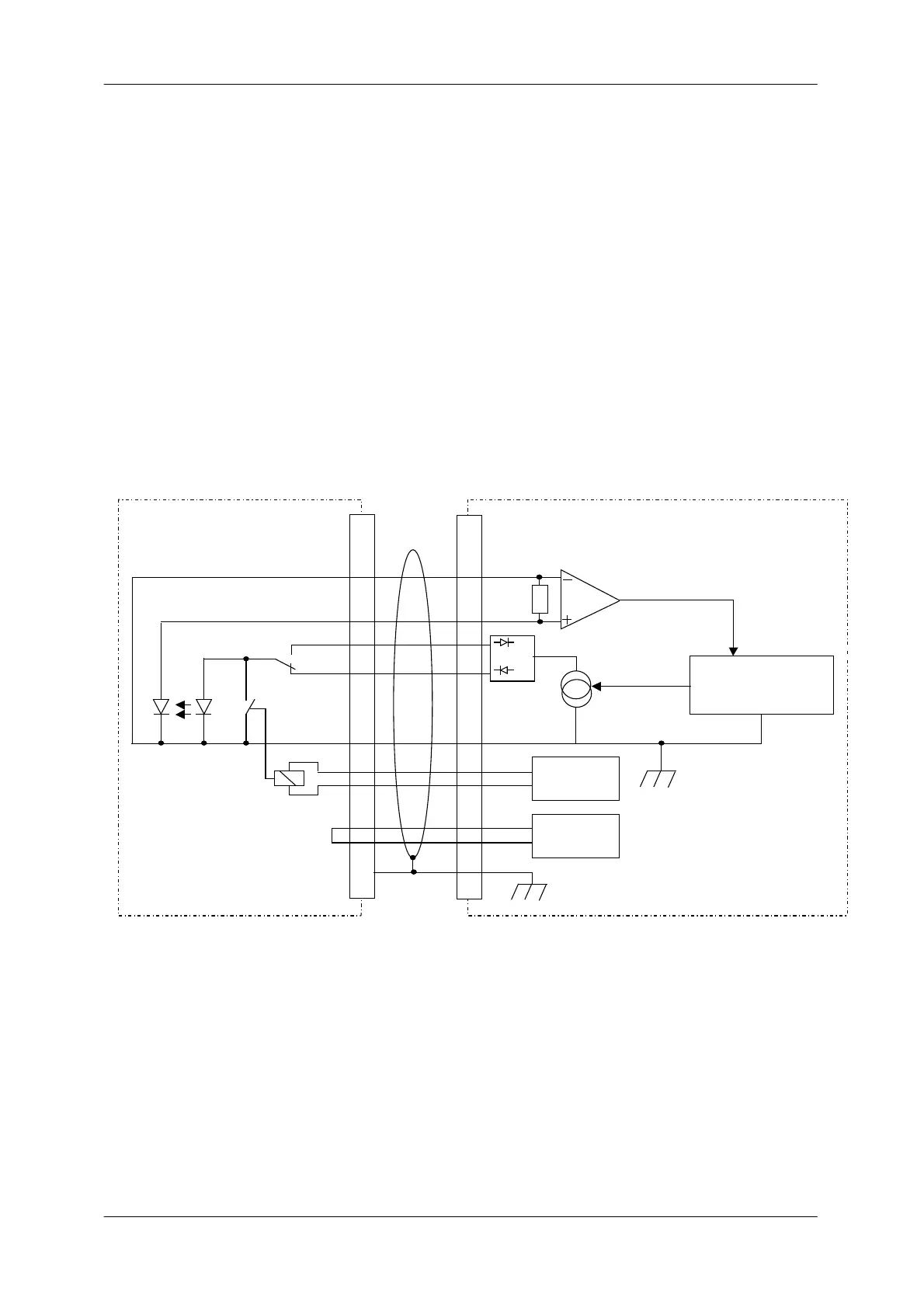

Configuration 1 (common cathode)
Constant Current/Power
Controller
Safety
Relay Control
Interlock
Control
1 = Interlock
2 = Photodiode Cathode
3 = Ground for Laser Diode
4 = Photodiode Anode
5 = GND for Interlock
6 = Safety Relay Plus
7 = Laser Diode Minus
8 = Laser Diode Plus
9 = Safety Relay Minus
S = Shielding
1
2
3
4
5
6
7
8
9
S
Laser Diode Controller
Laser Diode
