User Manual Laser Diode Controller PilotPC 9

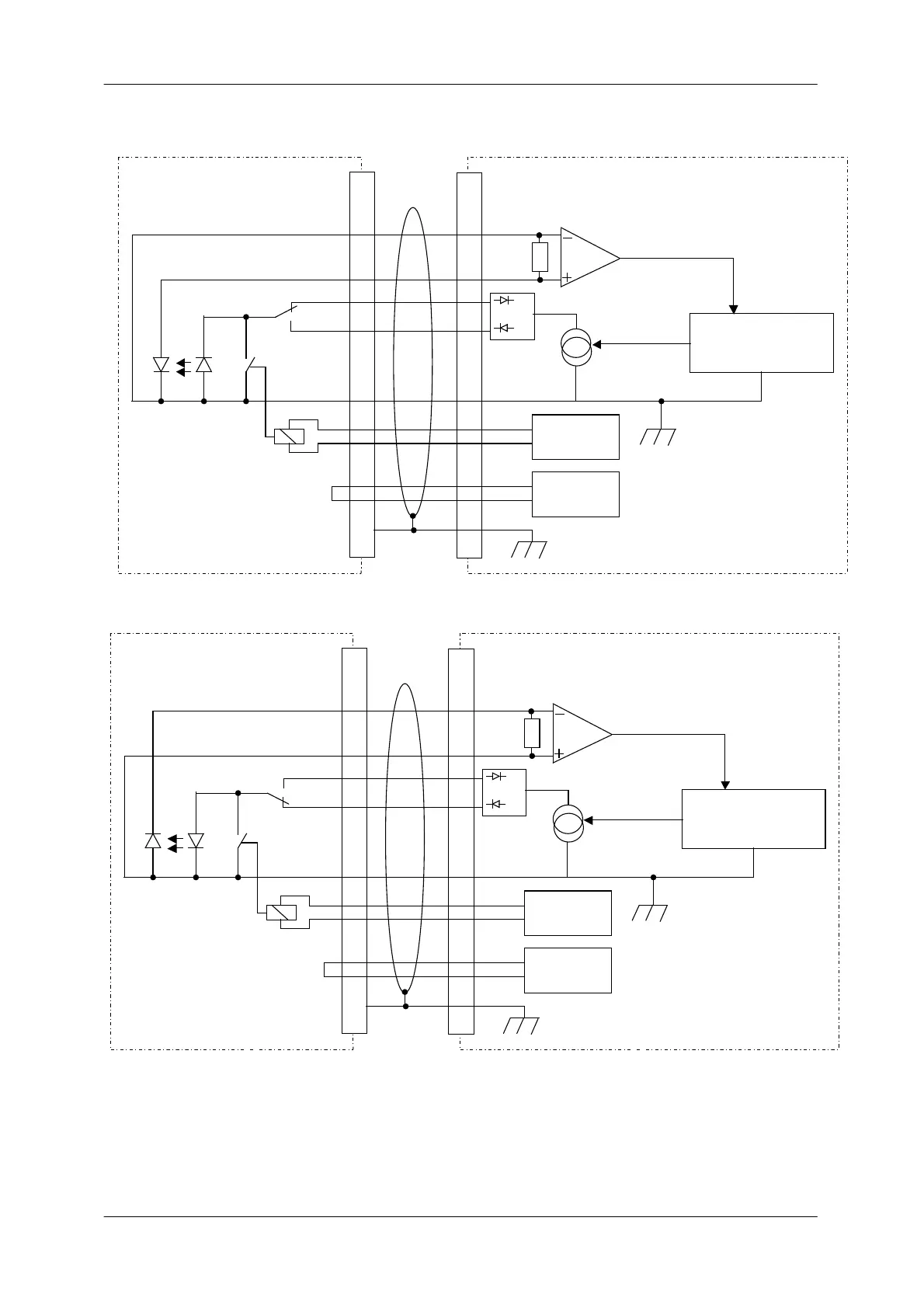

Configuration 2
Configuration 3
Constant Current/Power
Controller
Safety
Relay Control
Interlock
Control
1 = Interlock
2 = Photodiode Cathode
3 = Ground for Laser Diode
4 = Photodiode Anode
5 = GND for Interlock
6 = Safety Relay Plus
7 = Laser Diode Minus
8 = Laser Diode Plus
9 = Safety Relay Minus
S = Shielding
1
2
3
4
5
6
7
8
9
S
Laser Diode Controller
Laser Diode
Constant Current/Power
Controller
Safety
Relay Control
Interlock
Control
1 = Interlock
2 = Photodiode Cathode
3 = Ground for Laser Diode
4 = Photodiode Anode
5 = GND for Interlock
6 = Safety Relay Plus
7 = Laser Diode Minus
8 = Laser Diode Plus
9 = Safety Relay Minus
S = Shielding
1
2
3
4
5
6
7
8
9
S
Laser Diode Controller
Laser Diode
