Only a single user can see Constellation at a time.

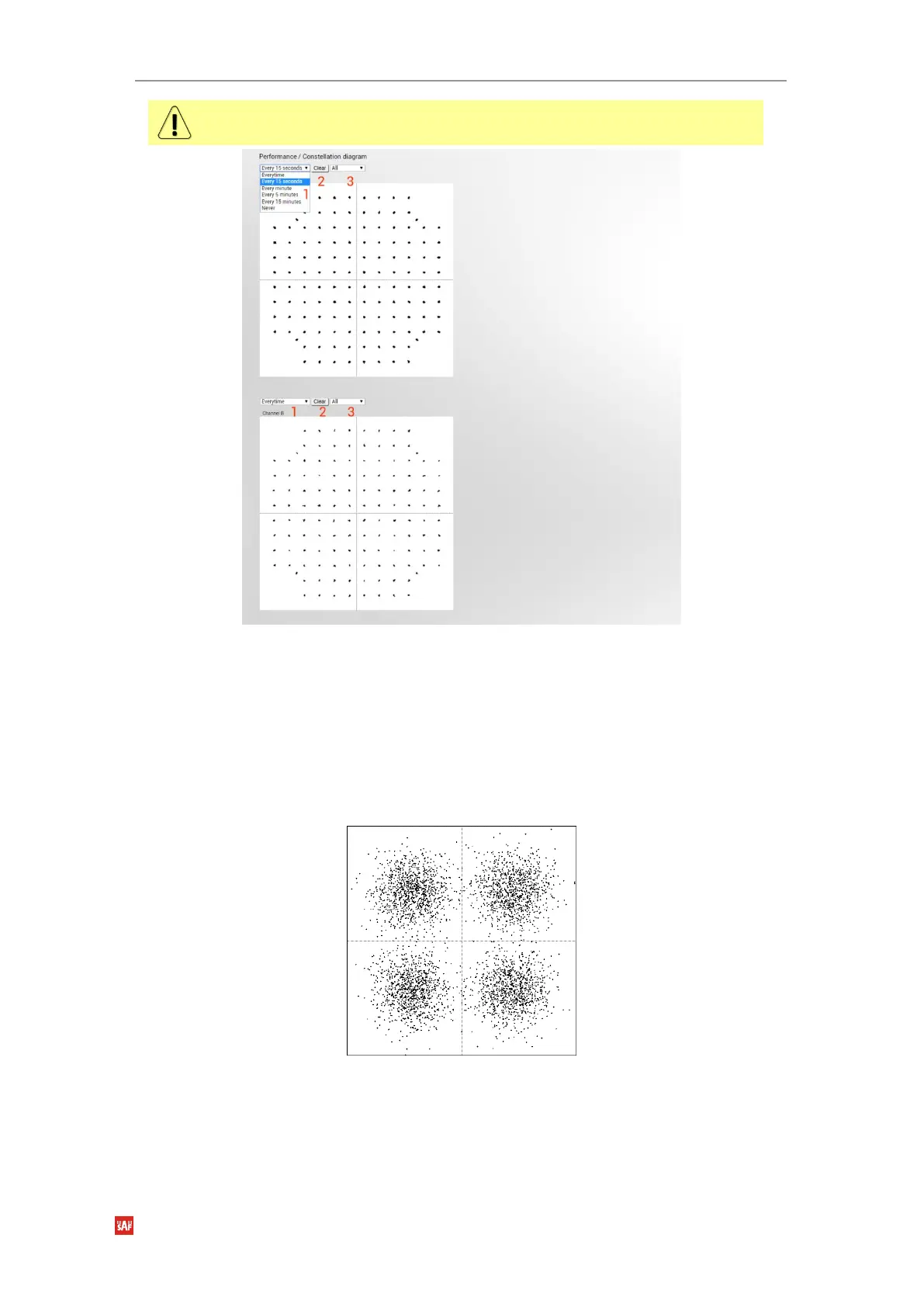

Figure 3-62 Constellation diagram page
1)
Allows choosing how often is constellation automatically cleared;
2)
Manually clear current constellation;
3)
Allows zooming to one of 4 constellation quadrants.
For the purpose of analyzing the received signal quality, some types of corruption are evident
in the constellation diagram. For example for 4QAM see
Figure 3-63
,
Figure 3-64
and
Figure
3-65
.
Gaussian noise is displayed as fuzzy constellation points,
Figure 3-63
:
Figure 3-63
Non-coherent single frequency interference is displayed as circular constellation points,
Figure
3-64
:
