Chapter 13: Digital Operator Monitor Display
Firmware – S2011 and S3012
Revision: 1 (9/98) 92 © Saftronics, Inc.
13.1 Digital Operator Monitor Display
The following table shows the contents of the Digital Operator monitor display.

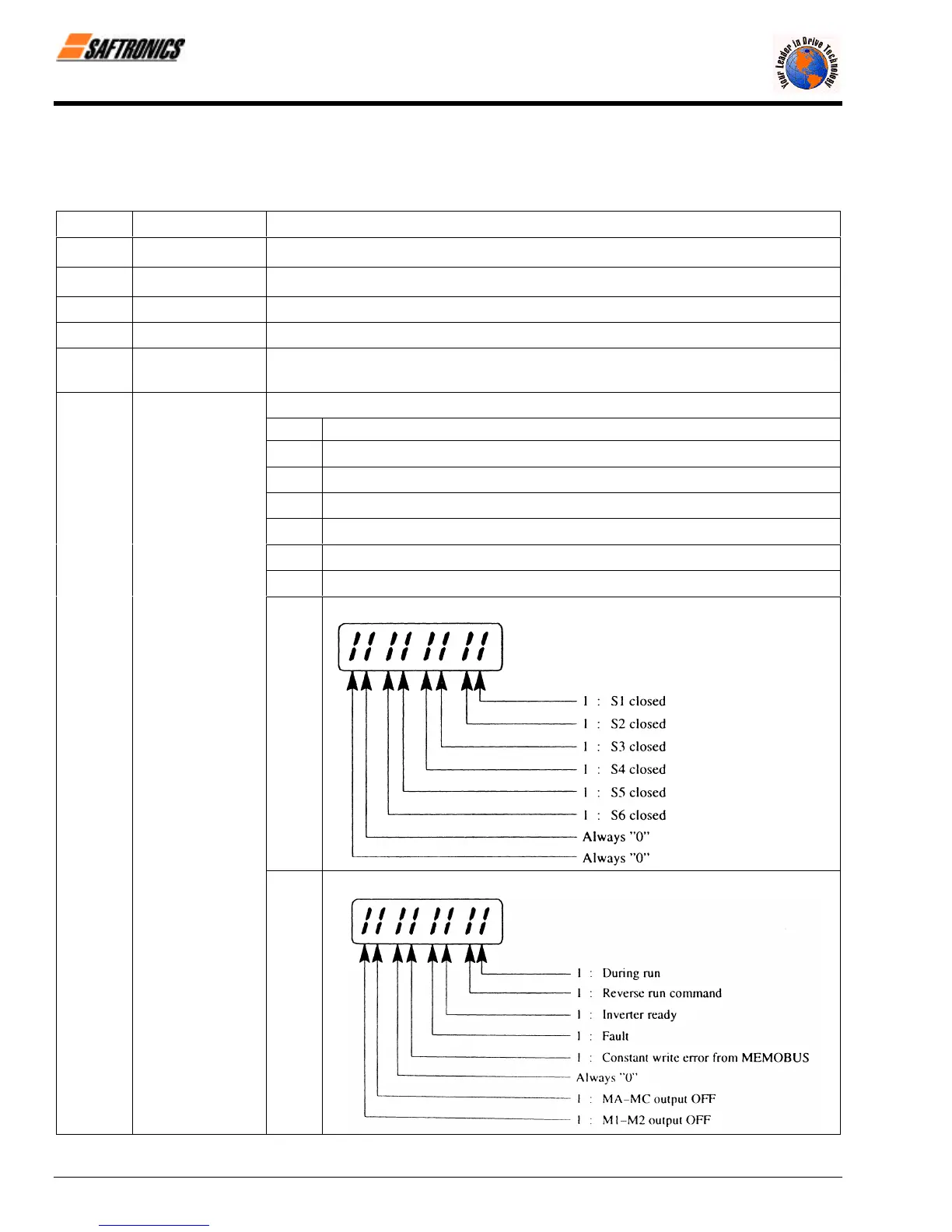

Table 28 Digital Operator Monitor Display
LED Name Description
Fref Frequency reference
• Frequency reference can be monitored/set.
• Setting/display unit depends on display mode (n024).
Fout Output frequency
• Output frequency can be monitored.
• Display unit depends on display mode (n024).
Iout Output current Output current can be monitored in units of 0.1 A (1 A for 1000 A and above).
kWout Output voltage Output voltage can be monitored in units of 0.1 kW (1 kW for 1000 k and above).
F/R
FWD/REV RUN
command
• FWD/REV RUN command can be set/monitored.
• Setting enabled during RUN command from Digital Operator.
• FWD run displays For, REV run displays rev.
The following contents can be monitored.
No. Contents
U−01
Frequency reference (same as Fref)
U−02
Output frequency (same as Fout)
U−03
Output current (same as Iout)
U−04
Output voltage reference can be monitored in units of 1 V
U−05
DC voltage can be monitored in units of 1 V
U−06
Output power (same as kWout)
Input terminal status can be monitored (Terminals S1 to S6)
U−07
Inverter status can be monitored
Montr Monitor
U−08
