Saftronics FP5/GP5 Series User Manual

Chapter 10: Dimensions
Firmware – S2011 and S3012
Revision: 1 (9/98) 76 © Saftronics, Inc.
10.1 Dimensions
The figures below show a 200V 3.7kW model. Use open chassis type 200V/400V 15kW or less with the top and bottom covers
removed.

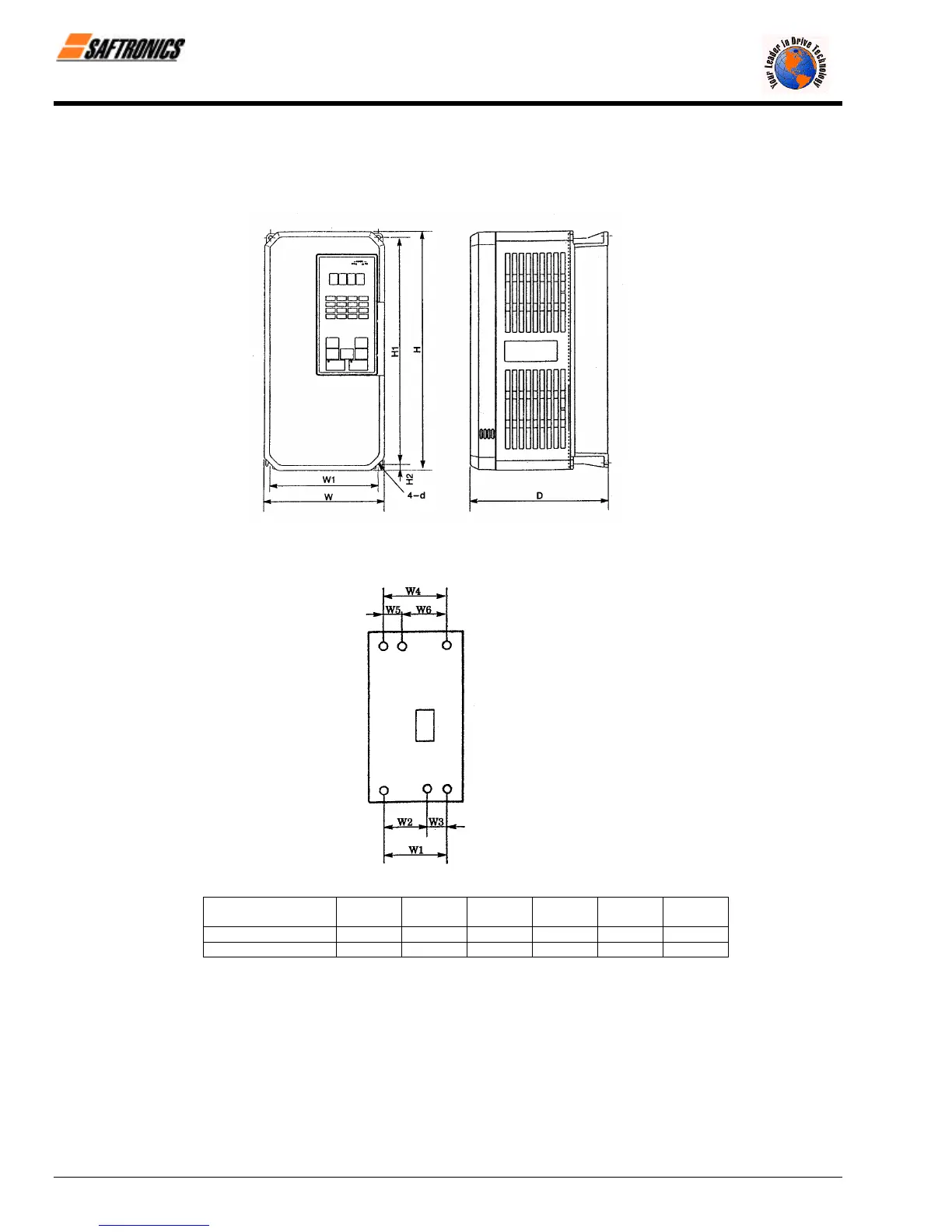

Figure 52 Dimensions of FP5/GP5
The following figure shows the mounting dimensions of 400V 185 to 300kW.
Maximum Applicable
Motor Output (kW)
W1 W2 W3 W4 W5 W6
185, 220 750 440 310 850 285 565
300 750 440 310 873 298 575
Figure 53 Mounting Dimensions of 400V 185 to 300kW
