Chapter 3: Wiring
Firmware – S2011 and S3012
Revision: 1 (9/98) 16 © Saftronics, Inc.

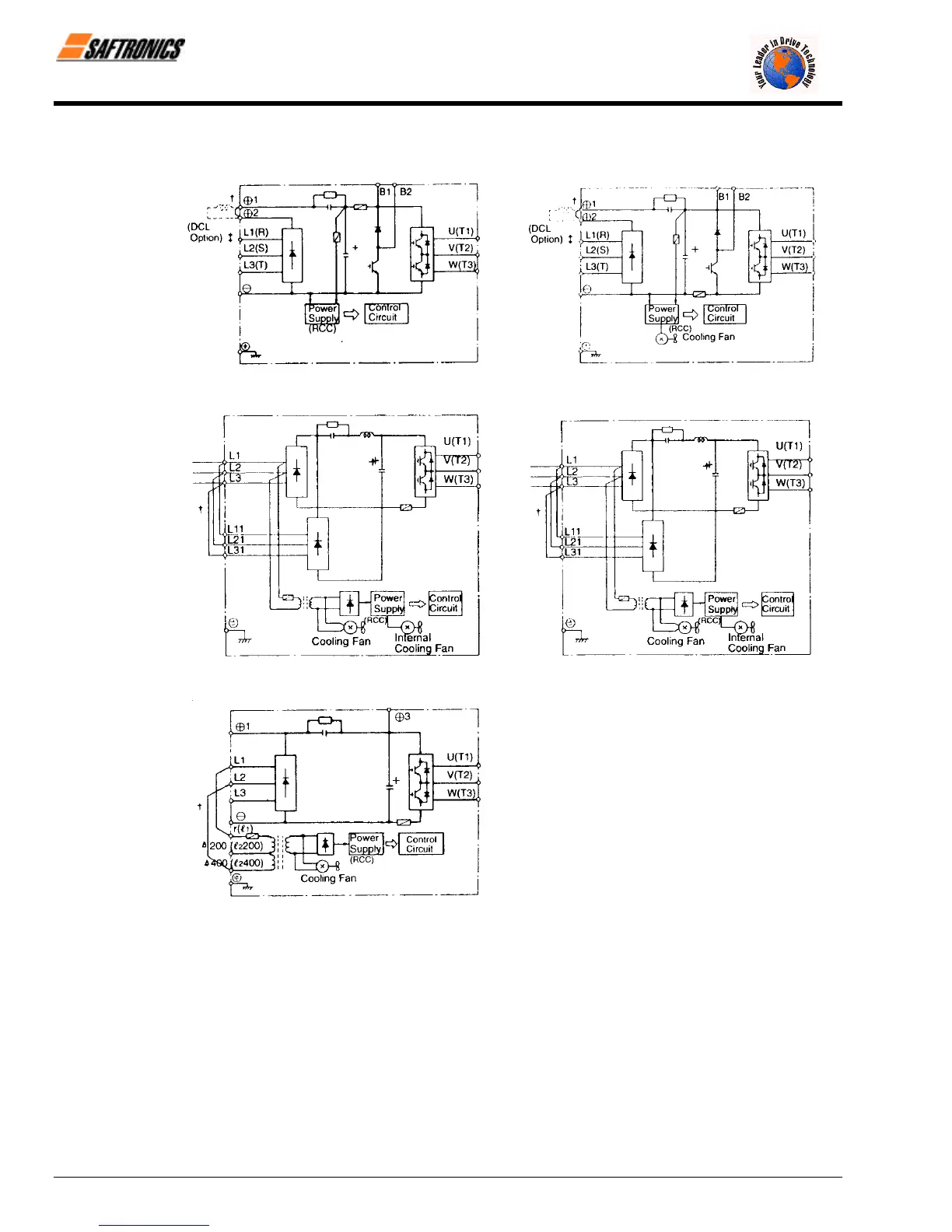

400V Class
FP5/GP540P4 to FP5/GP541P5 FP5/GP542P2 to FP5/GP54015
FP5/GP54018 to FP5/GP54045 FP5/GP54055 to FP5/GP54160
FP5/GP54185 to FP5/GP54300
= The wiring has been completed at the factory prior to shipping.
‡ When installing a DC Reactor (option) on models of 15kW or below, remove the short-circuit bar between
¾ 1 and ¾ 2 terminals and connect a DC Reactor with the terminals.
