Chapter 5: Simple Data Setting
Firmware – S2011 and S3012
Revision: 1 (9/98) 33 © Saftronics, Inc.

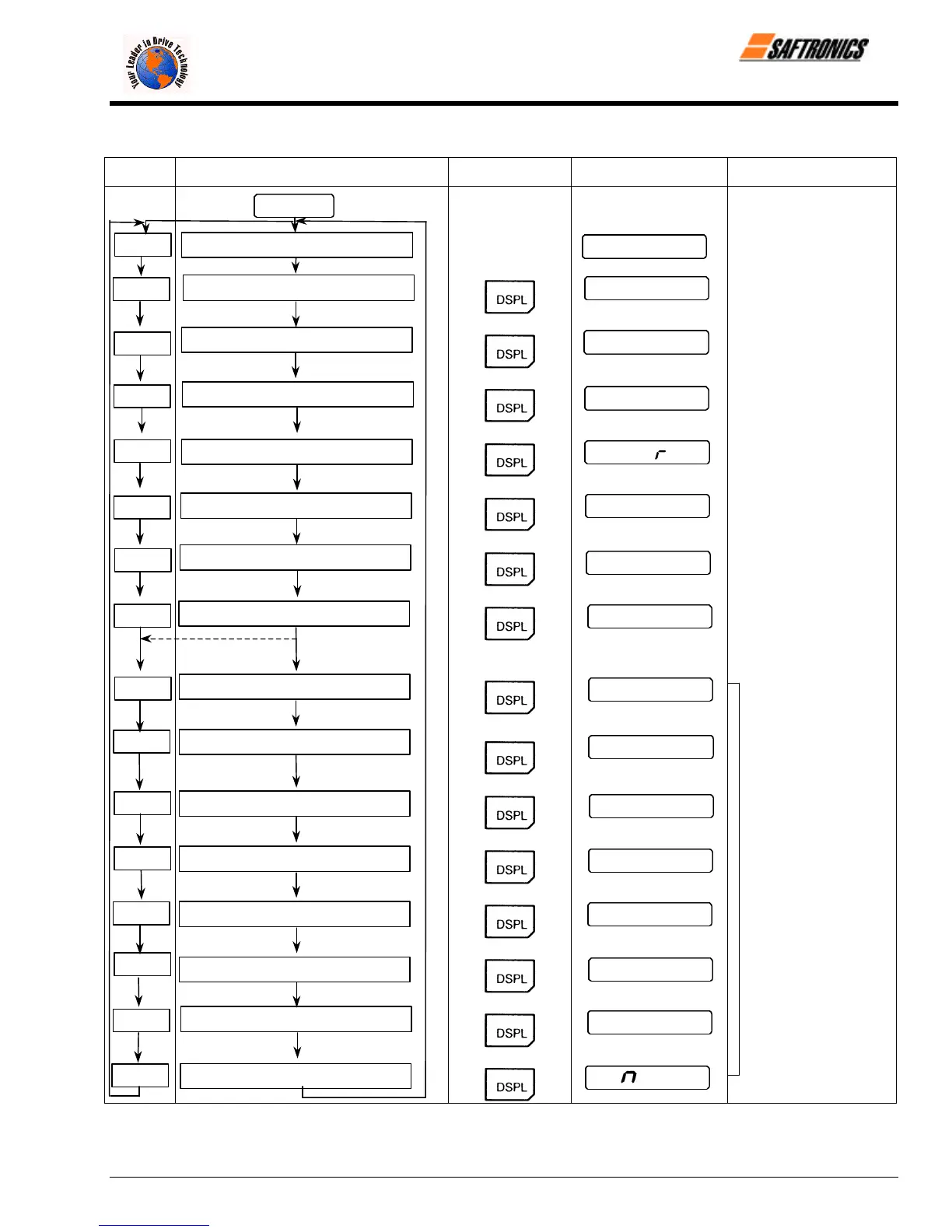

Table 12 LED Description
LED
Display
Description Key Sequence Digital Operator Display Remarks
Power ON
Fref Frequency reference setting/monitoring
0.0
Fout Output frequency monitor
0.0
Iout Output current monitor
0.0
kWout Output power monitor
0.0
F/R FWD/REV RUN command selection
Fo
Montr Monitor selection
U – 01
Accel Acceleration time
10.0
Decel Deceleration time
10.0
(During run)
Press ENTER key to
display the monitor value.
Vmtr Motor rated voltage
200.0
V/F V/f pattern selection
1
Fgain Frequency reference gain
100
Fbias Frequency reference bias
0
FLA Motor rated current
14.0
PID PID selection
0
kWsav Energy saving selection
0
Set/read is enabled only
during stop.
PRGM Constant number/data
002
Press ENTER key to
display the data.
