Chapter 6: Programming Features
Firmware – S2011 and S3012
Revision: 1 (9/98) 51 © Saftronics, Inc.
§ Terminal Function at 2-Wire Sequence Selection (Setting: 0)

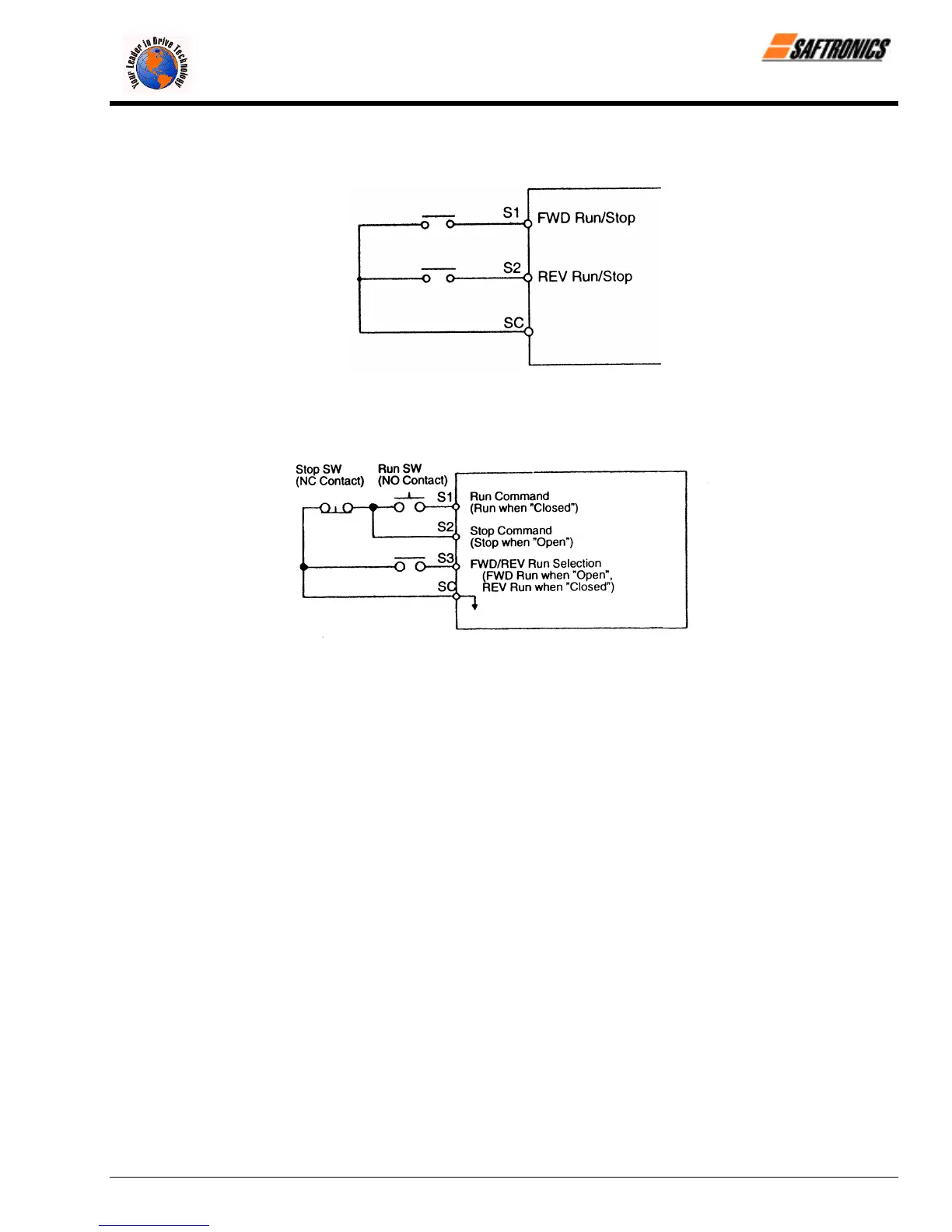

Figure 41 Terminal Function at 2-Wire Sequence Selection
§ Terminal Function at 3-Wire Sequence Selection (Setting: 1)
Figure 42 Terminal Function at 2-Wire Sequence Selection
§ LOCAL/REMOTE Selection (Setting: 5)
Selects operation reference by the Digital Operator or by the control circuit terminal. LOCAL/REMOTE selection is
available only during stop.
Open : Run according to the setting of Operation mode selection (n022).
Closed : Run by frequency reference and RUN command from the Digital Operator.
(Example) Set n002 to 3.
Open : Run by frequency reference from control circuit Terminals FV, FI and RUN command from control
circuit Terminals S1, S2.
Closed : Run by frequency reference and RUN command from the Digital Operator.
§ Serial Communication/Control Circuit Terminal Selection (Setting: 6)
Selects operation reference by serial communication or by the control circuit terminal. This selection is available only
during stop.
Open : Run according to the setting of Operation mode selection (n022).
Closed : Run by frequency reference and RUN command from serial communication.
(Example) Set n002 to 3.
Open : Run by frequency reference from control circuit Terminals FV, FI and RUN command from control
circuit Terminals S1, S2.
Closed : Run by frequency reference and RUN command from serial communication.
