Page 2-2 F@ST 2704R Reference Manual - 253526032-A
Sagemcom Broadband SAS document. Reproduction and disclosure prohibited
2-
Description and connection
of route
2.1 Description

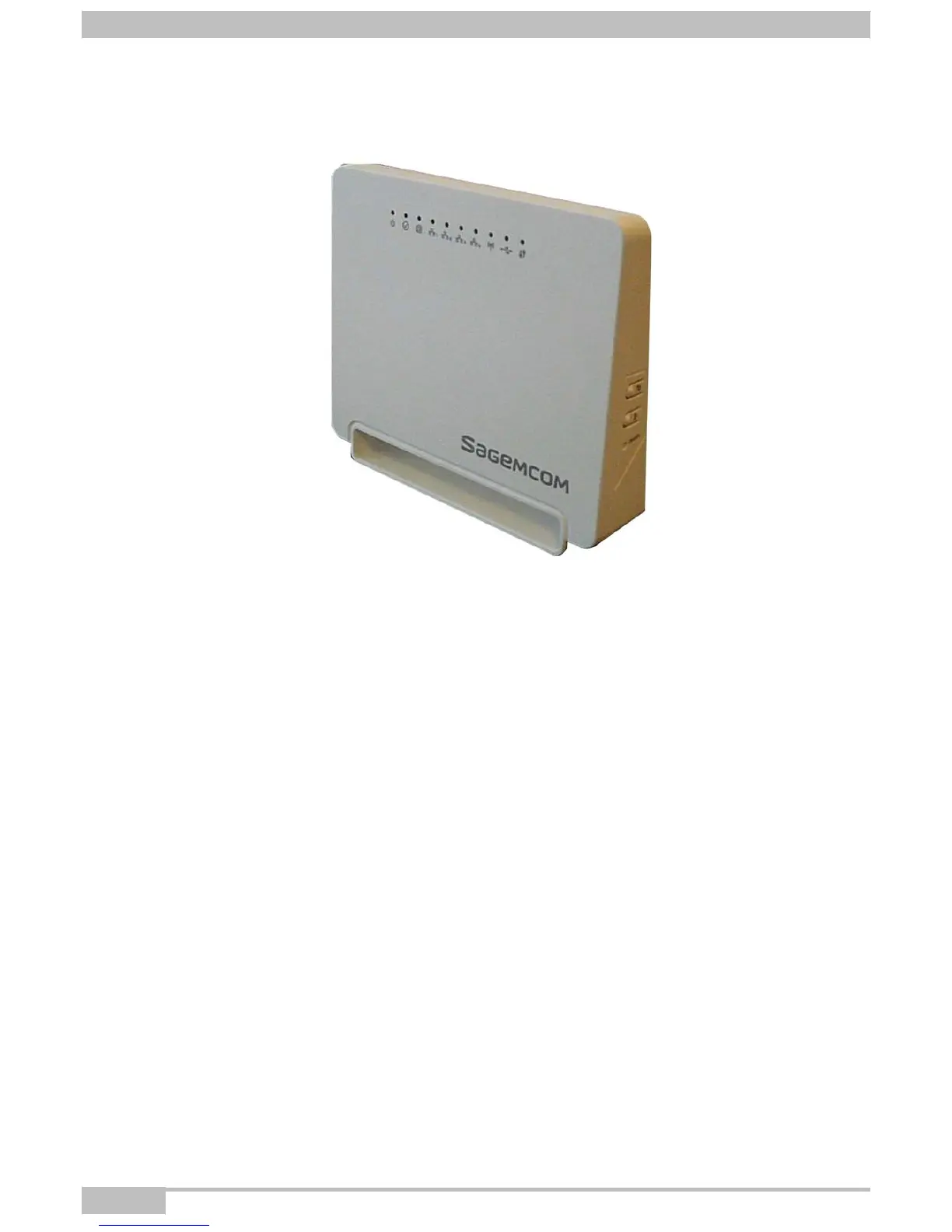

The following figure gives an overview of a router F@ST 2704R.
Figure 2.1 - Overview of
case
This case consists principally of a lid and a base. Inside is a printed circuit equipped with electronic
components.
The front face of the lid has ten display LEDs (see § 2.1.2).
The base has the LED ideograms and the manufacturer logo.
Behind the base is a label on which the product's identification code, serial number and barcode are shown.
