2.3 Installation of your
F@ST
2704R
2.3.1
Powering
up
1. First connect the end of the mains adapter lead, supplied with the equipment, to the Power socket on
your router.
2. Connect the other end of the mains adapter lead to a nearby power outlet.
3. The router switches on automatically.
4. The LED will light up first, followed by the four Ethernet LEDs (1 to 4), then these last four LEDs will
be off. The
and Ethernet (which corresponds to the connected interface) LEDs should be steady
and the
LED blinks during the establishment of the ADSL link, then steadies like the LED.
The
LED goes from blinking to steady when a PPP session has been created successfully.
Note
The powering up process lasts around one minute.
2.3.2
C
onnecting
the
ADSL
cable
1. Connect one end of the RJ11/RJ11 cable supplied with the equipment to the LINE socket of your
router.
2. Connect the other end of the cable as shown in the following figure.

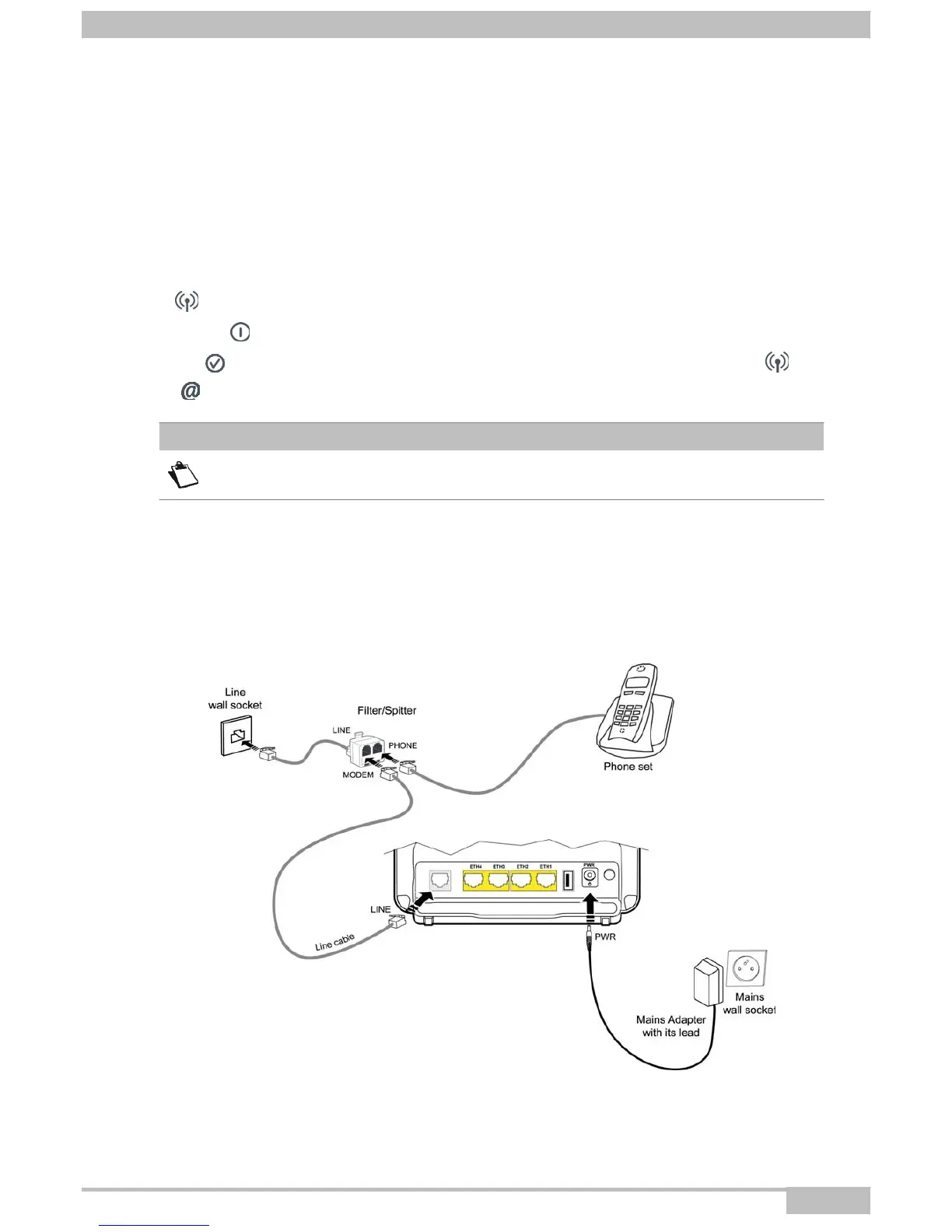

Figure 2.3 - ADSL line / Power Supply Connection
