Page 2-4 F@ST 2704R Reference Manual - 253526032-A
Sagemcom Broadband SAS document. Reproduction and disclosure prohibited
2-
Description and connection
of route
2.1.2
LEDs and
buttons
2.1.2.1 On the front panel

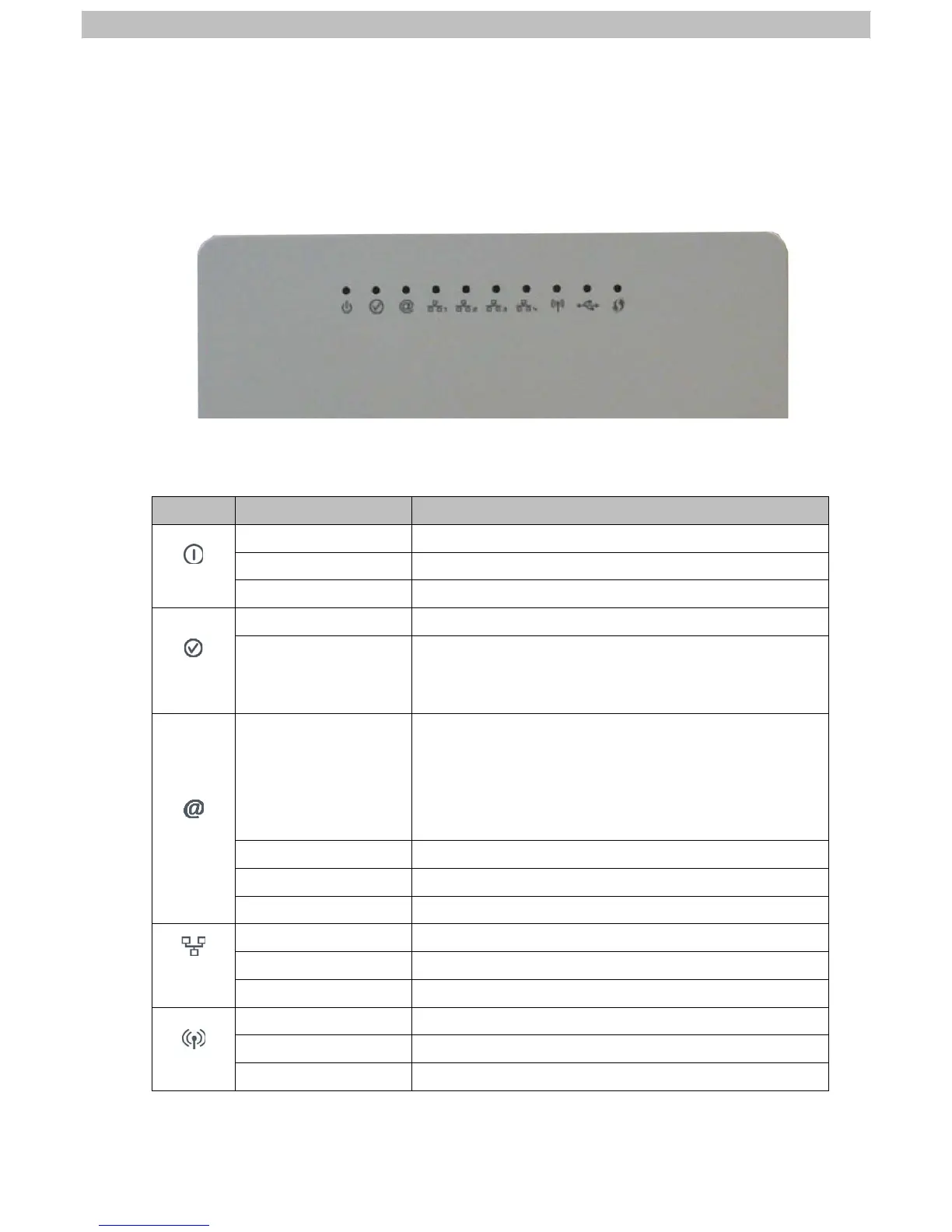

The following table describes the meaning of the LEDs on the front panel of the router:
LED
Status
Meaning
Off Power Off
Green Power On
Power
Red Router in rescue mode
Green steady ADSL Up
ADSL
Green blinking
• ADSL Synchronisation in progress
or
• down
Off
• Power Off
or
• The Internet account must be configured
or
• Bridge mode
Green steady The Internet account is configured
Green blinking Tx/Rx traffic
Internet
Red Invalid or unauthorised Internet account
Off No link detected on the Ethernet port
Green steady Ethernet port has detected a link with 100 Mbps device
LAN x
(1 to 4)
Green blinking Tx/Rx traffic at 100 Mbps
Off Wi-Fi deactivated
Green steady Wi-Fi activated
WLAN
Green blinking Wi-Fi Tx/Rx
