6.4.2 WAN Service

Object: This menu is associated with the remote network. It is used to display the list of all the configured
PVCs, and to add PVCs or remove them.

• In the Advanced Setup menu, select WAN Service.

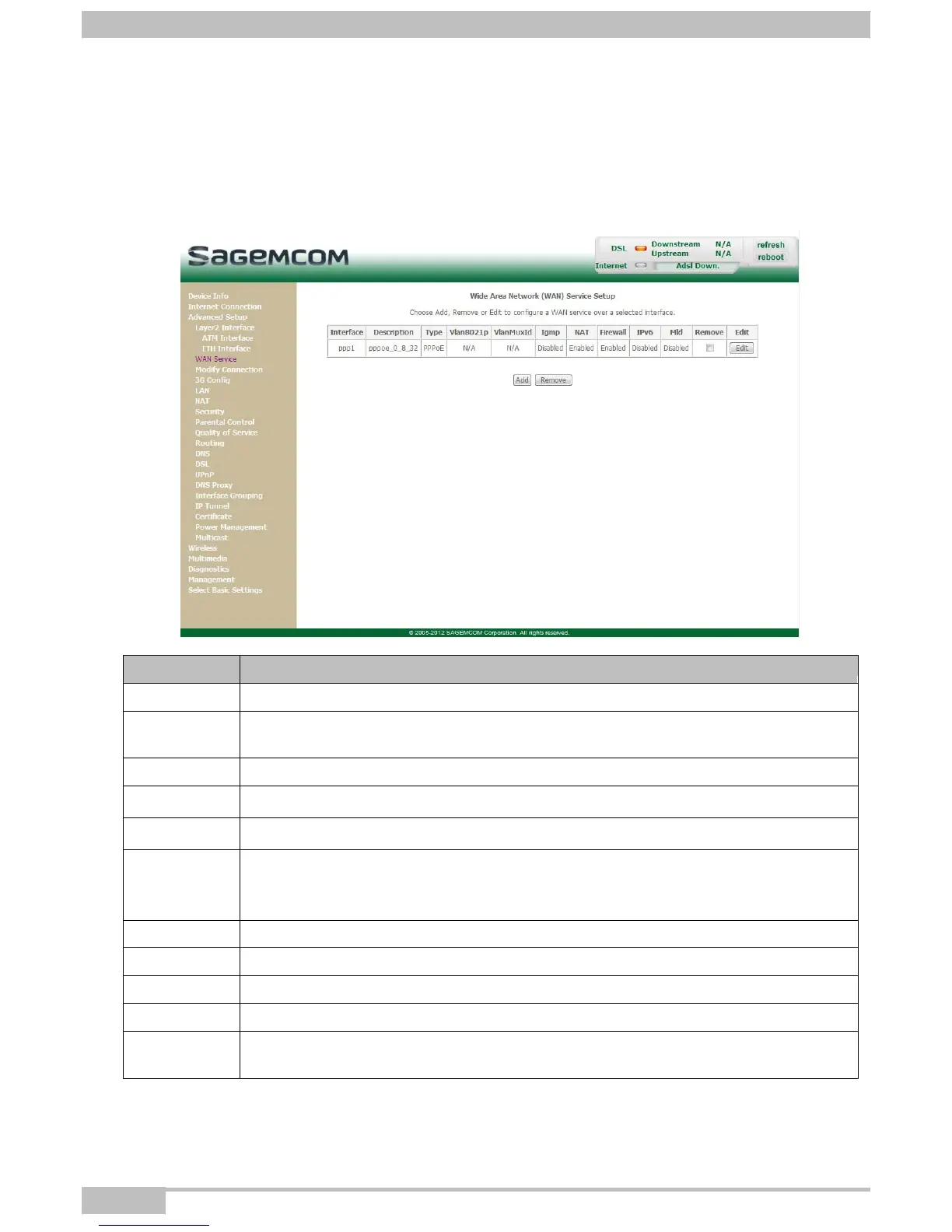

The following screen opens:

Field Meaning
Interface Name, allocated automatically, associated with the service name (for example, ppp0).

Description
Name of the ATM service. This name is made up as follows: Protocol_VPI_VCI_Index
For example: pppoe_0_8_32.
Type Data flow encapsulation mode.
Vlan8021p
a
Value of the 802.1P Priority.
VlanMuxId
a.
Value of the 802.1Q VLAN ID.


Igmp
Status (Enabled or Disabled) of the Igmp function.
Note: This function enables the distribution of Multicast datagrams over the local
network (LAN) and interaction between the router and the local network hosts.
NAT Status (Enabled or Disabled) of the NAT.
Firewall Status (Enabled or Disabled) of the Firewall.
IPv6 Status (Enabled or Disabled) of the IPv6.
Mld Status (Enabled or Disabled) of the MLD.

Remove
Check this box and clik on the [Remove] button to remove the selected object from
the list.
a. These values only appear if the WAN service is configured over a DSL ATM interface using VLAN MUX
Mode.
