F@ST 2704R Reference Manual - 253526032-A
Sagemcom Broadband SAS document. Reproduction and disclosure prohibited
Page 2-9
2-
Description and connection
of router
2.3.4
C
onnecting
the
Ethernet interface
of your router
to
your TV decoder

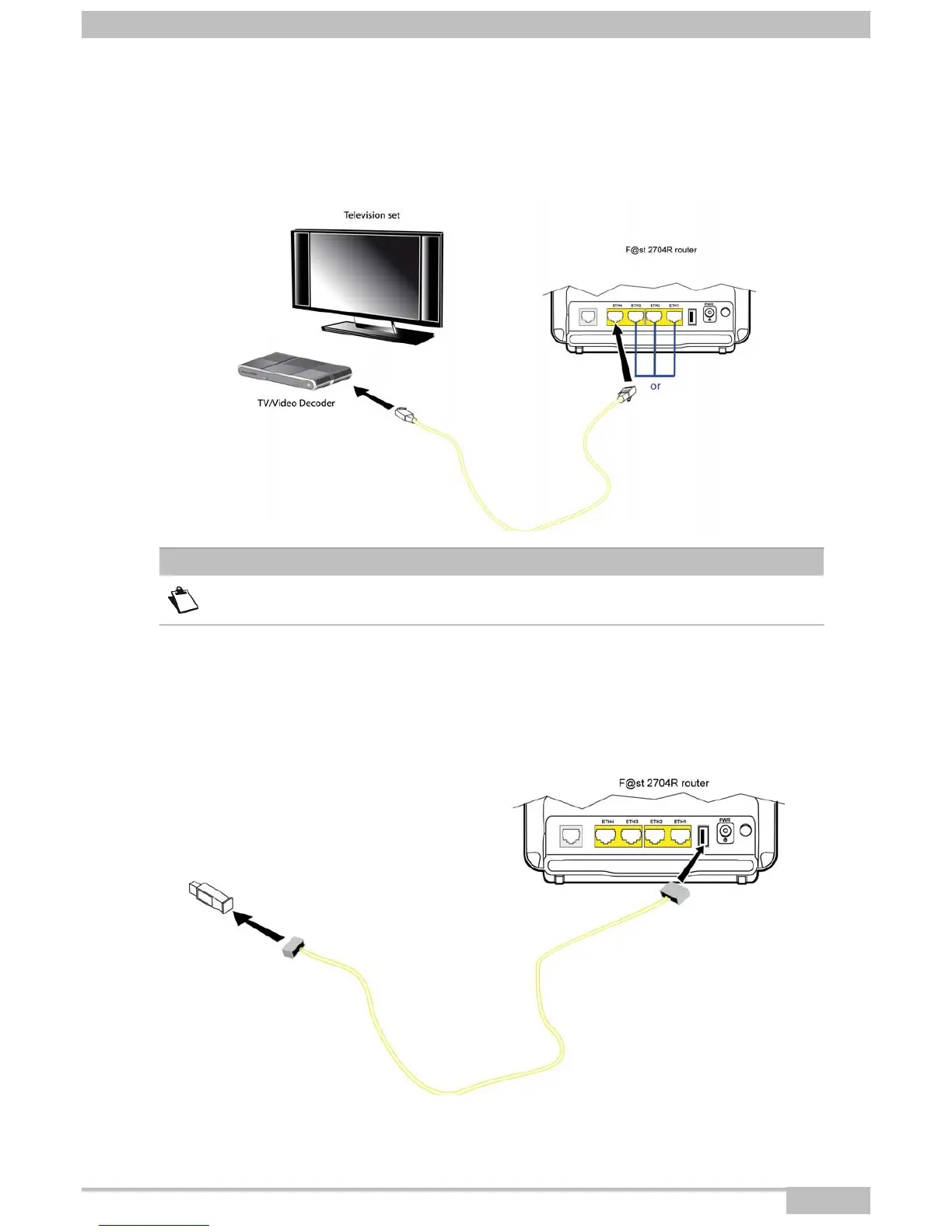

1. Connect the end of the yellow Ethernet cable (RJ45/RJ45) supplied in the pack to the Ethernet fixed
connector (marked LAN1, LAN2, LAN3 or LAN4) of your router.
2. Connect the other end of the cable to a TV decoder.
Note
For connection to the decoder, refer to the manufacturer's documentation.
2.3.5
C
onnecting
the
USB interface
of your router
1. Connect the end of the USB cable (type B Slave female USB Connector) to the USB interface of your
router.
2. Connect the other end of the cable to your USB material (printer, Flash memory, USB key or hard
disk).
Figure 2.4 - USB Interface
Connection
