Installation of the SAILOR 6390 Navtex Receiver
3-2 Chapter 3: Installation 98-139768-A
3.2 Installation of the SAILOR 6390 Navtex Receiver
You can mount the SAILOR 6390 Navtex Receiver on a desktop or on a wall. Provide
sufficient space to access the connectors and the fuse. Allow sufficient space for the
cables., see Figure 3-2: Drilling plan on page 3-3.
Compass safe distance
Make sure that the SAILOR 6390 Navtex Receiver is far enough from any magnetic
compass. See the following table for the safe distance after magnetization between the
nearest point of the device and the centre of the compass at which it will produce a
deviation of 0.3°.
3.2.1 Dimensions
Device Compass safe distance
SAILOR 6390 Navtex Receiver
20 cm (Standard magnetic compass)
20 cm (Emergency magnetic compass)
SAILOR 6004 Control Panel
60 cm
Table 3-1: Compass safe distances

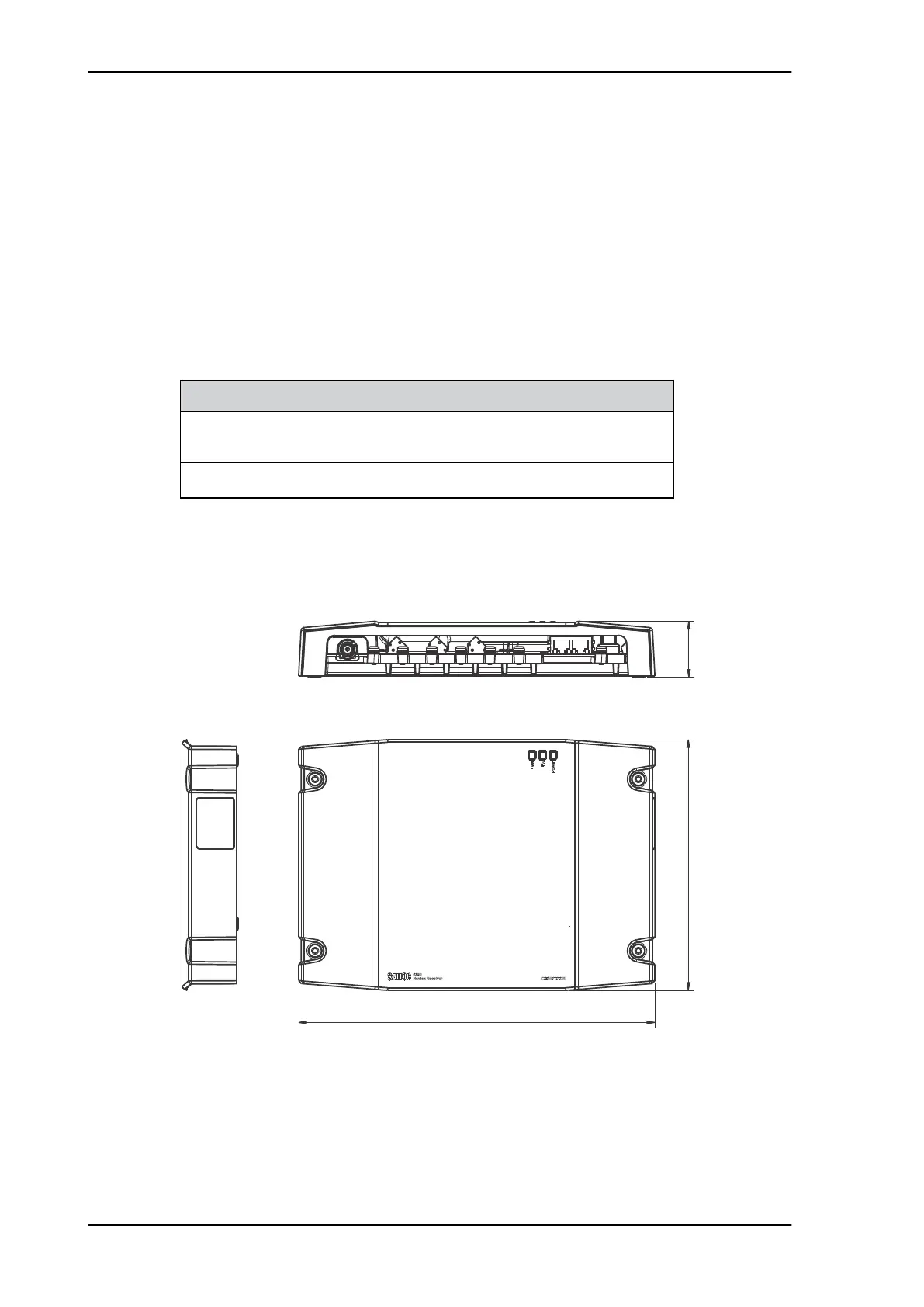

Figure 3-1: Dimensions
190 mm
270 mm
42.5 mm
