Installation of the SAILOR 6390 Navtex Receiver
98-139768-A Chapter 3: Installation 3-3
3333
Installation

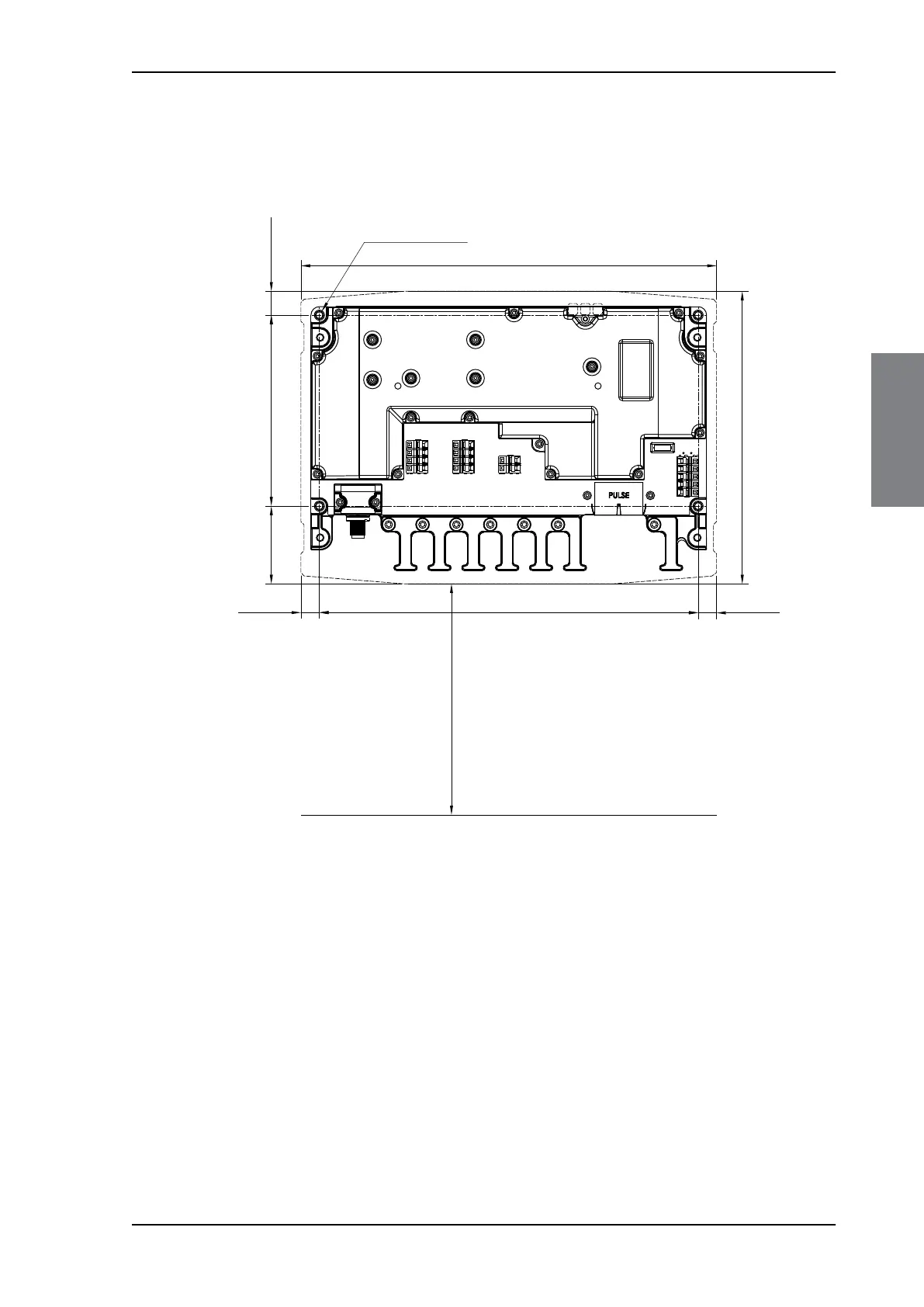

3.2.2 Drilling plan
See the following drilling plan for installing the SAILOR 6390 Navtex Receiver.
Leave the lid of the SAILOR 6390 Navtex Receiver off until all connections to the spring-
loaded terminals are made and initial testing is passed successfully.
3.2.3 Navtex antenna
You can fit a suitable active or passive antenna for Navtex reception. Cobham recommends
to use an active antenna suitable for tri-band Navtex reception if the environment allows it.
Suitable antennas are:
• Navcom NA 3S
• Procom NTA 3E-SHT
• Sirius A159
or similar.
Figure 3-2: Drilling plan
Minimum cable entry
15.5 mm
124 mm
50.5 mm
12 mm
246 mm
12 mm
4 x M4 or hole for
self-tapping ø3.8 mm
190 mm
270 mm
150 mm
