Sakura Tissue-Tek Prisma Plus Prisma-P-AD User Manual

Appendix 1
AK6-QE-006-03 Appendix - 2/3 05/2017
B. When a clearance for maintenance work is 100 to 200mm or less on the right of the instrument:
In this case, a minimum clearance of about 35mm may be needed on the rear of the instrument.

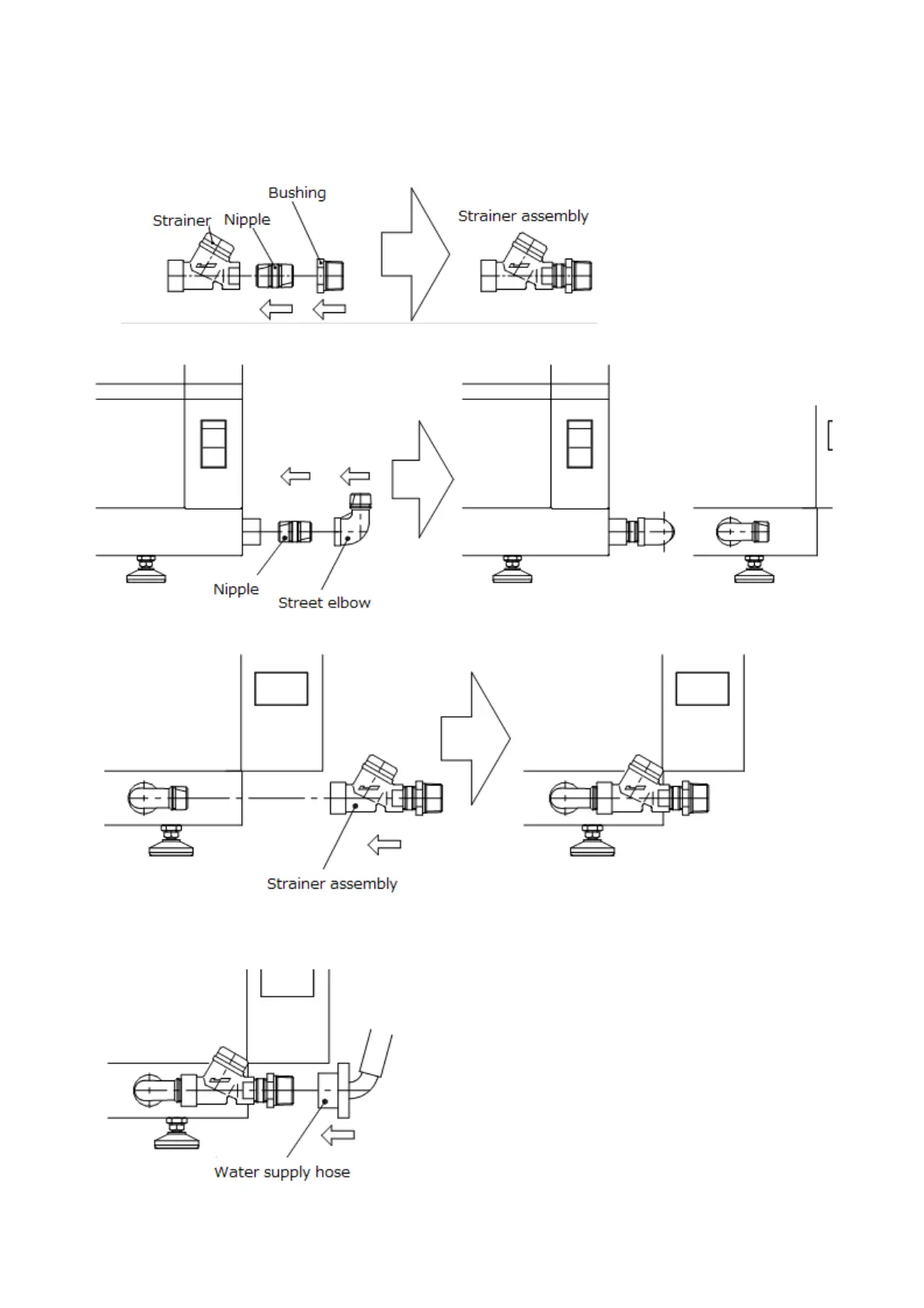

(1) Screw one nipple and bushing into strainer.
(2) Screw the other nipple and street elbow into water supply port located on the right side of the
instrument.
(3) Screw strainer assembly into street elbow.
(4) Screw the water supply hose onto the strainer. Connect the other end of the hose to a faucet or
water source, according to the section “9-2. Connecting the Water Supply Hose.
