◇ Ventilation system
• Ventilation device
• Local exhaust device
• Exhaust port
◇ Optional items for ventilation
• 38mm dia. exhaust duct connection adapter
• 75mm dia. exhaust duct connection adapter
◇ How to connect the instrument to a ventilation system
(1) Attach the 38mm or 75mm dia. exhaust duct connection adapter to the exhaust port at the
back of the left side of the instrument.
(2) Insert a duct hose to the connection adapter and fasten it with a hose clamp.
(3) Connect the other end of the duct hose to near the ventilation system or local exhaust system
or to the outdoors.
* The entire length of the duct hose should be less than 10 meters and not be twisted or
pressed.
* Since condensate may be built up inside the duct hose if ambient temperature is low, keep
the duct hose straight all the way and place a drain receiver like a tray under the end of the
duct hose.
9-5. Installing the Activated Carton Filter
(1) Make sure that the instrument is switched off and the power cord is unplugged.
(2) Remove the tape that holds the filter cover. Open the filter cover by pressing down the button
located at the top center of the cover.
(3) Place the activated carbon filters side by side in a horizontal position. Close the filter cover.

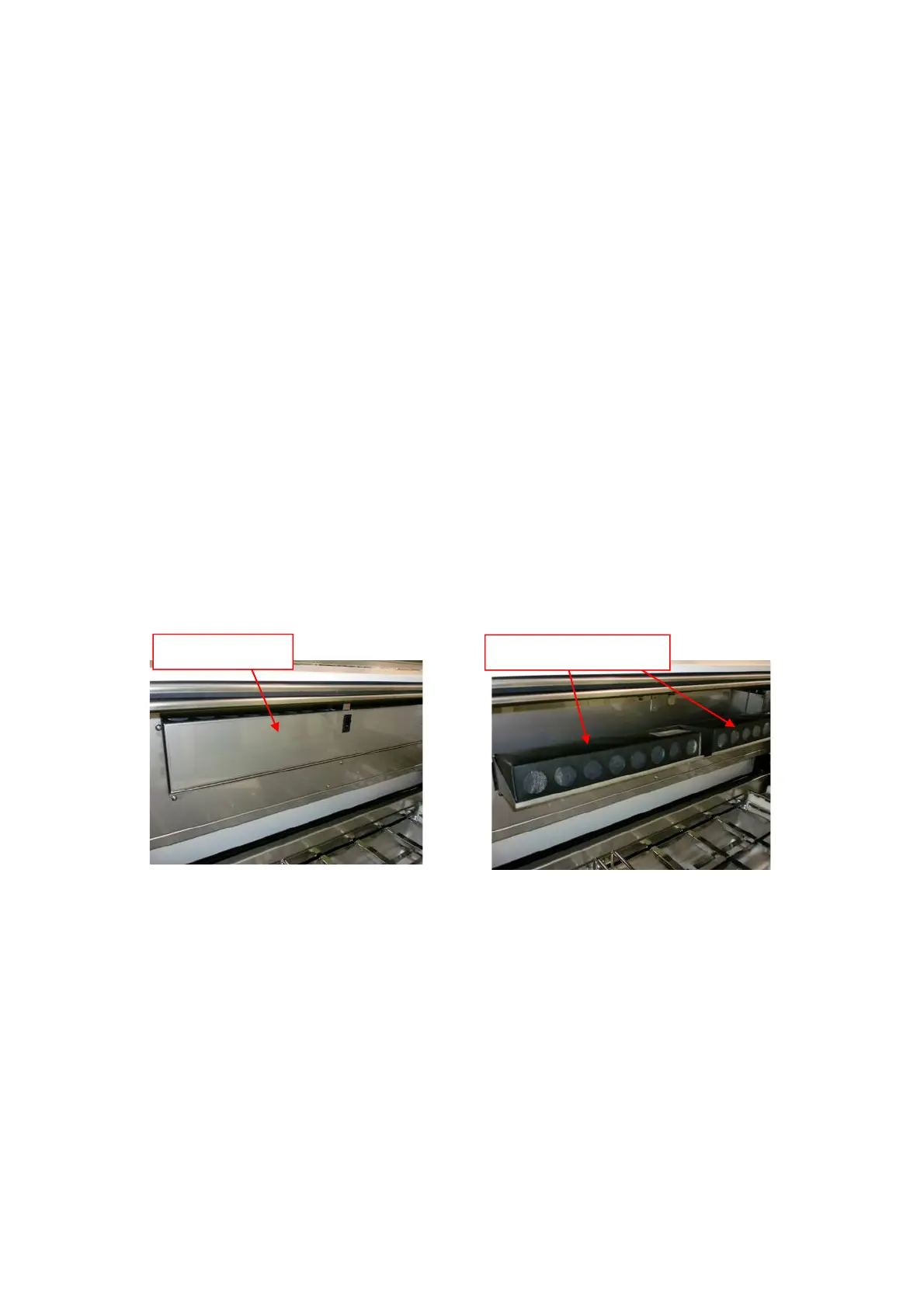

Filter cover
Activated carbon filters
