Sakura Tissue-Tek Prisma Plus Prisma-P-AD User Manual

Appendix 1
AK6-QE-006-03 Appendix - 1/3 05/2017
<Installation Procedure for Water Supply Strainer for Prisma–P–ED and –ES Models>
According to a clearance available on the right of the instrument, attach the water supply strainer
provided with the instrument to the water supply port before connecting the water supply hose.
A. When a clearance of 200mm or more for maintenance work is available on the right of the
instrument:

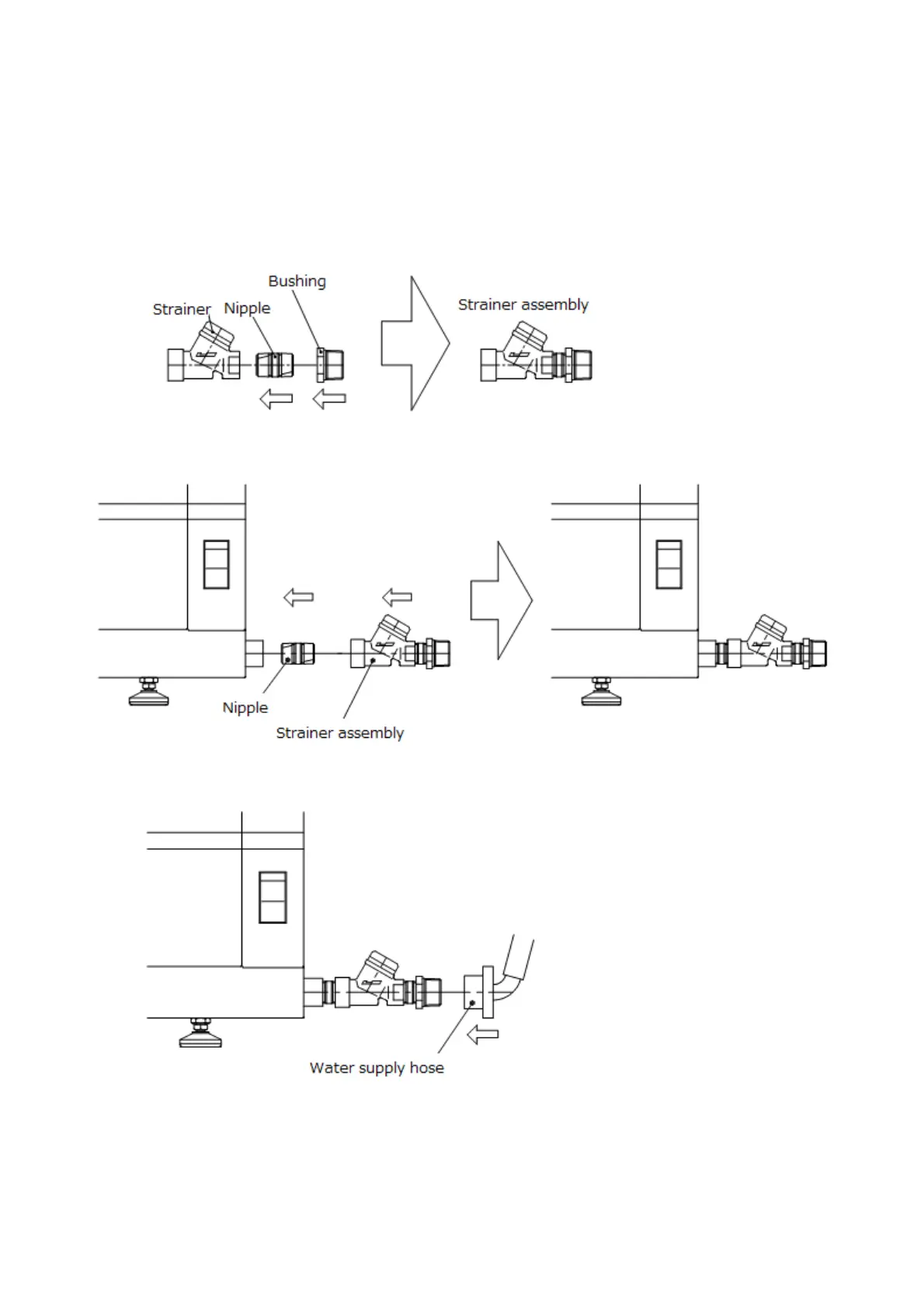

(1) Screw one nipple and bushing into strainer.
(2) Screw the other nipple and strainer assembly into water supply port located on the right side of the
instrument.
(3) Screw the water supply hose onto the strainer. Connect the other end of the hose to a faucet or
water source, according to the section “9-2. Connecting the Water Supply Hose”.
