Sam4s ER-420F - ASSY CASE-UPPER Parts List (ER-420 F)

6 Exploded Views and Parts List
SAM4S ER-420M/F SERIES 6-5
6-2 B. ASS’Y CASE-UPPER(ER-420F)

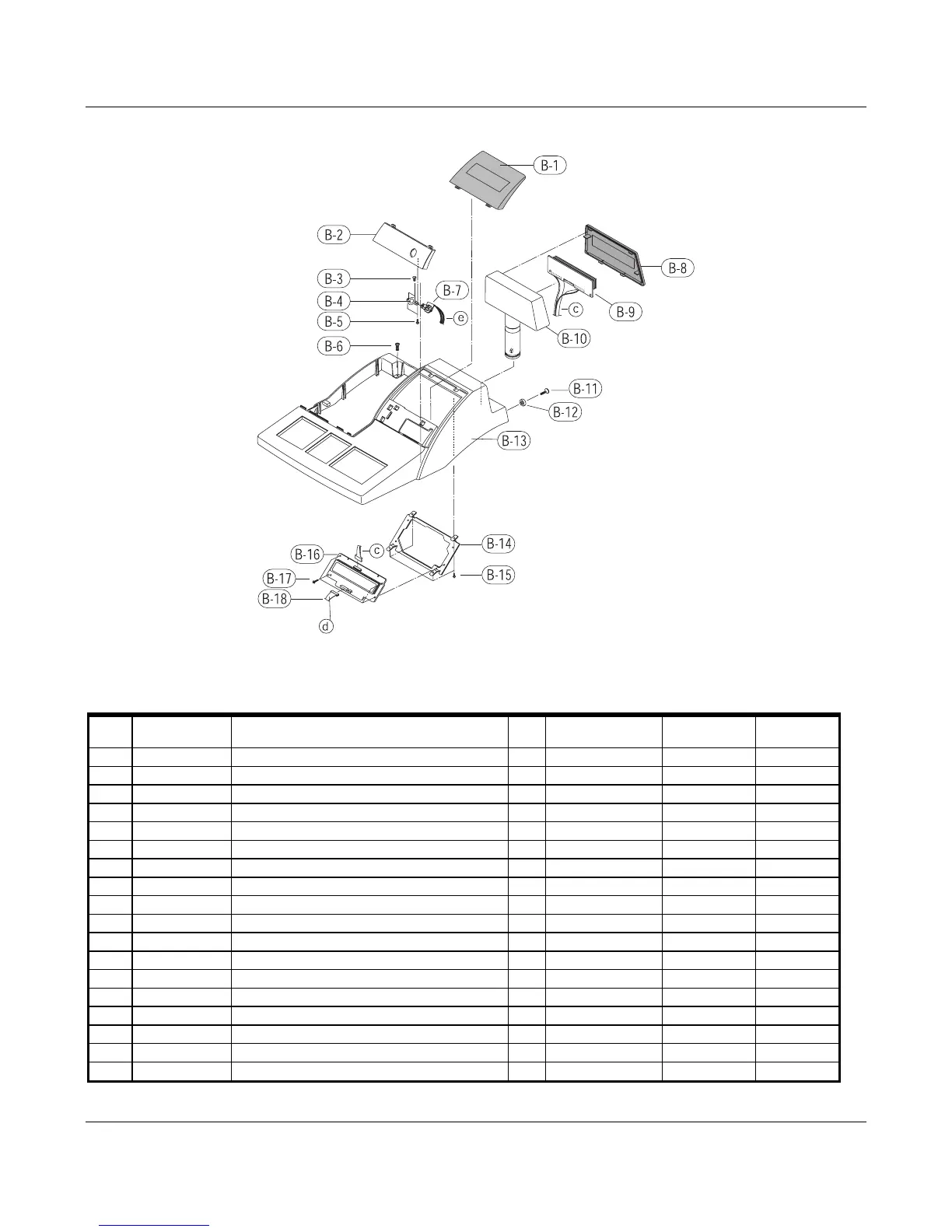

Figure 9-5 ASS’Y CASE-UPPER (ER-420F)
B. ASS’Y CASE-UPPER(ER-420F)
No. Parts No. Description / Specification Q`t
y
Design-Location Serviceable Remark
B-1 JK72-20063A PMO-WINDOW DISPLAY 1 Y
B-2 JK72-40207M PMO-COVER MODE S/W:ER-420F 1 Y
ENGLISH
B-3 6002-000319 SCREW-TAPPING: PH,+,2,M3,L8,ZPC(YEL) 2 Y
B-4 JK70-10004A IPR-BRKT MODE_S/W 1 Y
B-5 6002-000319 SCREW-TAPPING: PH,+,2,M3,L8,ZPC(YEL) 2 Y
B-6 6002-000172 SCREW-TAPPING: PH,+,2S,M4,L15 1 Y
B-7 JK96-10044A MODE KEY ASSY 1 Y
B-8 JK72-40209B PMO-WINDOW TURRET 1 Y
B-9 JK92-01231A PBA TURRET 1 Y
B-10 JK72-00015A PMO-TURRET BODY 1 Y
B-11 6001-000367 SCREW-MACHINE: FH,+,M4,L10 1 Y
B-12 JK70-40305A ICT-SHAFT MOLDING 1 Y
B-13 JK72-00012D PMO-CASE UPPER:ER-420F,STD 1 Y
B-14 JK70-10407A IPR-BRKT WINDOW_PCB 1 Y
B-15 6002-000175 SCREW-TAPPING: PWH,+,2,M3,L8,ZPC(YEL) 4 Y
B-16 JK92-01242A PBA SUB 1 Y
B-17 6002-000175 SCREW-TAPPING: PWH,+,2,M3,L8,ZPC(YEL) 4 Y
B-18 JK39-40600A HARNESS-DISPLAY:350mm 1 Y
