7 PCB Layout and Parts List
SAM4S ER-420M/F SERIES 7-5

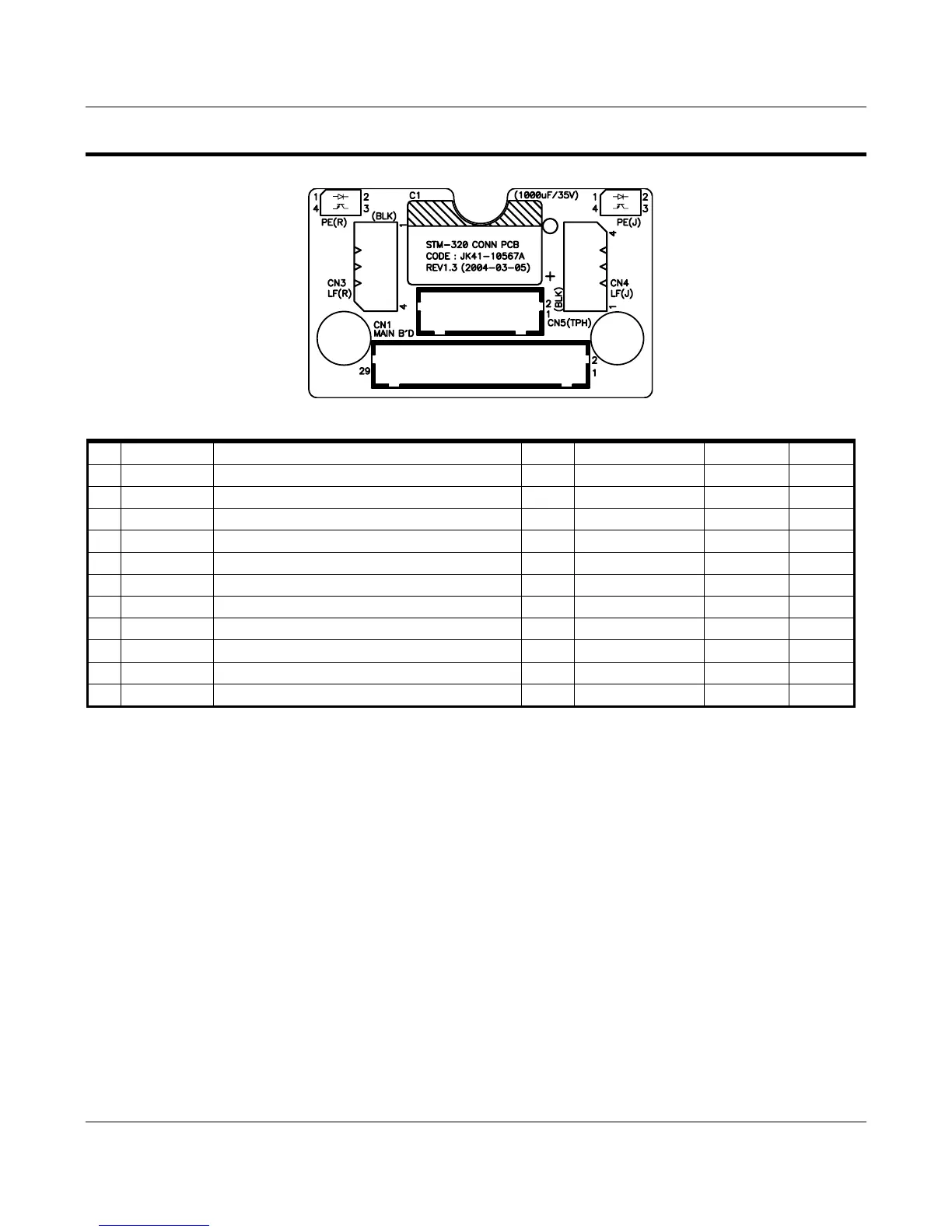

7-2 STM-320 Printer PCB Layout
No Part-No Description / Specification Q’TY Design Location Serviceable Remarks
JK92-01265A PBA SUB-CONNECTION BOARD:STM-310/320 1 Y
2401-000132 C-AL:1000uF,35V,20%,SHL35VB1000,12.5x20m 1 C1 Y
3711-004105 WAFER;BOX-HEADER,1R,4P,2.5mm,STRAIGHT 1 CN3 Y
3711-004105 WAFER;BOX-HEADER,1R,4P,2.5mm,STRAIGHT 1 CN4 Y
3711-002003 CONN-HEADER:16P,2R,2mm,ST,BLK,YDW200-16 1 CN5 Y
3711-000840 CONNECTOR-HEADER:BOX,30P,2R,2MM,STRAIGHT 1 CN1 Y
0604-000158 REFLECT-SENSOR:SG-105F,4P,STM-320 1 U1 Y
0604-000158 REFLECT-SENSOR:SG-105F,4P,STM-320 1 U2 Y
JK41-10567A PCB-CONNECTION:STM-320,FR-4,2L,T1.6mm 1 PCB Y
JK39-40632A HARNESS-CONNECTION;STM-320,16P,60mm,UL10 1 CONN B'D~TPH Y
JK39-00012A CBF-HARNESS-KEY OPTION:SPS-1000,UL1061,U 1 CONN B'D~MAIN B'D Y
