7 PCB Layout and Parts List
7-6 SAM4S ER-420M/F SERIES

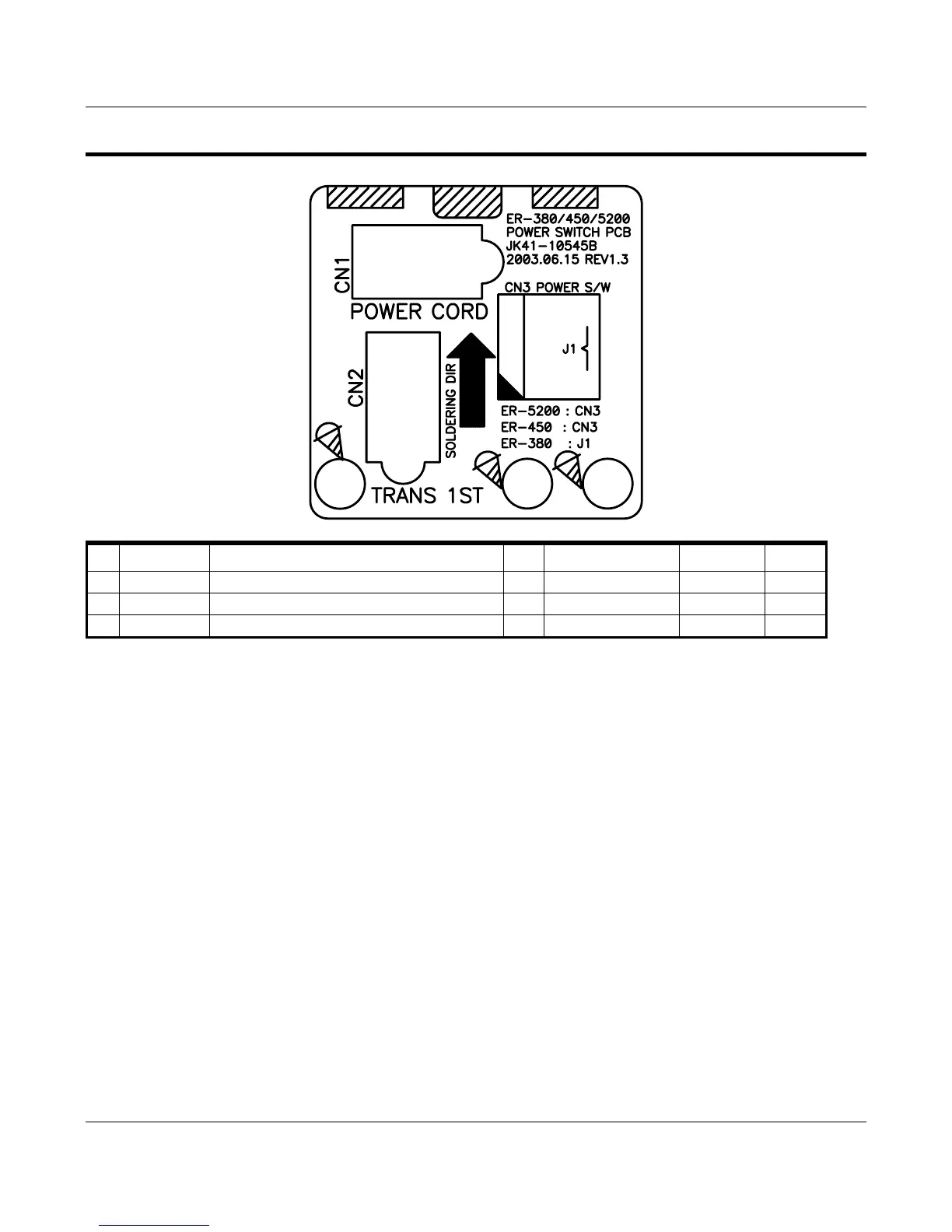

7-3 Power Switch PCB Layout
No Part-No Description / Specification Q’TY Design Location Serviceable
Remark
s
- 3711-000190 CONNECTOR-HEADER:1WALL,2P,1R,7.92mm,STRA 1 CN3 Y
- 3711-000829 CONNECTOR-HEADER:BOX,2P,1R,6.2mm,STRAIGH 2 CN1, CN2 Y
- JK41-10545B PCB-POWER SWITCH:ER-52/5500,FR-1,1L,T1.6 1 PCB Y
To Next Page
