SAME SOLARIS 35 User Manual

SECTION III USE
Rear - central PTO
The PTO can be supplied in the following configurations:
•
540
•
540 - 1000 rpm
•
540 - 540 ECO rpm
•
540 - 1000 rpm and synchronised
•
540 - 540 ECO rpm and synchronised
•
540 - 540 ECO rpm and synchronised + central

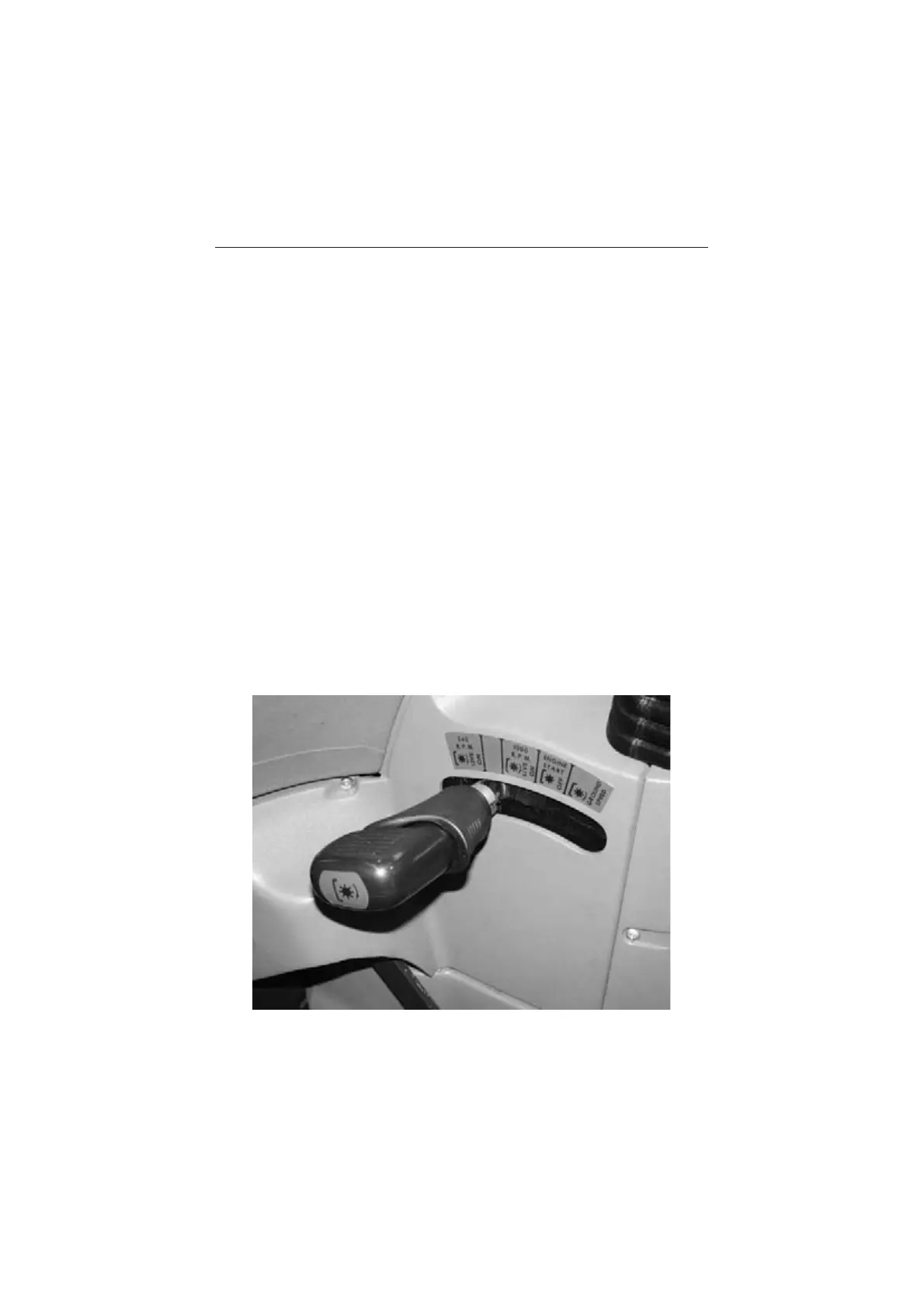

The lever shown in the figure below selects the drive (REAR - CENTRAL)
and PTO speed.
To operate this lever, first disengage the PTO clutch using the clutch lever
(Page 33), then pull the lever lock up towards the knob and move the lever
in the required direction.
Said lever has 4 positions::
1 - Engagement position rear P.T.O. 540 r.p.m.
2 - 1000 r.p.m. position - rear P.T.O. and underside P.T.O.
3 - Neutral
4 - Engagement position synchro mesh P.T.O. for rear shaft end.
PTO speed selector
41
