SECTION III USE
Gearbox controls
The transmission comprises a 4-speed synchronised gearbox and 3
speed ranges.
A shuttle is fitted as standard to give a total of 12 forward gears and 12
reverse gears.
On request, the tractor can be equipped with a creeper range giving
another four gears for a total of 16 forward and 16 reverse gears.
The range gear lever is equipped with a locking ring to prevent accidental
operation.
To operate this lever, pull the locking ring up towards the knob and then
move the lever to the M, L or H position as required.
Next operate the main gear lever and the shuttle lever to select the
required drive direction.

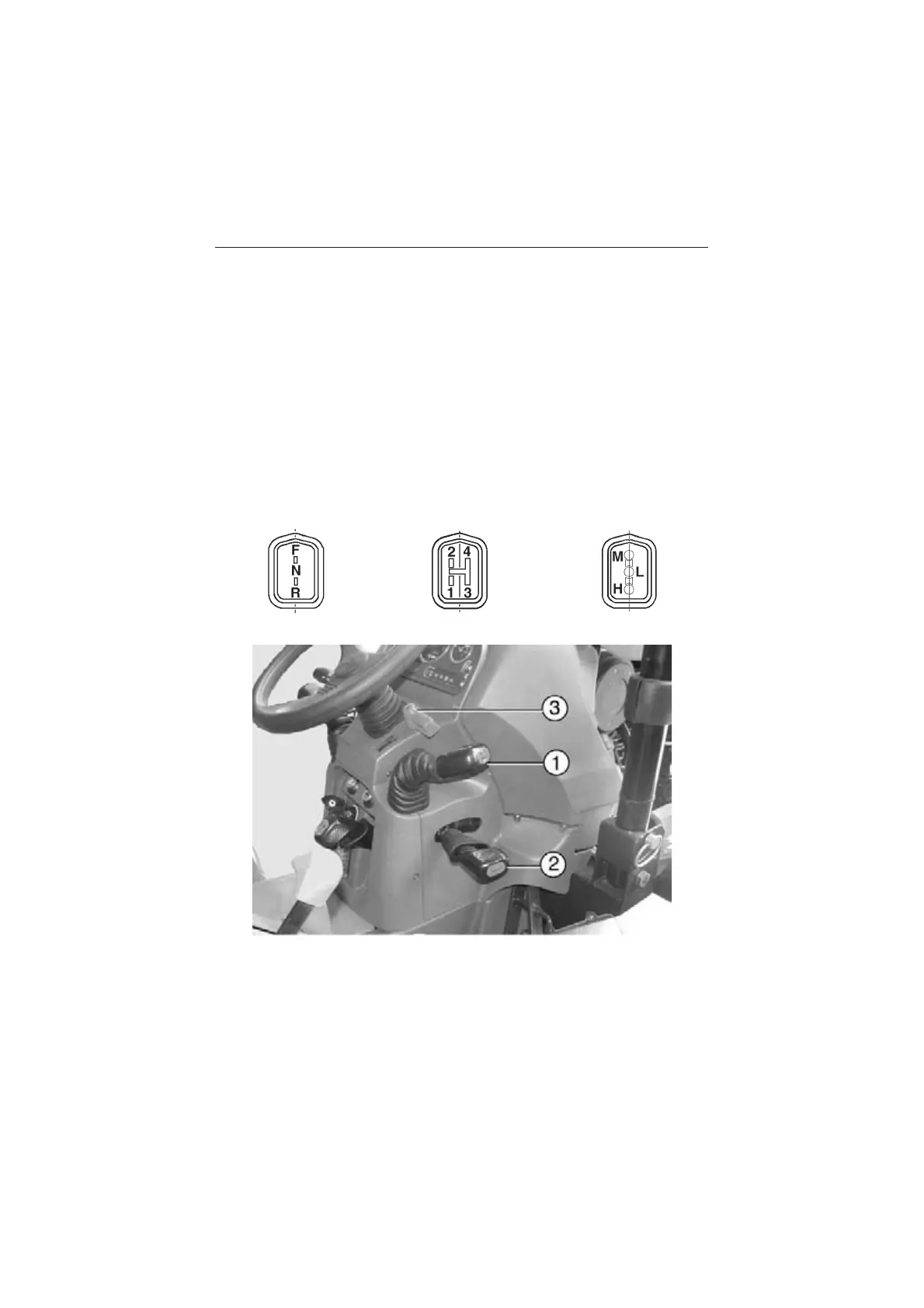

Reversing Control Gearshifting Control Speed range Control
Gear levers
1 - Main gear lever
2 - Range gear lever
3 - Hand throttle
35
NOTE: Before starting the tractor, the shuttle control lever must be in neutral
position.
