SECTION III USE

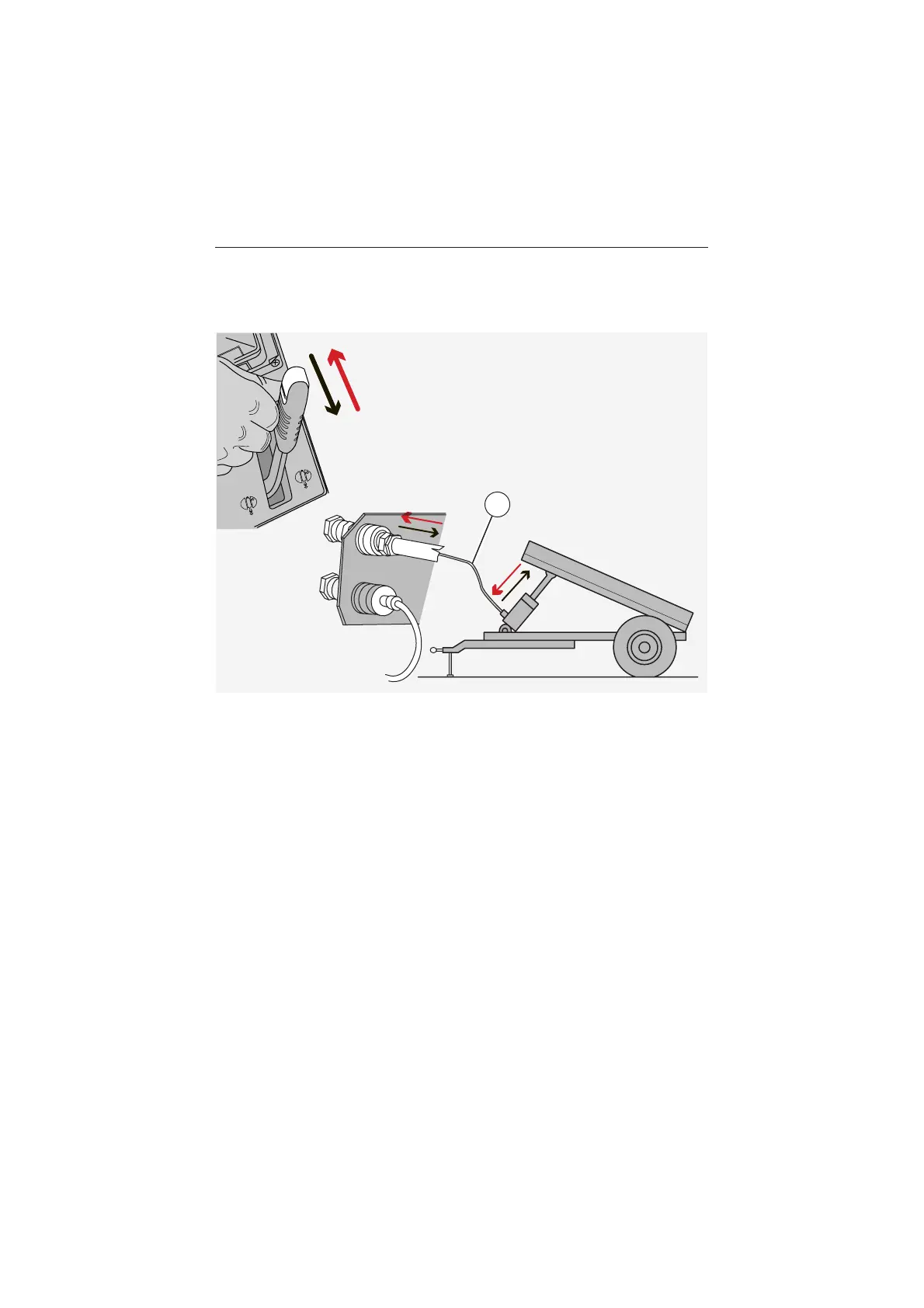

Example of connection to a single-acting cylinder
(Trailer with hydraulic tipping)
Note: hose A must be connected to an upper service coupler. To raise the
trailer, move the control lever back (control lever number on RED
background)
WARNING: always return the control lever to the neutral position as soon
as the external cylinder reaches the end of its stroke, in order to avoid
maintaining maximum pressure in the circuit for too long and thus causing
potentially dangerous stresses within the system.
To lower the trailer, move the control lever forward (control lever number
on YELLOW background)
63
4
4
3
A
NOTE: Make sure that different types of oil are never mixed.Ensure the
utmost cleanliness when making the hydraulic coupling between the
implement and tractor. Cover any couplers not in use with their protective
caps.
