SECTION III USE
Three-point linkage
The 3-point linkage is used to attach implements to the hydraulic lift.
When properly adjusted, it is suitable for the attachment of class I
implements.

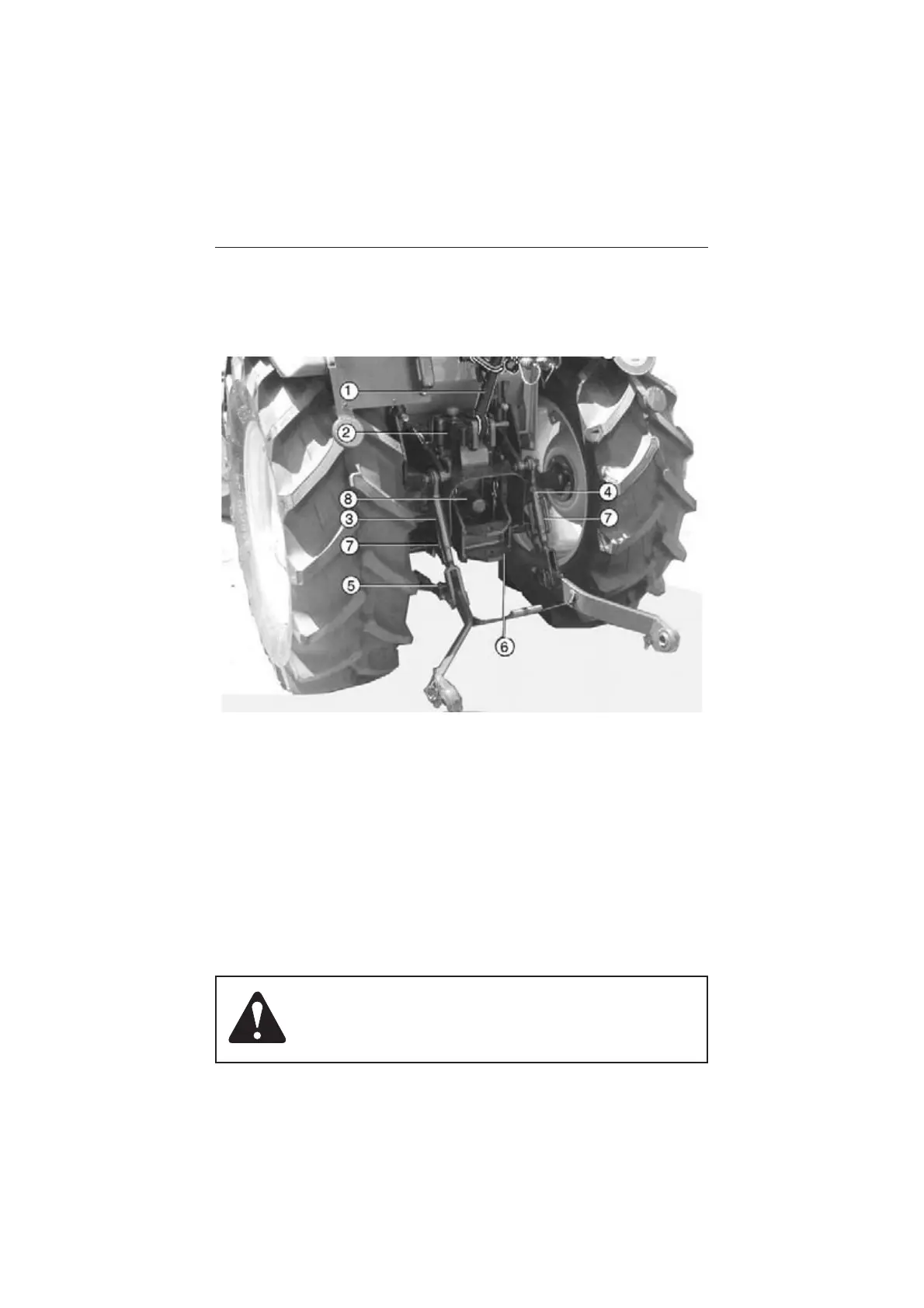

Rear view of tractor
1 - Top link
2 - Hydraulic lift
3 - Left-hand lifting rod (fixed)
4 - Right-hand lifting rod (adjustable)
5 - Telescopic stabilisers
6 - Quick-action hydraulic coupler
7 - Grease nipples
8 - Rear PTO stub shaft
9 - Towing hitch
69
NOTE: When adjusting the length of the top link of the 3-point hitch, take
care that it does not come apart and ensure that a sufficient length of the
threaded end of the turnbuckle is screwed into the turnbuckle housing to
withstand the tractive force applied when working.
WARNING: HITCHING TO THE REAR AXLE, OR ANY OTHER POINT
ABOVE THE SWINGING DRAWBAR, CAN CAUSE A REAR OVER-
TURN.
