SECTION III USE
The controls
The manual controls of the auxiliary services control valve consist of two
control levers, each with two positions, located to the right of the driving
position. These levers are equipped with locks to secure them in neutral
position. To lock the lever, rotate the fork so that it engages the shaft of the
control lever.

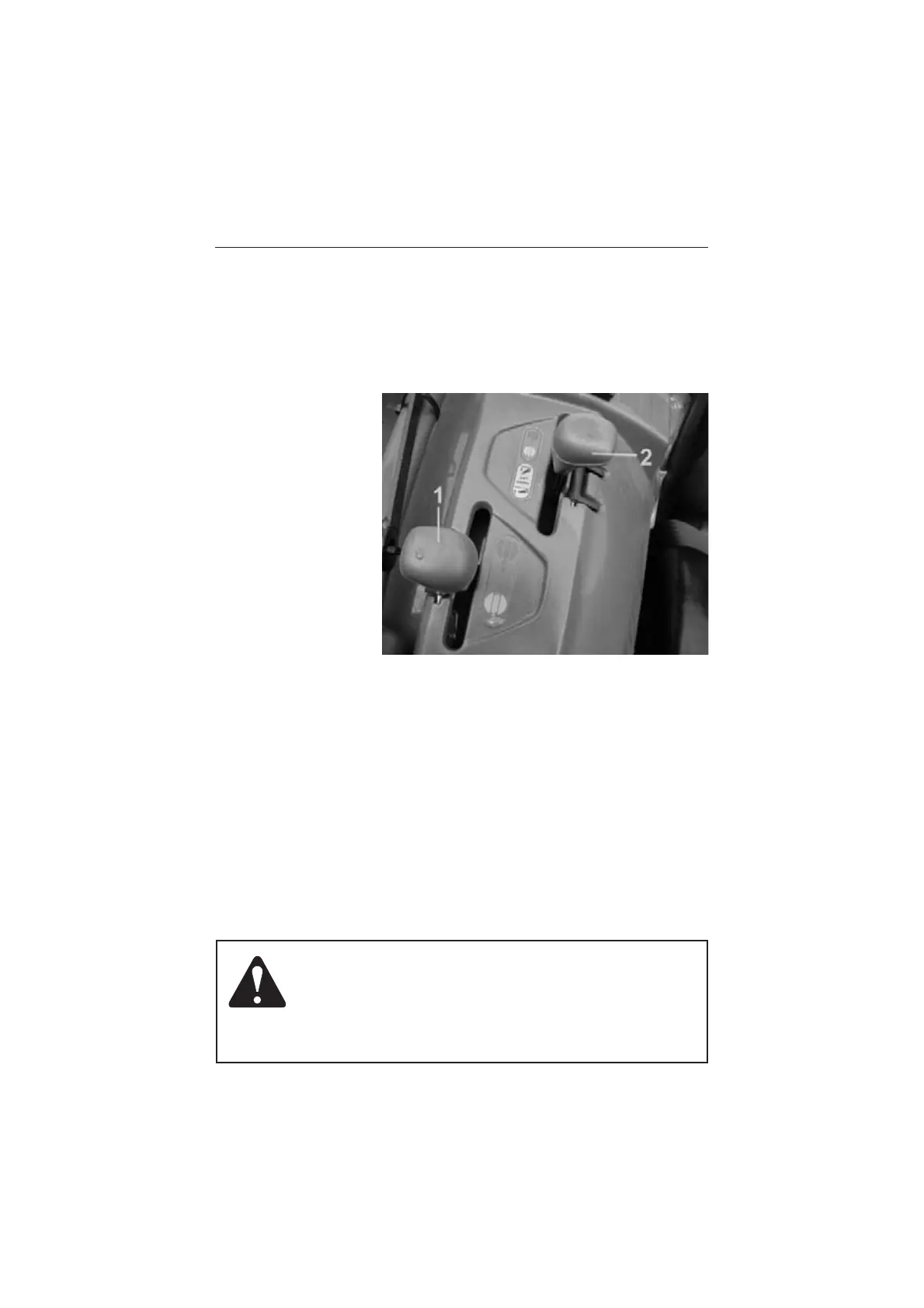

Hydraulic control valve
levers.
1 - Control lever - outer
hydraulic service
couplers.
2 - Control lever - inner
hydraulic service
couplers.
In the case of a double-acting control valve, moving the lever back
(cylinder symbol on RED background), will direct oil under pressure to the
upper service coupler. The oil returning from the implement ram can drain
to tank through the lower service coupler.
Moving the control lever forward (cylinder symbol on the YELLOW
background) will direct oil under pressure to the lower service coupler. The
oil returning from the implement ram can drain to tank through the upper
service coupler.
When the auxiliary control valves are not in use, the control levers must
always be in the neutral position.
56
DANGER: ON CONNECTING THE HYDRAULIC LINES OF THE IMPLE-
MENT TO THE HYDRAULIC LINES OF THE TRACTOR, ALWAYS FOL-
LOW CAREFULLY THE INSTRUCTION SHOWN ON THE TRACTORS
DECALS OR DESCRIBED INSIDE THIS MANUAL. WRONG CONNEC
-
TIONS OF THE HYDRAULIC LINES BETWEEN IMPLEMENT AND
TRACTOR COULD CAUSE UNEXPECTED MOUVEMENTS IN THE IM-
PLEMENTS, WITH SERIOUS RISK OF PERSONAL INJURY.
