SECTION III USE
System configuration
The heating system consist of two units:
•
Electric heater 3 and
blower unit 4 installed be-
hind roof console.
•
Power supplyng set, con-
sisting of an auxiliary al-
ternator 2 located front of
the engine and driven by
a belt directly linked to
the engine pulley. In the
event of the system fail-
ing to operate, check the
fuse in the roof terminal
box.

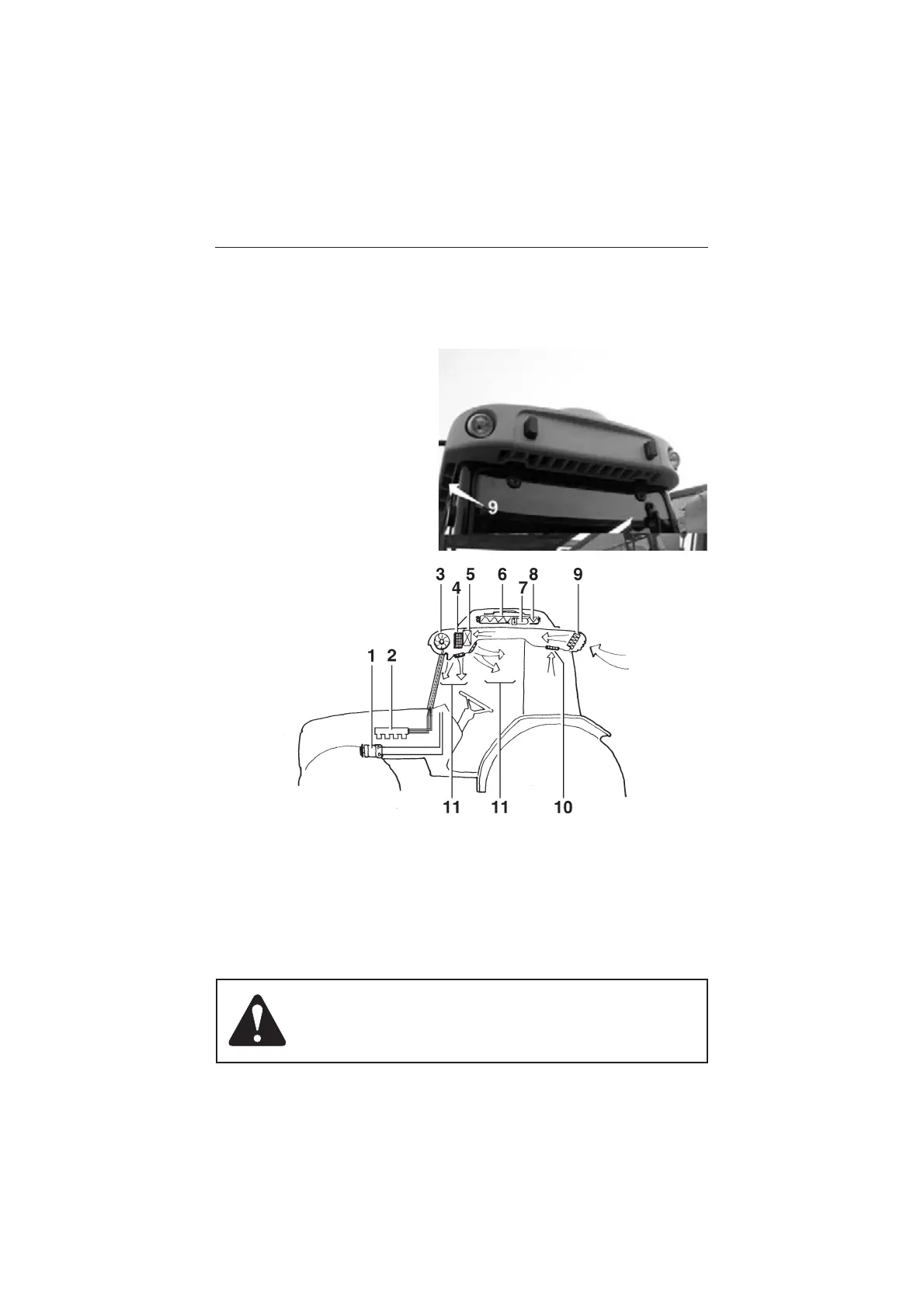

Configuration of the air ventilation, heating and conditioning system
1 - Compressor 7 - Dehydrating filter
2 - Engine coolant manifold 8 - Condenser
3 - 3 speed fan 9 - Air filter
4 - Electric resistence 10 - Recirculation inlets
5 - Evaporator 11 - Air diffusing outles
6 - Ventilator
82
CAUTION: ON TRAVELLING ON THE PUBBLIC ROAD WITH FRONT
IMPLEMENTS, IF THE VISIBILITY IS NOT ENOUGH (TRAFFIC LIGHTS
COVERED BY THE ATTACHED IMPLEMENT), PLEASE SWITCH ON
THE WORKING LIGHTS.
