SECTION VI ELECTRICAL SYSTEM
Rear light assemblies

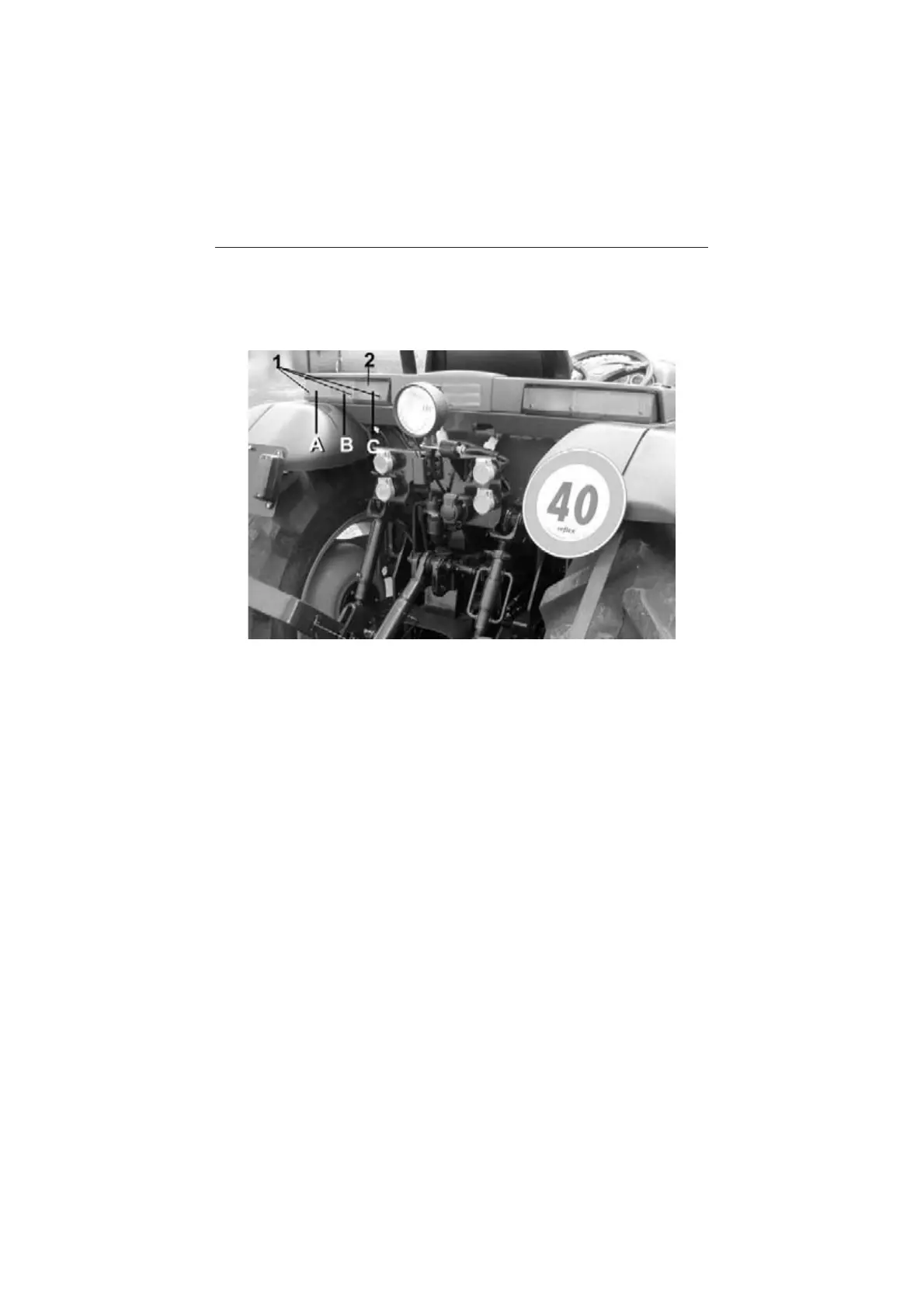

The tractor is equipped with two rear light assemblies on each fender (right
and left) comprising the following lights:
A - red tail light.
Bulb: DIN 72601-R5W 12V 5W
B - brake light.
Bulb: DIN 72601-P21 12V 21W
C - direction indicator light.
Bulb: DIN 72601-P21 12V 21W
To replace any of these bulbs, proceed as follows:
–
Remove the screws 1 securing the red or yellow-red lens 2.
–
Gently remove the lens 2 to access the bulb.
–
Turn the defective bulb counter-clockwise under slight pressure as far
as it will go.
–
Remove the bulb.
–
Insert the new bulb and turn clockwise under slight pressure as far as
it will go.
–
Replace the lens 2 and secure with the screws 1.
