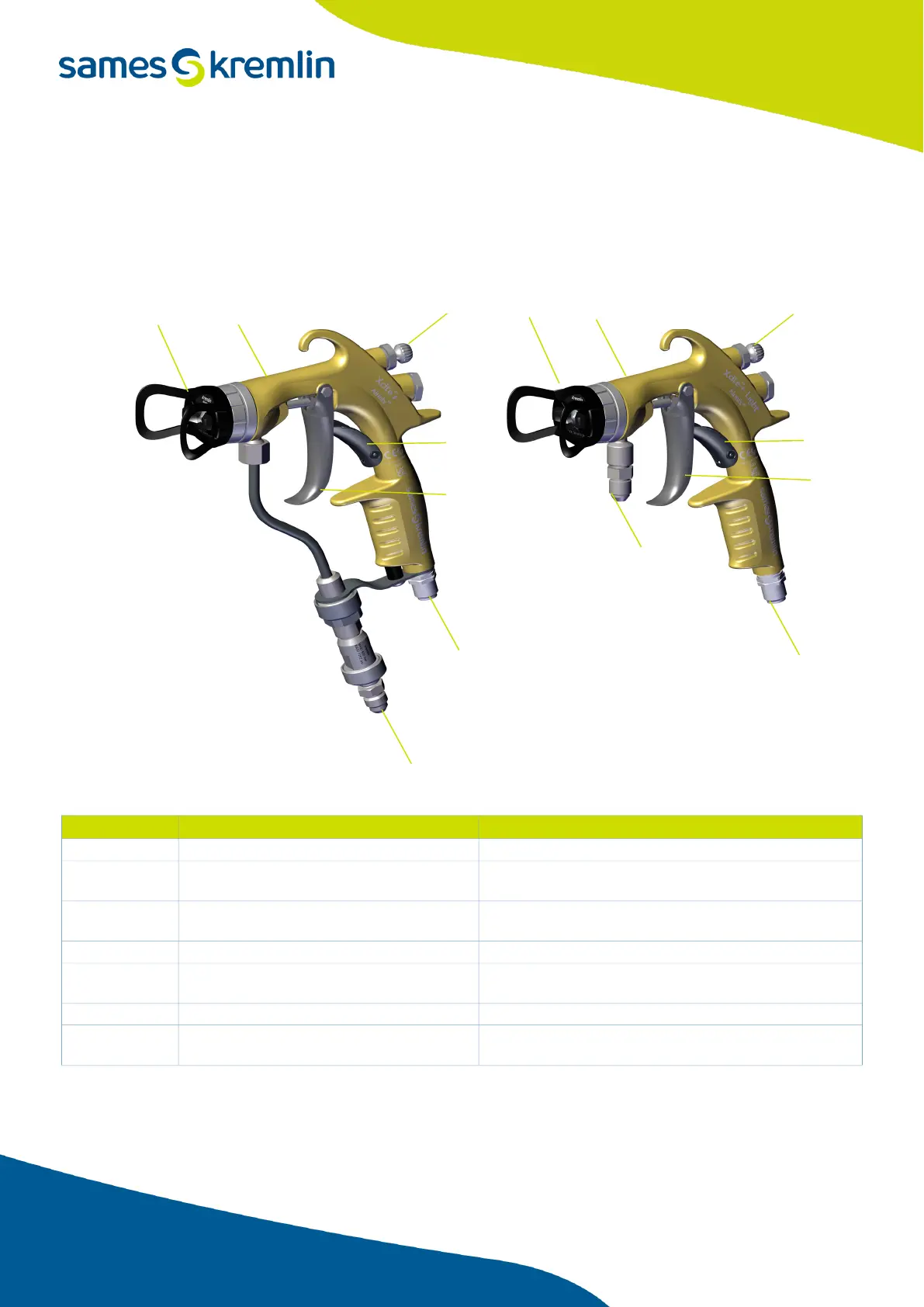

2.2. Function of the different components
Benchmarks Component Function
A Gun Equipment for the application materials such as paints.
B Spraying aircap Equipment that allows to adjust the pressure and a
material flow.
C Trigger Mechanical device that tilts under the action of the
operator on the trigger, releases the material.
D Safety lever Equipment to block the operating of the trigger.
E Air inlet fitting Equipment that allows to connect an hose in order to
supply air to the gun.
F Adjustment needle Equipment that allows to spray the material.
G Fluid inlet fitting Equipment that allows to connect an hose in order to
supply material to the gun.
B
C
A
A
E
B
C
D
D
E
G
G
F
F
Xcite
®
+
Xcite
®
