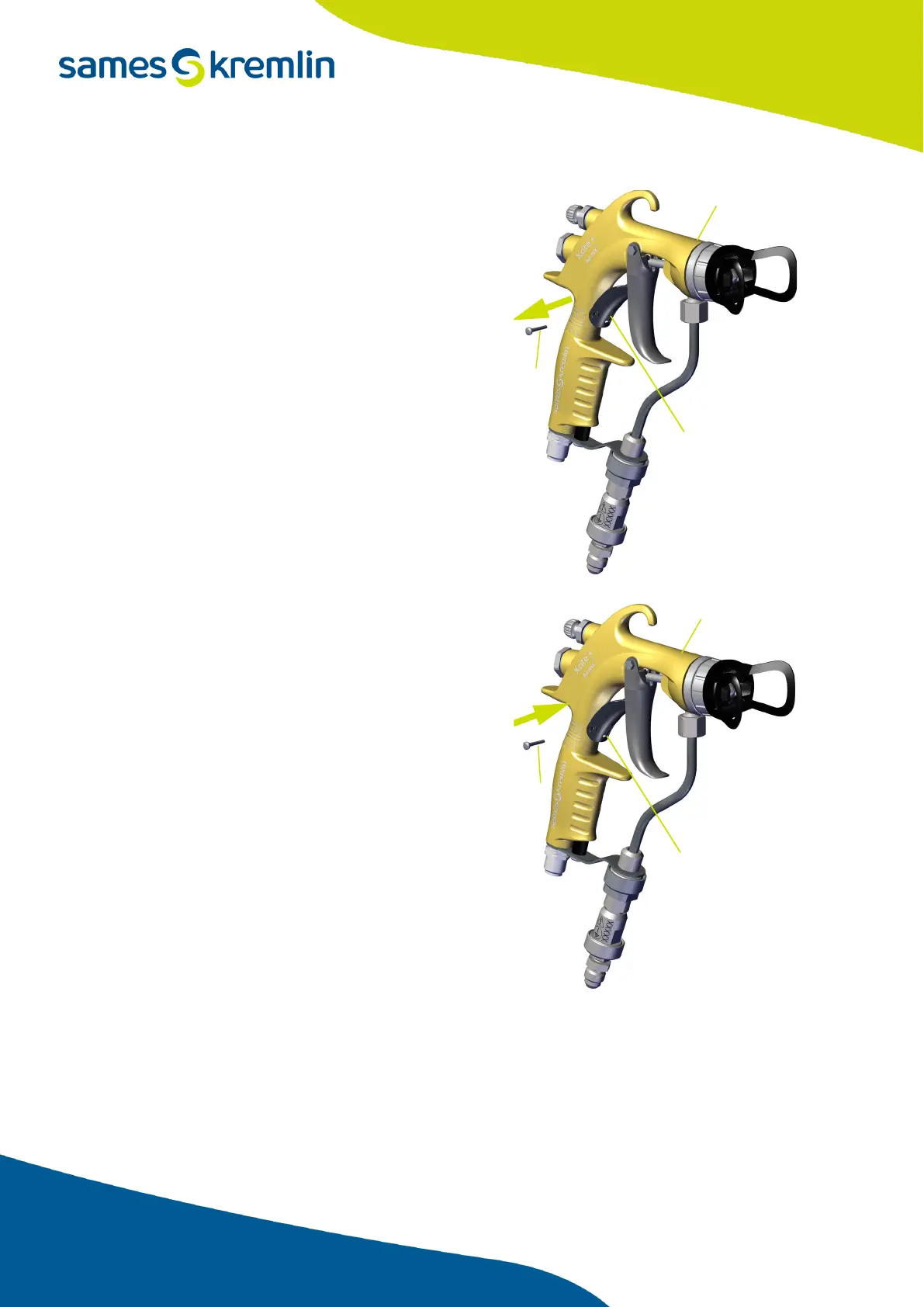

6.4.11. Procedure F1: Disassembly of the safety lever (5.5)
• Step 1:
Remove the pin (5.4) with a pin driver.
• Step 2:
Remove the safety lever (5.5) from the gun body (1).
6.4.12. Procedure F2: Reassembly of the safety lever (5.5)
• Step 1:
Place the safety lever (5.5) in the gun body (1).
• Step 2:
Insert the pin (5.4).
5.4
5.4
5.5
5.5
1
1
